ATS-56011-C4-R0

Active

Advanced Thermal Solutions Inc.

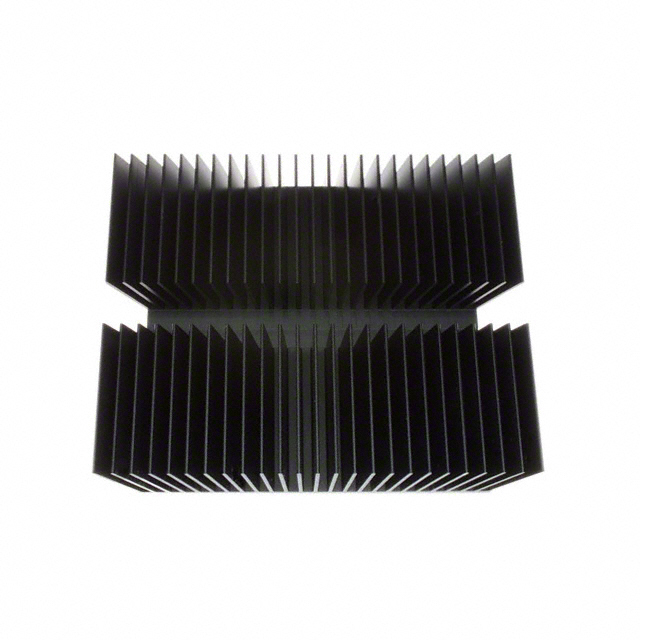

HEAT SINKS MAXIFLOW BGA ASIC COOLING HEAT SINK, HIGH PERFORMANCE, NO TIM, 57.5X57.5X12.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

ATS-56011-C4-R0

Active

Advanced Thermal Solutions Inc.

HEAT SINKS MAXIFLOW BGA ASIC COOLING HEAT SINK, HIGH PERFORMANCE, NO TIM, 57.5X57.5X12.5MM

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-56011-C4-R0

Attachment Method	Thermal Tape, Adhesive (Not Included)
Fin Height	12.5 mm
Fin Height	0.492 in
Length [x]	2.264 in
Length [x]	57.5 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	ASIC
Shape	Angled Fins, Square
Thermal Resistance @ Forced Air Flow	2.3 °C/W
Type	Top Mount
Width [x]	2.264 in
Width [x]	57.5 mm

BGA ASIC Cooling Series

Heat Sinks Heat Sink, maxiFLOW, Double-Sided Thermal Tape, Gold Anodized, T412, 42x42x16mm

Part	Fin Height [z]	Fin Height [z]	Shape	Package Cooled	Attachment Method	Thermal Resistance @ Forced Air Flow	Type	Material Finish	Width	Width	Material	Fin Height	Fin Height	Length [x]	Length [x]	Width [x]	Width [x]	Length	Width [y]	Width [y]	Length
Advanced Thermal Solutions Inc. ATS-56009-C3-R0	0.354 in	9 mm	Rectangular Angled Fins	ASIC	Thermal Tape Adhesive (Included)	4.8 °C/W 200 LFM	Top Mount	Black Anodized	30 mm	1.181 in	Aluminum
Advanced Thermal Solutions Inc. ATS-56011-C4-R0			Angled Fins Square	ASIC	Thermal Tape Adhesive (Not Included)	2.3 °C/W	Top Mount	Black Anodized			Aluminum	12.5 mm	0.492 in	2.264 in	57.5 mm	2.264 in	57.5 mm
Advanced Thermal Solutions Inc. ATS-56007-C3-R0			Angled Fins Square	ASIC	Thermal Tape Adhesive (Included)	2.4 °C/W 200 LFM	Top Mount	Black Anodized	45 mm		Aluminum	15 mm	0.59 "	1.772 "		1.772 in		45 mm
Advanced Thermal Solutions Inc. ATS-56004-C4-R0	0.197 in	5 mm	Rectangular Angled Fins	ASIC	Thermal Tape Adhesive (Not Included)	7.9 °C/W 200 LFM	Top Mount	Black Anodized	30 mm	1.181 in	Aluminum
Advanced Thermal Solutions Inc. ATS-56000-C4-R0	0.354 in	9 mm	Angled Fins Square	ASIC	Thermal Tape Adhesive (Not Included)	4 °C/W 200 LFM	Top Mount	Black Anodized	30 mm	1.181 in	Aluminum			1.181 in	30 mm
Advanced Thermal Solutions Inc. ATS-56001-C4-R0	0.354 in	9 mm	Angled Fins Square	ASIC	Thermal Tape Adhesive (Not Included)	5.3 °C/W 200 LFM	Top Mount	Black Anodized			Aluminum							19 mm	0.748 in	19 mm	0.748 in
Advanced Thermal Solutions Inc. ATS-56006-C4-R0	0.472 in	12 mm	Rectangular Angled Fins	ASIC	Thermal Tape Adhesive (Not Included)	3.9 °C/W 200 LFM	Top Mount	Black Anodized	45 mm		Aluminum			1.969 in	50 mm	1.772 in
Advanced Thermal Solutions Inc. ATS-56006-C3-R0	0.472 in	12 mm	Rectangular Angled Fins	ASIC	Thermal Tape Adhesive (Included)	3.9 °C/W 200 LFM	Top Mount	Black Anodized	45 mm		Aluminum			1.969 in	50 mm	1.772 in
Advanced Thermal Solutions Inc. ATS-56004-C1-R0	0.197 in	5 mm	Rectangular Angled Fins	ASIC	Thermal Tape Adhesive (Included)	7.9 °C/W 200 LFM	Top Mount	Black Anodized	30 mm	1.181 in	Aluminum
Advanced Thermal Solutions Inc. ATS-56010-C3-R0	0.335 in	8.5 mm	Rectangular Angled Fins	ASIC	Thermal Tape Adhesive (Included)	4 °C/W 200 LFM	Top Mount	Black Anodized	45 mm		Aluminum			1.969 in	50 mm	1.772 in
