M80-8282642

Active

Harwin Inc.

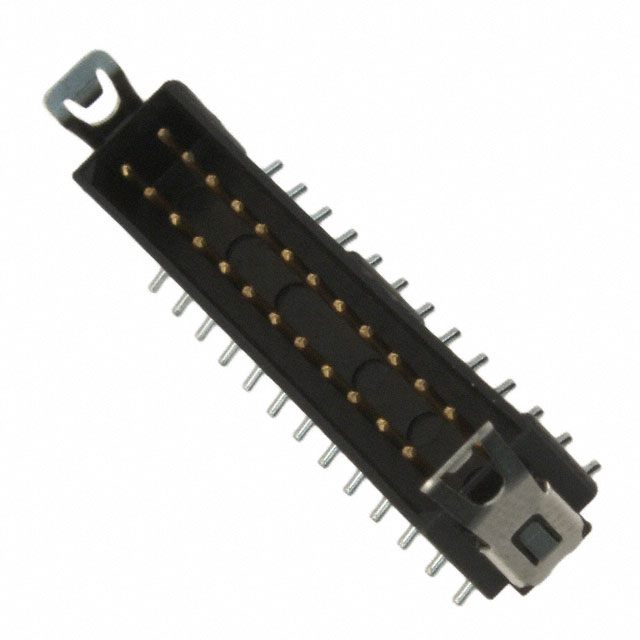

PIN HEADER, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 2 ROWS, 26 CONTACTS, SURFACE MOUNT

Deep-Dive with AI

DocumentsM80, M83 Series Spec Sheet Datasheet +6

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8282642

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Fastening Type	Latch Lock
Insulation Color	Black
Insulation Height	0.205 in
Insulation Height	5.2 mm
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	7.85 mm, 10.5 mm, 8.45 mm, 14.25 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-828 Series

Part	Mated Stacking Heights	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Fastening Type	Contact Type	Current Rating (Amps)	Connector Type	Number of Positions Loaded	Number of Rows	Insulation Height	Insulation Height	Mounting Type	Voltage Rating	Shrouding	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Insulation Color	Contact Finish - Post	Features	Contact Finish Thickness - Post
Harwin Inc. M80-8281045	7.93 mm 8.53 mm	UL94 V-0	29.5 Áin	0.75 Ám	10	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 VAC	Shrouded - 4 Wall	Board to Board Cable	29.5 µin	0.75 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Gold
Harwin Inc. M80-8281022P	7.93 mm 8.53 mm	UL94 V-0	29.5 Áin	0.75 Ám	10	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 VAC	Shrouded - 4 Wall	Board to Board Cable		0.3 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Tin-Lead	Pick and Place	12 µin
Harwin Inc. M80-8281242	7.85 mm 8.45 mm 10.5 mm 14.25 mm	UL94 V-0	29.5 Áin	0.75 Ám	12	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 V	Shrouded - 4 Wall	Board to Board Cable		3 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Tin		118.1 µin
Harwin Inc. M80-8280645	7.93 mm 8.53 mm	UL94 V-0	29.5 Áin	0.75 Ám	6	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 VAC	Shrouded - 4 Wall	Board to Board Cable	29.5 µin	0.75 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Gold
Harwin Inc. M80-8281042	7.85 mm 8.45 mm 10.5 mm 14.25 mm	UL94 V-0	29.5 Áin	0.75 Ám	10	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 V	Shrouded - 4 Wall	Board to Board Cable		3 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Tin		118.1 µin
Harwin Inc. M80-8281245	7.93 mm 8.53 mm	UL94 V-0	29.5 Áin	0.75 Ám	12	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 VAC	Shrouded - 4 Wall	Board to Board Cable	29.5 µin	0.75 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Gold
Harwin Inc. M80-8281022	7.85 mm 8.45 mm 10.5 mm 14.25 mm	UL94 V-0	29.5 Áin	0.75 Ám	10	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 V	Shrouded - 4 Wall	Board to Board Cable		3 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Tin-Lead		118.1 µin
Harwin Inc. M80-8282642	7.85 mm 8.45 mm 10.5 mm 14.25 mm	UL94 V-0	29.5 Áin	0.75 Ám	26	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 V	Shrouded - 4 Wall	Board to Board Cable		3 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Tin		118.1 µin
Harwin Inc. M80-8280642	7.85 mm 8.45 mm 10.5 mm 14.25 mm	UL94 V-0	29.5 Áin	0.75 Ám	6	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 V	Shrouded - 4 Wall	Board to Board Cable		3 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Tin		118.1 µin
Harwin Inc. M80-8283422	7.85 mm 8.45 mm 10.5 mm 14.25 mm	UL94 V-0	29.5 Áin	0.75 Ám	34	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 V	Shrouded - 4 Wall	Board to Board Cable		3 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Tin-Lead		118.1 µin
