M80-8281245 - M80-8280422

M80-8281245

Active
Harwin Inc.

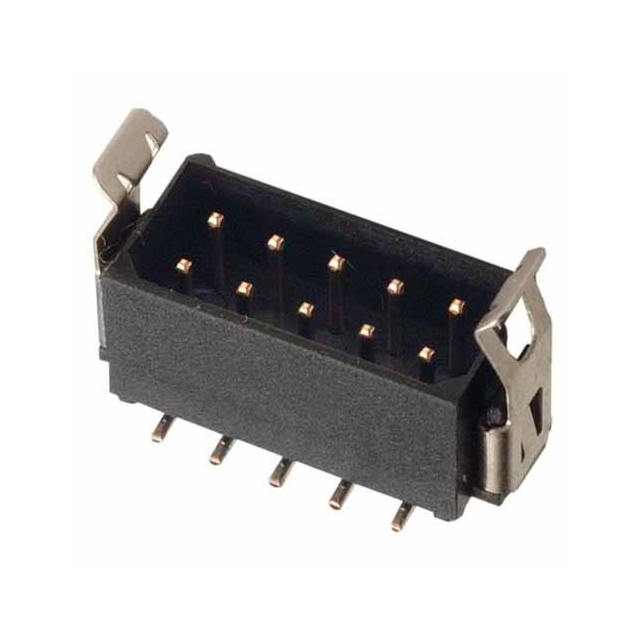

6+6 POS. MALE DIL VERTICAL SMT CONN. LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec SheetM80-001+2
M80-8281245 - M80-8280422

M80-8281245

Active
Harwin Inc.

6+6 POS. MALE DIL VERTICAL SMT CONN. LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80, M83 Series Spec SheetM80-001+2

Technical Specifications

Parameters and characteristics for this part

SpecificationM80-8281245
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thickness - Mating29.5 Áin
Contact Finish Thickness - Mating0.75 Ám
Contact Finish Thickness - Post29.5 µin
Contact Finish Thickness - Post0.75 µm
Contact MaterialPhosphor Bronze
Contact ShapeCircular
Contact TypeMale Pin
Current Rating (Amps)2.2 A
Fastening TypeLatch Lock
Insulation ColorBlack
Insulation Height0.205 in
Insulation Height5.2 mm
Insulation MaterialPolyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights7.93 mm, 8.53 mm
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount
Number of Positions12
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
Row Spacing - Mating0.079 in
Row Spacing - Mating2 mm
ShroudingShrouded - 4 Wall
StyleBoard to Board, Cable
TerminationSolder
Voltage Rating800 VAC

M80-828 Series

PartMated Stacking HeightsMaterial Flammability RatingContact Finish Thickness - MatingContact Finish Thickness - MatingNumber of PositionsContact Finish - MatingOperating Temperature [Min]Operating Temperature [Max]Insulation MaterialFastening TypeContact TypeCurrent Rating (Amps)Connector TypeNumber of Positions LoadedNumber of RowsInsulation HeightInsulation HeightMounting TypeVoltage RatingShroudingStyleContact Finish Thickness - PostContact Finish Thickness - PostContact MaterialRow Spacing - MatingRow Spacing - MatingContact ShapePitch - Mating [x]Pitch - Mating [x]TerminationInsulation ColorContact Finish - PostFeaturesContact Finish Thickness - Post
Harwin Inc.
M80-8281045
7.93 mm
8.53 mm
UL94 V-0
29.5 Áin
0.75 Ám
10
Gold
-55 °C
125 °C
Polyphenylene Sulfide (PPS)
Glass Filled
Latch Lock
Male Pin
2.2 A
Header
All
2
0.205 in
5.2 mm
Surface Mount
800 VAC
Shrouded - 4 Wall
Board to Board
Cable
29.5 µin
0.75 µm
Phosphor Bronze
0.079 in
2 mm
Circular
0.079 in
2 mm
Solder
Black
Gold
Harwin Inc.
M80-8281022P
7.93 mm
8.53 mm
UL94 V-0
29.5 Áin
0.75 Ám
10
Gold
-55 °C
125 °C
Polyphenylene Sulfide (PPS)
Glass Filled
Latch Lock
Male Pin
2.2 A
Header
All
2
0.205 in
5.2 mm
Surface Mount
800 VAC
Shrouded - 4 Wall
Board to Board
Cable
0.3 µm
Phosphor Bronze
0.079 in
2 mm
Circular
0.079 in
2 mm
Solder
Black
Tin-Lead
Pick and Place
12 µin
Harwin Inc.
M80-8281242
7.85 mm
8.45 mm
10.5 mm
14.25 mm
UL94 V-0
29.5 Áin
0.75 Ám
12
Gold
-55 °C
125 °C
Polyphenylene Sulfide (PPS)
Glass Filled
Latch Lock
Male Pin
2.2 A
Header
All
2
0.205 in
5.2 mm
Surface Mount
800 V
Shrouded - 4 Wall
Board to Board
Cable
3 µm
Phosphor Bronze
0.079 in
2 mm
Circular
0.079 in
2 mm
Solder
Black
Tin
118.1 µin
Harwin Inc.
M80-8280645
7.93 mm
8.53 mm
UL94 V-0
29.5 Áin
0.75 Ám
6
Gold
-55 °C
125 °C
Polyphenylene Sulfide (PPS)
Glass Filled
Latch Lock
Male Pin
2.2 A
Header
All
2
0.205 in
5.2 mm
Surface Mount
800 VAC
Shrouded - 4 Wall
Board to Board
Cable
29.5 µin
0.75 µm
Phosphor Bronze
0.079 in
2 mm
Circular
0.079 in
2 mm
Solder
Black
Gold
Harwin Inc.
M80-8281042
7.85 mm
8.45 mm
10.5 mm
14.25 mm
UL94 V-0
29.5 Áin
0.75 Ám
10
Gold
-55 °C
125 °C
Polyphenylene Sulfide (PPS)
Glass Filled
Latch Lock
Male Pin
2.2 A
Header
All
2
0.205 in
5.2 mm
Surface Mount
800 V
Shrouded - 4 Wall
Board to Board
Cable
3 µm
Phosphor Bronze
0.079 in
2 mm
Circular
0.079 in
2 mm
Solder
Black
Tin
118.1 µin
Harwin Inc.
M80-8281245
7.93 mm
8.53 mm
UL94 V-0
29.5 Áin
0.75 Ám
12
Gold
-55 °C
125 °C
Polyphenylene Sulfide (PPS)
Glass Filled
Latch Lock
Male Pin
2.2 A
Header
All
2
0.205 in
5.2 mm
Surface Mount
800 VAC
Shrouded - 4 Wall
Board to Board
Cable
29.5 µin
0.75 µm
Phosphor Bronze
0.079 in
2 mm
Circular
0.079 in
2 mm
Solder
Black
Gold
Harwin Inc.
M80-8281022
7.85 mm
8.45 mm
10.5 mm
14.25 mm
UL94 V-0
29.5 Áin
0.75 Ám
10
Gold
-55 °C
125 °C
Polyphenylene Sulfide (PPS)
Glass Filled
Latch Lock
Male Pin
2.2 A
Header
All
2
0.205 in
5.2 mm
Surface Mount
800 V
Shrouded - 4 Wall
Board to Board
Cable
3 µm
Phosphor Bronze
0.079 in
2 mm
Circular
0.079 in
2 mm
Solder
Black
Tin-Lead
118.1 µin
Harwin Inc.
M80-8282642
7.85 mm
8.45 mm
10.5 mm
14.25 mm
UL94 V-0
29.5 Áin
0.75 Ám
26
Gold
-55 °C
125 °C
Polyphenylene Sulfide (PPS)
Glass Filled
Latch Lock
Male Pin
2.2 A
Header
All
2
0.205 in
5.2 mm
Surface Mount
800 V
Shrouded - 4 Wall
Board to Board
Cable
3 µm
Phosphor Bronze
0.079 in
2 mm
Circular
0.079 in
2 mm
Solder
Black
Tin
118.1 µin
Harwin Inc.
M80-8280642
7.85 mm
8.45 mm
10.5 mm
14.25 mm
UL94 V-0
29.5 Áin
0.75 Ám
6
Gold
-55 °C
125 °C
Polyphenylene Sulfide (PPS)
Glass Filled
Latch Lock
Male Pin
2.2 A
Header
All
2
0.205 in
5.2 mm
Surface Mount
800 V
Shrouded - 4 Wall
Board to Board
Cable
3 µm
Phosphor Bronze
0.079 in
2 mm
Circular
0.079 in
2 mm
Solder
Black
Tin
118.1 µin
Harwin Inc.
M80-8283422
7.85 mm
8.45 mm
10.5 mm
14.25 mm
UL94 V-0
29.5 Áin
0.75 Ám
34
Gold
-55 °C
125 °C
Polyphenylene Sulfide (PPS)
Glass Filled
Latch Lock
Male Pin
2.2 A
Header
All
2
0.205 in
5.2 mm
Surface Mount
800 V
Shrouded - 4 Wall
Board to Board
Cable
3 µm
Phosphor Bronze
0.079 in
2 mm
Circular
0.079 in
2 mm
Solder
Black
Tin-Lead
118.1 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1024$ 3.49
NewarkEach 1000$ 3.92
2500$ 3.53

Description

General part information

M80-828 Series

Connector Header Surface Mount 12 position 0.079" (2.00mm)
