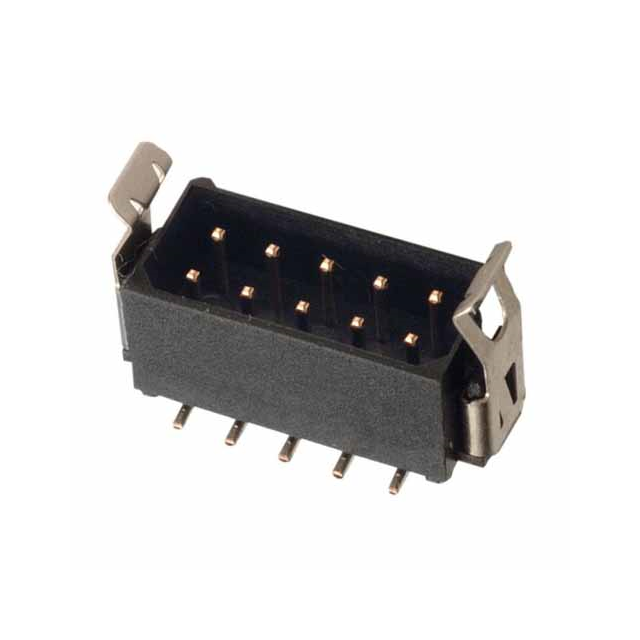

M80-8281045

Active

Harwin Inc.

5+5 POS. MALE DIL VERTICAL SMT CONN. LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-001 M80-0110001 +2

M80-8281045

Active

Harwin Inc.

5+5 POS. MALE DIL VERTICAL SMT CONN. LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80-001 M80-0110001 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8281045

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	29.5 µin
Contact Finish Thickness - Post	0.75 µm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Fastening Type	Latch Lock
Insulation Color	Black
Insulation Height	0.205 in
Insulation Height	5.2 mm
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	7.93 mm, 8.53 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 VAC

M80-828 Series

Part	Mated Stacking Heights	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Fastening Type	Contact Type	Current Rating (Amps)	Connector Type	Number of Positions Loaded	Number of Rows	Insulation Height	Insulation Height	Mounting Type	Voltage Rating	Shrouding	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Insulation Color	Contact Finish - Post	Features	Contact Finish Thickness - Post
Harwin Inc. M80-8281045	7.93 mm 8.53 mm	UL94 V-0	29.5 Áin	0.75 Ám	10	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 VAC	Shrouded - 4 Wall	Board to Board Cable	29.5 µin	0.75 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Gold
Harwin Inc. M80-8281022P	7.93 mm 8.53 mm	UL94 V-0	29.5 Áin	0.75 Ám	10	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 VAC	Shrouded - 4 Wall	Board to Board Cable		0.3 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Tin-Lead	Pick and Place	12 µin
Harwin Inc. M80-8281242	7.85 mm 8.45 mm 10.5 mm 14.25 mm	UL94 V-0	29.5 Áin	0.75 Ám	12	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 V	Shrouded - 4 Wall	Board to Board Cable		3 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Tin		118.1 µin
Harwin Inc. M80-8280645	7.93 mm 8.53 mm	UL94 V-0	29.5 Áin	0.75 Ám	6	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 VAC	Shrouded - 4 Wall	Board to Board Cable	29.5 µin	0.75 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Gold
Harwin Inc. M80-8281042	7.85 mm 8.45 mm 10.5 mm 14.25 mm	UL94 V-0	29.5 Áin	0.75 Ám	10	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 V	Shrouded - 4 Wall	Board to Board Cable		3 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Tin		118.1 µin
Harwin Inc. M80-8281245	7.93 mm 8.53 mm	UL94 V-0	29.5 Áin	0.75 Ám	12	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 VAC	Shrouded - 4 Wall	Board to Board Cable	29.5 µin	0.75 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Gold
Harwin Inc. M80-8281022	7.85 mm 8.45 mm 10.5 mm 14.25 mm	UL94 V-0	29.5 Áin	0.75 Ám	10	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 V	Shrouded - 4 Wall	Board to Board Cable		3 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Tin-Lead		118.1 µin
Harwin Inc. M80-8282642	7.85 mm 8.45 mm 10.5 mm 14.25 mm	UL94 V-0	29.5 Áin	0.75 Ám	26	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 V	Shrouded - 4 Wall	Board to Board Cable		3 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Tin		118.1 µin
Harwin Inc. M80-8280642	7.85 mm 8.45 mm 10.5 mm 14.25 mm	UL94 V-0	29.5 Áin	0.75 Ám	6	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 V	Shrouded - 4 Wall	Board to Board Cable		3 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Tin		118.1 µin
Harwin Inc. M80-8283422	7.85 mm 8.45 mm 10.5 mm 14.25 mm	UL94 V-0	29.5 Áin	0.75 Ám	34	Gold	-55 °C	125 °C	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	Male Pin	2.2 A	Header	All	2	0.205 in	5.2 mm	Surface Mount	800 V	Shrouded - 4 Wall	Board to Board Cable		3 µm	Phosphor Bronze	0.079 in	2 mm	Circular	0.079 in	2 mm	Solder	Black	Tin-Lead		118.1 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1008	$ 2.97
Newark	Each	1000	$ 3.33
		2500	$ 3.00

Description

General part information

M80-828 Series

Connector Header Surface Mount 10 position 0.079" (2.00mm)

Documents

Technical documentation and resources

M80-001

M80-0110001

Datasheet

M80, M83 Series Spec Sheet

Datasheet
