M80-8281242
ActiveHarwin Inc.

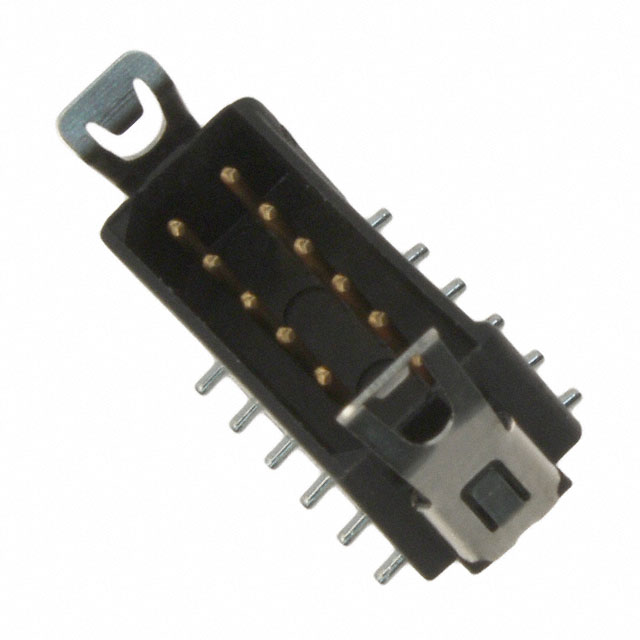

PIN HEADER, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 2 ROWS, 12 CONTACTS, SURFACE MOUNT STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
M80-8281242
ActiveHarwin Inc.
PIN HEADER, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 2 ROWS, 12 CONTACTS, SURFACE MOUNT STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-8281242 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 29.5 Áin |
| Contact Finish Thickness - Mating | 0.75 Ám |
| Contact Finish Thickness - Post | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.2 A |
| Fastening Type | Latch Lock |
| Insulation Color | Black |
| Insulation Height | 0.205 in |
| Insulation Height | 5.2 mm |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mated Stacking Heights | 7.85 mm, 10.5 mm, 8.45 mm, 14.25 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 800 V |
M80-828 Series
| Part | Mated Stacking Heights | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Fastening Type | Contact Type | Current Rating (Amps) | Connector Type | Number of Positions Loaded | Number of Rows | Insulation Height | Insulation Height | Mounting Type | Voltage Rating | Shrouding | Style | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Row Spacing - Mating | Row Spacing - Mating | Contact Shape | Pitch - Mating [x] | Pitch - Mating [x] | Termination | Insulation Color | Contact Finish - Post | Features | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 7.93 mm 8.53 mm | UL94 V-0 | 29.5 Áin | 0.75 Ám | 10 | Gold | -55 °C | 125 °C | Polyphenylene Sulfide (PPS) Glass Filled | Latch Lock | Male Pin | 2.2 A | Header | All | 2 | 0.205 in | 5.2 mm | Surface Mount | 800 VAC | Shrouded - 4 Wall | Board to Board Cable | 29.5 µin | 0.75 µm | Phosphor Bronze | 0.079 in | 2 mm | Circular | 0.079 in | 2 mm | Solder | Black | Gold | ||
Harwin Inc. | 7.93 mm 8.53 mm | UL94 V-0 | 29.5 Áin | 0.75 Ám | 10 | Gold | -55 °C | 125 °C | Polyphenylene Sulfide (PPS) Glass Filled | Latch Lock | Male Pin | 2.2 A | Header | All | 2 | 0.205 in | 5.2 mm | Surface Mount | 800 VAC | Shrouded - 4 Wall | Board to Board Cable | 0.3 µm | Phosphor Bronze | 0.079 in | 2 mm | Circular | 0.079 in | 2 mm | Solder | Black | Tin-Lead | Pick and Place | 12 µin | |
Harwin Inc. | 7.85 mm 8.45 mm 10.5 mm 14.25 mm | UL94 V-0 | 29.5 Áin | 0.75 Ám | 12 | Gold | -55 °C | 125 °C | Polyphenylene Sulfide (PPS) Glass Filled | Latch Lock | Male Pin | 2.2 A | Header | All | 2 | 0.205 in | 5.2 mm | Surface Mount | 800 V | Shrouded - 4 Wall | Board to Board Cable | 3 µm | Phosphor Bronze | 0.079 in | 2 mm | Circular | 0.079 in | 2 mm | Solder | Black | Tin | 118.1 µin | ||
Harwin Inc. | 7.93 mm 8.53 mm | UL94 V-0 | 29.5 Áin | 0.75 Ám | 6 | Gold | -55 °C | 125 °C | Polyphenylene Sulfide (PPS) Glass Filled | Latch Lock | Male Pin | 2.2 A | Header | All | 2 | 0.205 in | 5.2 mm | Surface Mount | 800 VAC | Shrouded - 4 Wall | Board to Board Cable | 29.5 µin | 0.75 µm | Phosphor Bronze | 0.079 in | 2 mm | Circular | 0.079 in | 2 mm | Solder | Black | Gold | ||
Harwin Inc. | 7.85 mm 8.45 mm 10.5 mm 14.25 mm | UL94 V-0 | 29.5 Áin | 0.75 Ám | 10 | Gold | -55 °C | 125 °C | Polyphenylene Sulfide (PPS) Glass Filled | Latch Lock | Male Pin | 2.2 A | Header | All | 2 | 0.205 in | 5.2 mm | Surface Mount | 800 V | Shrouded - 4 Wall | Board to Board Cable | 3 µm | Phosphor Bronze | 0.079 in | 2 mm | Circular | 0.079 in | 2 mm | Solder | Black | Tin | 118.1 µin | ||
Harwin Inc. | 7.93 mm 8.53 mm | UL94 V-0 | 29.5 Áin | 0.75 Ám | 12 | Gold | -55 °C | 125 °C | Polyphenylene Sulfide (PPS) Glass Filled | Latch Lock | Male Pin | 2.2 A | Header | All | 2 | 0.205 in | 5.2 mm | Surface Mount | 800 VAC | Shrouded - 4 Wall | Board to Board Cable | 29.5 µin | 0.75 µm | Phosphor Bronze | 0.079 in | 2 mm | Circular | 0.079 in | 2 mm | Solder | Black | Gold | ||
Harwin Inc. | 7.85 mm 8.45 mm 10.5 mm 14.25 mm | UL94 V-0 | 29.5 Áin | 0.75 Ám | 10 | Gold | -55 °C | 125 °C | Polyphenylene Sulfide (PPS) Glass Filled | Latch Lock | Male Pin | 2.2 A | Header | All | 2 | 0.205 in | 5.2 mm | Surface Mount | 800 V | Shrouded - 4 Wall | Board to Board Cable | 3 µm | Phosphor Bronze | 0.079 in | 2 mm | Circular | 0.079 in | 2 mm | Solder | Black | Tin-Lead | 118.1 µin | ||
Harwin Inc. | 7.85 mm 8.45 mm 10.5 mm 14.25 mm | UL94 V-0 | 29.5 Áin | 0.75 Ám | 26 | Gold | -55 °C | 125 °C | Polyphenylene Sulfide (PPS) Glass Filled | Latch Lock | Male Pin | 2.2 A | Header | All | 2 | 0.205 in | 5.2 mm | Surface Mount | 800 V | Shrouded - 4 Wall | Board to Board Cable | 3 µm | Phosphor Bronze | 0.079 in | 2 mm | Circular | 0.079 in | 2 mm | Solder | Black | Tin | 118.1 µin | ||
Harwin Inc. | 7.85 mm 8.45 mm 10.5 mm 14.25 mm | UL94 V-0 | 29.5 Áin | 0.75 Ám | 6 | Gold | -55 °C | 125 °C | Polyphenylene Sulfide (PPS) Glass Filled | Latch Lock | Male Pin | 2.2 A | Header | All | 2 | 0.205 in | 5.2 mm | Surface Mount | 800 V | Shrouded - 4 Wall | Board to Board Cable | 3 µm | Phosphor Bronze | 0.079 in | 2 mm | Circular | 0.079 in | 2 mm | Solder | Black | Tin | 118.1 µin | ||
Harwin Inc. | 7.85 mm 8.45 mm 10.5 mm 14.25 mm | UL94 V-0 | 29.5 Áin | 0.75 Ám | 34 | Gold | -55 °C | 125 °C | Polyphenylene Sulfide (PPS) Glass Filled | Latch Lock | Male Pin | 2.2 A | Header | All | 2 | 0.205 in | 5.2 mm | Surface Mount | 800 V | Shrouded - 4 Wall | Board to Board Cable | 3 µm | Phosphor Bronze | 0.079 in | 2 mm | Circular | 0.079 in | 2 mm | Solder | Black | Tin-Lead | 118.1 µin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-828 Series
Connector Header Surface Mount 12 position 0.079" (2.00mm)
