170823-3

Active

TE Connectivity Raychem Cable Protection

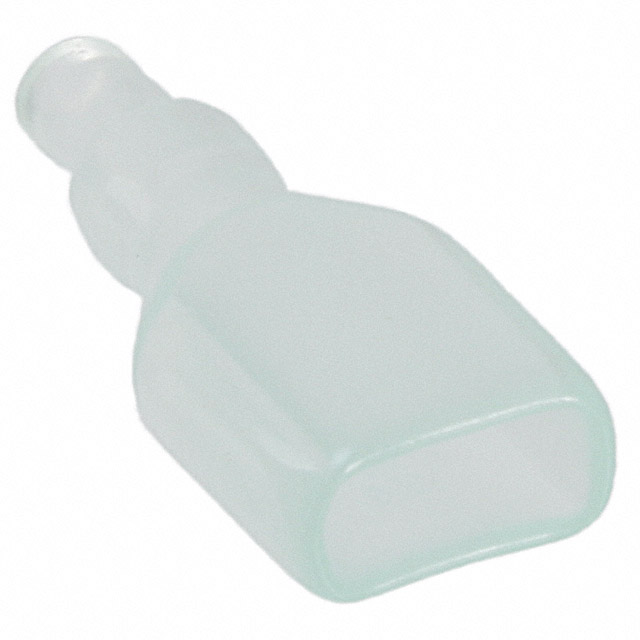

CONN ACCESSORIES, INSULATION SLEEVE SOFT VINYL CHLORIDE CLEAR LOOSE PIECE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FASTON Housings +1

170823-3

Active

TE Connectivity Raychem Cable Protection

CONN ACCESSORIES, INSULATION SLEEVE SOFT VINYL CHLORIDE CLEAR LOOSE PIECE

Deep-Dive with AI

DocumentsDatasheet FASTON Housings +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	170823-3

Color	Clear
For Use With/Related Products	0.25 in
For Use With/Related Products	Quick Connects
For Use With/Related Products	6.35 mm
Gender	Female, Receptacle
Material	Vinyl Chloride
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Style	Sleeve
Terminal Size	6.35 mm
Terminal Size	0.25 in
Terminal Type	Disconnect, Quick Connect

FASTON 250 Series

Terminals REC .250 SER FASTON

...

Part	Contact Finish	Contact Material	Insulation	Length - Overall [x]	Length - Overall [x]	Tab Length	Tab Length	Mounting Type	Termination	Terminal Type	Tab Width	Tab Width	Gender	Tab Thickness	Tab Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter	Tab Length	Features
TE Connectivity Raychem Cable Protection 1217154-1	Tin	Brass	Non-Insulated	18.8 mm	0.74 in	7.92 mm	0.312 in	Through Hole	Solder	Standard	6.35 mm	0.25 in	Male	0.032 in	0.81 mm
TE Connectivity Raychem Cable Protection 62813-2	Tin	Brass	Non-Insulated					Free Hanging (In-Line) Right Angle	Crimp	Angled - 90° Flag	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	22 AWG	17.5 AWG	0.06 in	0.1 in	2.54 mm	1.52 mm
TE Connectivity Raychem Cable Protection 62057-5	Tin	Phosphor Bronze	Non-Insulated			7.75 mm	0.305 in	Free Hanging (In-Line) Right Angle	Crimp	Angled - 90° Flag	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	12 AWG	10 AWG
TE Connectivity Raychem Cable Protection 63755-1	Tin	Brass	Non-Insulated	15.8 mm	0.622 in	11.48 mm	0.452 in	Through Hole	Solder	Standard	6.35 mm	0.25 in	Male	0.032 in	0.81 mm
TE Connectivity Raychem Cable Protection 63365-2	Tin	Brass	Non-Insulated			7.75 mm	0.305 in	Free Hanging (In-Line)	Crimp	Standard	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	14 AWG	10 AWG	0.15 "	0.2 "		3.81 mm	5.08 mm
TE Connectivity Raychem Cable Protection 160739-1		Brass	Non-Insulated	20.09 mm	0.791 in		7.7 mm	Free Hanging (In-Line)	Crimp	Stacked	6.35 mm	0.25 in	Female Male	0.032 in	0.81 mm	18 AWG	14 AWG	0.118 in	0.169 in				3 mm 4.29 mm	0.303 in
TE Connectivity Raychem Cable Protection 140794-2								Free Hanging (In-Line)	Crimp	Standard	6.35 mm	0.25 in	Female
TE Connectivity Raychem Cable Protection 41290		Brass	Non-Insulated					Board Chassis	Rivet Screw Stud	Angled - 90°	6.35 mm	0.25 in	Male	0.032 in	0.81 mm										2 Tabs
TE Connectivity Raychem Cable Protection 1-280079-2	Tin	Brass	Non-Insulated	19.89 mm	0.783 in		7.7 mm	Free Hanging (In-Line)	Crimp	Stacked	6.35 mm	0.25 in	Female Male	0.032 in	0.81 mm	18 AWG	13 AWG	0.118 in	0.169 in				3 mm 4.29 mm	0.303 in
TE Connectivity Raychem Cable Protection 62057-8	Tin	Phosphor Bronze	Non-Insulated			7.75 mm	0.305 in	Free Hanging (In-Line) Right Angle	Crimp	Angled - 90° Flag	6.35 mm	0.25 in	Female	0.032 in	0.81 mm	12 AWG	10 AWG
