NHD-C0216CIZ-FN-FBW-3V

Active

Newhaven Display Intl

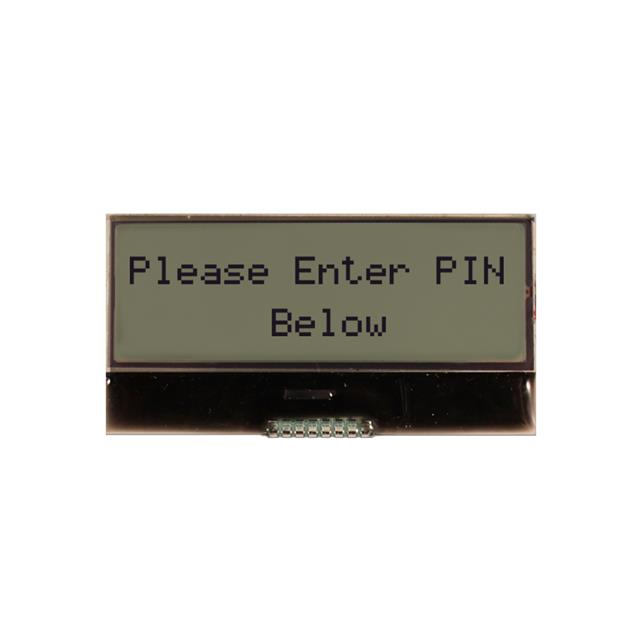

LCD MOD 32DIG 16X2 TRANSFLECTIVE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLCD Safe Handling Procedure LCD Solvent Precautions +1

NHD-C0216CIZ-FN-FBW-3V

Active

Newhaven Display Intl

LCD MOD 32DIG 16X2 TRANSFLECTIVE

Deep-Dive with AI

DocumentsLCD Safe Handling Procedure LCD Solvent Precautions +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 8.60

Description

General part information

NHD-C0216 Series

Character Display Module Transflective 5 x 8 Dots FSTN - Film Super-Twisted Nematic Without Backlight I2C 49.70mm x 25.30mm x 2.10mm

Documents

Technical documentation and resources

LCD Safe Handling Procedure

LCD Solvent Precautions

Datasheet

Specification	NHD-C0216CIZ-FN-FBW-3V	NHD-C0216 Series

Background Color	Gray	Gray, Blue, White
Backlight	Without Backlight	Without Backlight, LED - White
Character Format [x]	5 Dots	5 Dots
Character Format [y]	8 Dots	8 Dots
Character Size	-	1.82 mm
Character Size	-	4.13 mm
Character Size [custom]	2.21 mm	2.21 mm
Character Size [custom]	4.68 mm	4.68 mm
Controller Type	AiP31032	ST-7032, NT-7605, AiP31032
Display Format [x]	16	16
Display Format [y]	2	2
Display Mode	Transflective	Transflective, Transmissive
Display Type	FSTN - Film Super-Twisted Nematic	STN - Super-Twisted Nematic, FSTN - Film Super-Twisted Nematic
Dot Size [x]	0.41 mm	0.34 - 0.41 mm
Dot Size [y]	0.55 mm	0.49 - 0.55 mm
Interface	I2C	Parallel, Serial, I2C
Number of Characters	32	32
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline L x W x H [x]	49.7 mm	41.4 - 56 mm
Outline L x W x H [y]	25.3 mm	24.3 - 25.3 mm
Outline L x W x H [z]	2.1 mm	2 - 5.5 mm
Text Color	Black	Blue, White, Black
Viewing Area [x]	45.7 mm	37.6 - 45.7 mm
Viewing Area [y]	14.3 mm	12.8 - 14.3 mm
Voltage - Supply [Max]	3.3 V	3.3 - 5.5 V
Voltage - Supply [Min]	2.7 V	2.7 - 4.7 V

Part

Number of Characters

Operating Temperature [Min]

Operating Temperature [Max]

Text Color

Backlight

Display Format [y]

Display Format [x]

Viewing Area [y]

Viewing Area [x]

Dot Size [y]

Dot Size [x]

Background Color

Character Format [y]

Character Format [x]

Display Type

Interface

Controller Type

Character Size [custom]

Voltage - Supply [Min]

Voltage - Supply [Max]

Display Mode

Outline L x W x H [z]

Outline L x W x H [x]

Outline L x W x H [y]

Character Size [y]

Character Size [z]

Newhaven Display Intl

NHD-C0216CU-FN-GBW-3V

-20 C

70 °C

Blue

Without Backlight

14.3 mm

45.7 mm

0.55 mm

0.41 mm

Gray

8 Dots

5 Dots

STN - Super-Twisted Nematic

Parallel

ST-7032

2.21 mm

4.68 mm

2.7 V

5.5 V

Transflective

2 mm

49.7 mm

25.3 mm

Newhaven Display Intl

NHD-C0216AZ-FSW-GBW

-20 C

70 °C

Blue

LED - White

14.3 mm

45.7 mm

0.55 mm

0.41 mm

Gray

8 Dots

5 Dots

STN - Super-Twisted Nematic

Parallel

NT-7605

2.21 mm

4.68 mm

4.7 V

5.5 V

Transflective

Newhaven Display Intl

NHD-C0216CZ-NSW-BBW-3V3

-20 C

70 °C

White

LED - White

12.8 mm

37.6 mm

0.49 mm

0.34 mm

Blue

8 Dots

5 Dots

STN - Super-Twisted Nematic

Serial

ST-7032

2.7 V

4.5 V

Transmissive

4 mm

41.4 mm

24.3 mm

1.82 mm

4.13 mm

Newhaven Display Intl

NHD-C0216AZ-FN-GBW

-20 C

70 °C

Blue

Without Backlight

14.3 mm

45.7 mm

0.55 mm

0.41 mm

Gray

8 Dots

5 Dots

STN - Super-Twisted Nematic

Parallel

NT-7605

2.21 mm

4.68 mm

4.7 V

5.5 V

Transflective

2.1 mm

49.7 mm

25.3 mm

Newhaven Display Intl

NHD-C0216CZ-FSW-FBW-3V3

-20 C

70 °C

Black

LED - White

12.8 mm

37.6 mm

0.49 mm

0.34 mm

White

8 Dots

5 Dots

FSTN - Film Super-Twisted Nematic

Serial

ST-7032

2.7 V

4.5 V

Transflective

4 mm

41.4 mm

24.3 mm

1.82 mm

4.13 mm

Newhaven Display Intl

NHD-C0216CIZ-FSW-FBW-3V3

-20 C

70 °C

Black

LED - White

14.3 mm

45.7 mm

0.55 mm

0.41 mm

White

8 Dots

5 Dots

FSTN - Film Super-Twisted Nematic

I2C

AiP31032

2.21 mm

4.68 mm

2.7 V

3.3 V

Transflective

5.5 mm

56 mm

25.3 mm

Newhaven Display Intl

NHD-C0216CIZ-FN-FBW-3V

-20 C

70 °C

Black

Without Backlight

14.3 mm

45.7 mm

0.55 mm

0.41 mm

Gray

8 Dots

5 Dots

FSTN - Film Super-Twisted Nematic

I2C

AiP31032

2.21 mm

4.68 mm

2.7 V

3.3 V

Transflective

2.1 mm

49.7 mm

25.3 mm

Newhaven Display Intl

NHD-C0216CU-FSW-GBW-3V3

-20 C

70 °C

Blue

LED - White

14.3 mm

45.7 mm

0.55 mm

0.41 mm

White

8 Dots

5 Dots

STN - Super-Twisted Nematic

Parallel

ST-7032

2.21 mm

4.68 mm

2.7 V

5.5 V

Transflective

5.5 mm

56 mm

25.3 mm

Part	Number of Characters	Operating Temperature [Min]	Operating Temperature [Max]	Text Color	Backlight	Display Format [y]	Display Format [x]	Viewing Area [y]	Viewing Area [x]	Dot Size [y]	Dot Size [x]	Background Color	Character Format [y]	Character Format [x]	Display Type	Interface	Controller Type	Character Size [custom]	Character Size [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Mode	Outline L x W x H [z]	Outline L x W x H [x]	Outline L x W x H [y]	Character Size [y]	Character Size [z]
Newhaven Display Intl NHD-C0216CU-FN-GBW-3V	32	-20 C	70 °C	Blue	Without Backlight	2	16	14.3 mm	45.7 mm	0.55 mm	0.41 mm	Gray	8 Dots	5 Dots	STN - Super-Twisted Nematic	Parallel	ST-7032	2.21 mm	4.68 mm	2.7 V	5.5 V	Transflective	2 mm	49.7 mm	25.3 mm
Newhaven Display Intl NHD-C0216AZ-FSW-GBW	32	-20 C	70 °C	Blue	LED - White	2	16	14.3 mm	45.7 mm	0.55 mm	0.41 mm	Gray	8 Dots	5 Dots	STN - Super-Twisted Nematic	Parallel	NT-7605	2.21 mm	4.68 mm	4.7 V	5.5 V	Transflective
Newhaven Display Intl NHD-C0216CZ-NSW-BBW-3V3	32	-20 C	70 °C	White	LED - White	2	16	12.8 mm	37.6 mm	0.49 mm	0.34 mm	Blue	8 Dots	5 Dots	STN - Super-Twisted Nematic	Serial	ST-7032			2.7 V	4.5 V	Transmissive	4 mm	41.4 mm	24.3 mm	1.82 mm	4.13 mm
Newhaven Display Intl NHD-C0216AZ-FN-GBW	32	-20 C	70 °C	Blue	Without Backlight	2	16	14.3 mm	45.7 mm	0.55 mm	0.41 mm	Gray	8 Dots	5 Dots	STN - Super-Twisted Nematic	Parallel	NT-7605	2.21 mm	4.68 mm	4.7 V	5.5 V	Transflective	2.1 mm	49.7 mm	25.3 mm
Newhaven Display Intl NHD-C0216CZ-FSW-FBW-3V3	32	-20 C	70 °C	Black	LED - White	2	16	12.8 mm	37.6 mm	0.49 mm	0.34 mm	White	8 Dots	5 Dots	FSTN - Film Super-Twisted Nematic	Serial	ST-7032			2.7 V	4.5 V	Transflective	4 mm	41.4 mm	24.3 mm	1.82 mm	4.13 mm
Newhaven Display Intl NHD-C0216CIZ-FSW-FBW-3V3	32	-20 C	70 °C	Black	LED - White	2	16	14.3 mm	45.7 mm	0.55 mm	0.41 mm	White	8 Dots	5 Dots	FSTN - Film Super-Twisted Nematic	I2C	AiP31032	2.21 mm	4.68 mm	2.7 V	3.3 V	Transflective	5.5 mm	56 mm	25.3 mm
Newhaven Display Intl NHD-C0216CIZ-FN-FBW-3V	32	-20 C	70 °C	Black	Without Backlight	2	16	14.3 mm	45.7 mm	0.55 mm	0.41 mm	Gray	8 Dots	5 Dots	FSTN - Film Super-Twisted Nematic	I2C	AiP31032	2.21 mm	4.68 mm	2.7 V	3.3 V	Transflective	2.1 mm	49.7 mm	25.3 mm
Newhaven Display Intl NHD-C0216CU-FSW-GBW-3V3	32	-20 C	70 °C	Blue	LED - White	2	16	14.3 mm	45.7 mm	0.55 mm	0.41 mm	White	8 Dots	5 Dots	STN - Super-Twisted Nematic	Parallel	ST-7032	2.21 mm	4.68 mm	2.7 V	5.5 V	Transflective	5.5 mm	56 mm	25.3 mm
