NHD-C0216CIZ-FSW-FBW-3V3

Active

Newhaven Display Intl

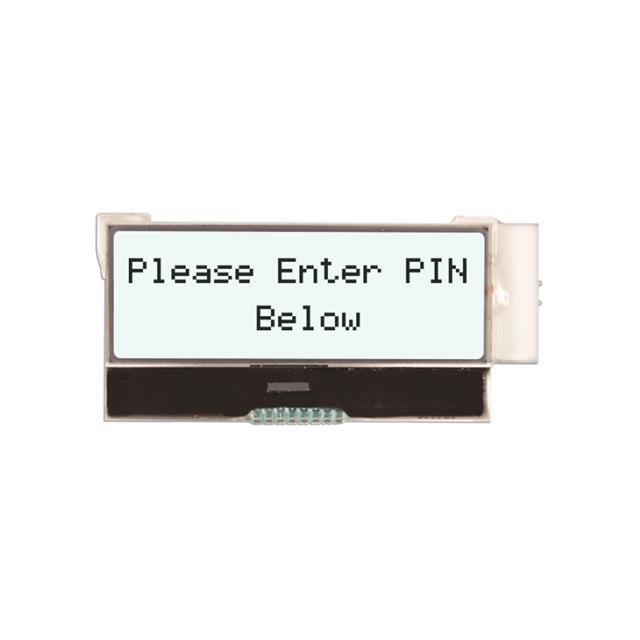

LCD MOD 32DIG 16X2 TRANSFLCT WHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LCD Safe Handling Procedure +1

NHD-C0216CIZ-FSW-FBW-3V3

Active

Newhaven Display Intl

LCD MOD 32DIG 16X2 TRANSFLCT WHT

Deep-Dive with AI

DocumentsDatasheet LCD Safe Handling Procedure +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.23
		5	$ 12.44
		10	$ 11.64
		50	$ 10.98
		100	$ 10.45
		250	$ 9.92
		500	$ 9.53

Description

General part information

NHD-C0216 Series

Character Display Module Transflective 5 x 8 Dots FSTN - Film Super-Twisted Nematic LED - White I2C 56.00mm x 25.30mm x 5.50mm
