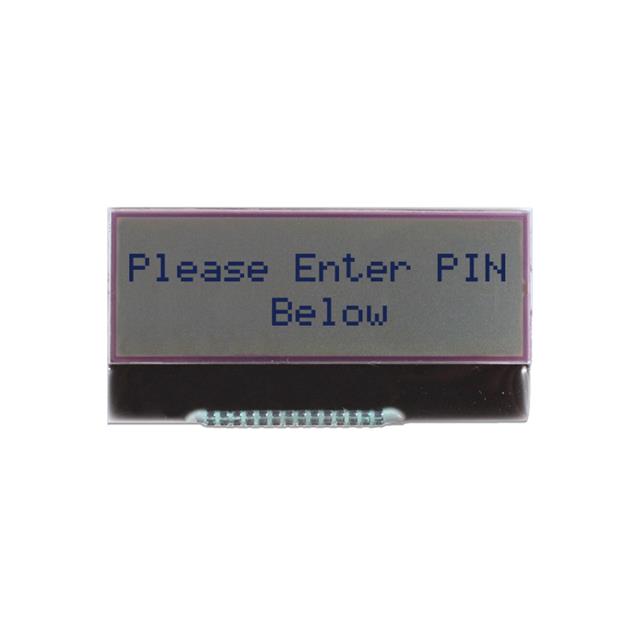

NHD-C0216AZ-FN-GBW

Active

Newhaven Display Intl

LCD MOD 32DIG 16X2 TRANSFLECTIVE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLCD Solvent Precautions Datasheet +1

NHD-C0216AZ-FN-GBW

Active

Newhaven Display Intl

LCD MOD 32DIG 16X2 TRANSFLECTIVE

Deep-Dive with AI

DocumentsLCD Solvent Precautions Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.43
		5	$ 10.74
		10	$ 10.06
		50	$ 9.49
		100	$ 9.11

Description

General part information

NHD-C0216 Series

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight Parallel 49.70mm x 25.30mm x 2.10mm

Documents

Technical documentation and resources

LCD Solvent Precautions

Datasheet

LCD Safe Handling Procedure

Related Document

Specification	NHD-C0216AZ-FN-GBW	NHD-C0216 Series

Background Color	Gray	Gray, Blue, White
Backlight	Without Backlight	Without Backlight, LED - White
Character Format [x]	5 Dots	5 Dots
Character Format [y]	8 Dots	8 Dots
Character Size	-	1.82 mm
Character Size	-	4.13 mm
Character Size [custom]	2.21 mm	2.21 mm
Character Size [custom]	4.68 mm	4.68 mm
Controller Type	NT-7605	ST-7032, NT-7605, AiP31032
Display Format [x]	16	16
Display Format [y]	2	2
Display Mode	Transflective	Transflective, Transmissive
Display Type	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic, FSTN - Film Super-Twisted Nematic
Dot Size [x]	0.41 mm	0.34 - 0.41 mm
Dot Size [y]	0.55 mm	0.49 - 0.55 mm
Interface	Parallel	Parallel, Serial, I2C
Number of Characters	32	32
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline L x W x H [x]	49.7 mm	41.4 - 56 mm
Outline L x W x H [y]	25.3 mm	24.3 - 25.3 mm
Outline L x W x H [z]	2.1 mm	2 - 5.5 mm
Text Color	Blue	Blue, White, Black
Viewing Area [x]	45.7 mm	37.6 - 45.7 mm
Viewing Area [y]	14.3 mm	12.8 - 14.3 mm
Voltage - Supply [Max]	5.5 V	3.3 - 5.5 V
Voltage - Supply [Min]	4.7 V	2.7 - 4.7 V
