Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NHD-C0216CU-FSW-GBW-3V3	NHD-C0216 Series

Background Color	White	Gray, Blue, White
Backlight	LED - White	Without Backlight, LED - White
Character Format [x]	5 Dots	5 Dots
Character Format [y]	8 Dots	8 Dots
Character Size	-	1.82 mm
Character Size	-	4.13 mm
Character Size [custom]	2.21 mm	2.21 mm
Character Size [custom]	4.68 mm	4.68 mm
Controller Type	ST-7032	ST-7032, NT-7605, AiP31032
Display Format [x]	16	16
Display Format [y]	2	2
Display Mode	Transflective	Transflective, Transmissive
Display Type	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic, FSTN - Film Super-Twisted Nematic
Dot Size [x]	0.41 mm	0.34 - 0.41 mm
Dot Size [y]	0.55 mm	0.49 - 0.55 mm
Interface	Parallel	Parallel, Serial, I2C
Number of Characters	32	32
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline L x W x H [x]	56 mm	41.4 - 56 mm
Outline L x W x H [y]	25.3 mm	24.3 - 25.3 mm
Outline L x W x H [z]	5.5 mm	2 - 5.5 mm
Text Color	Blue	Blue, White, Black
Viewing Area [x]	45.7 mm	37.6 - 45.7 mm
Viewing Area [y]	14.3 mm	12.8 - 14.3 mm
Voltage - Supply [Max]	5.5 V	3.3 - 5.5 V
Voltage - Supply [Min]	2.7 V	2.7 - 4.7 V

NHD-C0216 Series

LCD MOD 32DIG 16X2 TRANSFLECTIVE

Part	Number of Characters	Operating Temperature [Min]	Operating Temperature [Max]	Text Color	Backlight	Display Format [y]	Display Format [x]	Viewing Area [y]	Viewing Area [x]	Dot Size [y]	Dot Size [x]	Background Color	Character Format [y]	Character Format [x]	Display Type	Interface	Controller Type	Character Size [custom]	Character Size [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Mode	Outline L x W x H [z]	Outline L x W x H [x]	Outline L x W x H [y]	Character Size [y]	Character Size [z]
Newhaven Display Intl NHD-C0216CU-FN-GBW-3V	32	-20 C	70 °C	Blue	Without Backlight	2	16	14.3 mm	45.7 mm	0.55 mm	0.41 mm	Gray	8 Dots	5 Dots	STN - Super-Twisted Nematic	Parallel	ST-7032	2.21 mm	4.68 mm	2.7 V	5.5 V	Transflective	2 mm	49.7 mm	25.3 mm
Newhaven Display Intl NHD-C0216AZ-FSW-GBW	32	-20 C	70 °C	Blue	LED - White	2	16	14.3 mm	45.7 mm	0.55 mm	0.41 mm	Gray	8 Dots	5 Dots	STN - Super-Twisted Nematic	Parallel	NT-7605	2.21 mm	4.68 mm	4.7 V	5.5 V	Transflective
Newhaven Display Intl NHD-C0216CZ-NSW-BBW-3V3	32	-20 C	70 °C	White	LED - White	2	16	12.8 mm	37.6 mm	0.49 mm	0.34 mm	Blue	8 Dots	5 Dots	STN - Super-Twisted Nematic	Serial	ST-7032			2.7 V	4.5 V	Transmissive	4 mm	41.4 mm	24.3 mm	1.82 mm	4.13 mm
Newhaven Display Intl NHD-C0216AZ-FN-GBW	32	-20 C	70 °C	Blue	Without Backlight	2	16	14.3 mm	45.7 mm	0.55 mm	0.41 mm	Gray	8 Dots	5 Dots	STN - Super-Twisted Nematic	Parallel	NT-7605	2.21 mm	4.68 mm	4.7 V	5.5 V	Transflective	2.1 mm	49.7 mm	25.3 mm
Newhaven Display Intl NHD-C0216CZ-FSW-FBW-3V3	32	-20 C	70 °C	Black	LED - White	2	16	12.8 mm	37.6 mm	0.49 mm	0.34 mm	White	8 Dots	5 Dots	FSTN - Film Super-Twisted Nematic	Serial	ST-7032			2.7 V	4.5 V	Transflective	4 mm	41.4 mm	24.3 mm	1.82 mm	4.13 mm
Newhaven Display Intl NHD-C0216CIZ-FSW-FBW-3V3	32	-20 C	70 °C	Black	LED - White	2	16	14.3 mm	45.7 mm	0.55 mm	0.41 mm	White	8 Dots	5 Dots	FSTN - Film Super-Twisted Nematic	I2C	AiP31032	2.21 mm	4.68 mm	2.7 V	3.3 V	Transflective	5.5 mm	56 mm	25.3 mm
Newhaven Display Intl NHD-C0216CIZ-FN-FBW-3V	32	-20 C	70 °C	Black	Without Backlight	2	16	14.3 mm	45.7 mm	0.55 mm	0.41 mm	Gray	8 Dots	5 Dots	FSTN - Film Super-Twisted Nematic	I2C	AiP31032	2.21 mm	4.68 mm	2.7 V	3.3 V	Transflective	2.1 mm	49.7 mm	25.3 mm
Newhaven Display Intl NHD-C0216CU-FSW-GBW-3V3	32	-20 C	70 °C	Blue	LED - White	2	16	14.3 mm	45.7 mm	0.55 mm	0.41 mm	White	8 Dots	5 Dots	STN - Super-Twisted Nematic	Parallel	ST-7032	2.21 mm	4.68 mm	2.7 V	5.5 V	Transflective	5.5 mm	56 mm	25.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.16
		5	$ 11.43
		10	$ 10.70
		50	$ 10.09
		100	$ 9.75

Description

General part information

NHD-C0216 Series

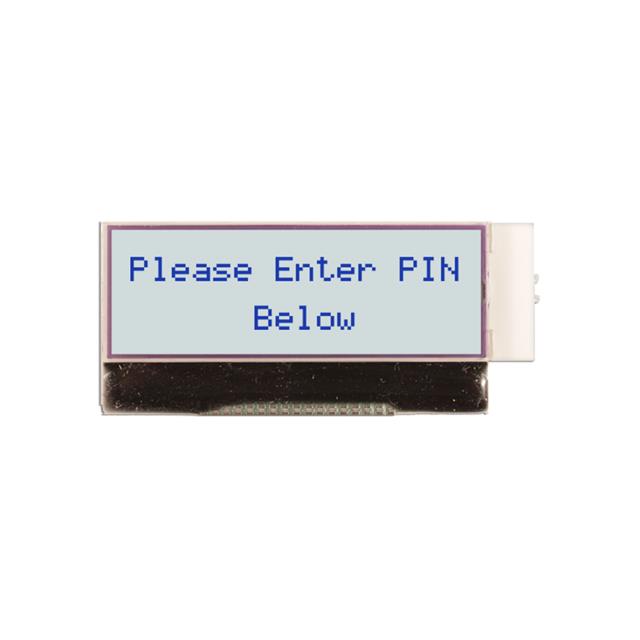

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel 56.00mm x 25.30mm x 5.50mm
