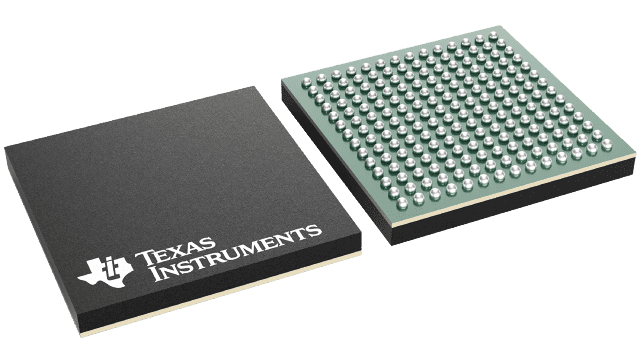

TMS320C5504AZCHA10

Active

Texas Instruments

DSP FIXED-POINT 16BIT 100MHZ 200MIPS 196-PIN NFBGA TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC5515 eZdsp (Rev. A)How to Migrate CCS 3.x Projects to the Latest CCS (Rev. A)+23

TMS320C5504AZCHA10

Active

Texas Instruments

DSP FIXED-POINT 16BIT 100MHZ 200MIPS 196-PIN NFBGA TRAY

Deep-Dive with AI

DocumentsC5515 eZdsp (Rev. A)How to Migrate CCS 3.x Projects to the Latest CCS (Rev. A)+23

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMS320C5504AZCHA10

Clock Rate	100 MHz
Interface	EBI/EMI, I2S, MMC/SD, USB, I2C, UART/USART, SPI
Mounting Type	Surface Mount
Non-Volatile Memory	ROM
Non-Volatile Memory	128 kB
On-Chip RAM	2 Mbit
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	196-LFBGA
Supplier Device Package	196-NFBGA (10x10)
Type	Fixed Point
Voltage - Core	1.3 V, 1.05 V
Voltage - I/O	2.5 V, 2.8 V, 3.3 V, 1.8 V
