IPD70R600P7SAUMA1

Active

Infineon Technologies

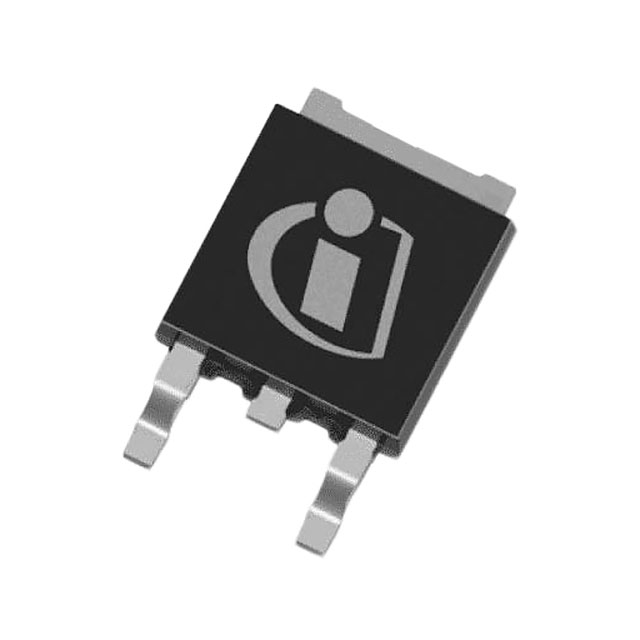

POWER MOSFET, N CHANNEL, 700 V, 8.5 A, 0.49 OHM, TO-252 (DPAK), SURFACE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IPD70R600P7SAUMA1

Active

Infineon Technologies

POWER MOSFET, N CHANNEL, 700 V, 8.5 A, 0.49 OHM, TO-252 (DPAK), SURFACE MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPD70R600P7SAUMA1

Current - Continuous Drain (Id) @ 25°C	8.5 A
Drain to Source Voltage (Vdss)	700 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	10.5 nC
Input Capacitance (Ciss) (Max) @ Vds	364 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Power Dissipation (Max)	43 W
Rds On (Max) @ Id, Vgs	600 mOhm
Supplier Device Package	PG-TO252-3
Technology	MOSFET (Metal Oxide)
Vgs (Max)	16 V
Vgs(th) (Max) @ Id	3.5 V

IPD70 Series

Part	Gate Charge (Qg) (Max) @ Vgs	FET Type	Current - Continuous Drain (Id) @ 25°C	Package / Case	Input Capacitance (Ciss) (Max) @ Vds	Vgs (Max)	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id	Power Dissipation (Max)	Mounting Type	Technology	Input Capacitance (Ciss) (Max) @ Vds [Max]	Power Dissipation (Max) [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Grade	Qualification	Rds On (Max) @ Id, Vgs [Max]	Vgs (Max) [Max]	Vgs (Max) [Min]
Infineon Technologies IPD70R950CEAUMA1	15.3 nC	N-Channel	7.4 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	328 pF	20 V	10 V	150 °C	-40 °C	PG-TO252-3	950 mOhm	700 V	3.5 V	68 W	Surface Mount	MOSFET (Metal Oxide)
Infineon Technologies IPD70R900P7SAUMA1		N-Channel	6 A	DPAK (2 Leads + Tab) SC-63 TO-252-3		16 V	10 V	150 °C	-40 °C	PG-TO252-3	900 mOhm	700 V	3.5 V		Surface Mount	MOSFET (Metal Oxide)	211 pF	30.5 W	6.8 nC
Infineon Technologies IPD70N12S3L12ATMA1		N-Channel	70 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	5550 pF	20 V	4.5 V 10 V	175 ░C	-55 °C	PG-TO252-3-11		120 V	2.4 V	125 W	Surface Mount	MOSFET (Metal Oxide)			77 nC	Automotive	AEC-Q101
Infineon Technologies IPD70R1K4CEAUMA1	10.5 nC	N-Channel	5.4 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	225 pF	20 V	10 V	150 °C	-40 °C	PG-TO252-3	1.4 Ohm	700 V	3.5 V	53 W	Surface Mount	MOSFET (Metal Oxide)
Infineon Technologies IPD70R600P7SAUMA1	10.5 nC	N-Channel	8.5 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	364 pF	16 V	10 V	150 °C	-40 °C	PG-TO252-3	600 mOhm	700 V	3.5 V	43 W	Surface Mount	MOSFET (Metal Oxide)
Infineon Technologies IPD70N03S4L04ATMA1		N-Channel	70 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	3300 pF	16 V	4.5 V 10 V	175 ░C	-55 °C	PG-TO252-3-11		30 V	2.2 V	68 W	Surface Mount	MOSFET (Metal Oxide)			48 nC			4.3 mOhm
Infineon Technologies IPD70R360P7SAUMA1	16.4 nC	N-Channel	12.5 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	517 pF	16 V	10 V	150 °C	-40 °C	PG-TO252-3	360 mOhm	700 V	3.5 V		Surface Mount	MOSFET (Metal Oxide)		59.4 W
Infineon Technologies IPD70P04P4L08AUMA2	92 nC	P-Channel	70 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	5430 pF		4.5 V 10 V	175 ░C	-55 °C	PG-TO252-3-313	7.8 mOhm	40 V	2.2 V	75 W	Surface Mount	MOSFET (Metal Oxide)							5 V	-16 V
Infineon Technologies IPD70R1K4P7SAUMA1		N-Channel	4 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	158 pF	16 V	10 V	150 °C	-40 °C	PG-TO252-3	1.4 Ohm	700 V	3.5 V	23 W	Surface Mount	MOSFET (Metal Oxide)			4.7 nC
Infineon Technologies IPD70P04P409ATMA2		P-Channel	73 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	4810 pF	20 V		175 ░C	-55 °C	PG-TO252-3-313	8.9 mOhm	40 V	4 V	75 W	Surface Mount	MOSFET (Metal Oxide)			70 nC	Automotive	AEC-Q101

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.25
		10	$ 0.79
		100	$ 0.52
		500	$ 0.40
		1000	$ 0.37
	Digi-Reel®	1	$ 1.25
		10	$ 0.79
		100	$ 0.52
		500	$ 0.40
		1000	$ 0.37
	Tape & Reel (TR)	2500	$ 0.33
		5000	$ 0.30
		7500	$ 0.29
		12500	$ 0.28

Description

General part information

IPD70 Series

700V CoolMOS™ P7 power transistor a revolutionary technology for high voltage power MOSFETs. Designed according to the superjunction (SJ) principle and recommended for Flyback topologies for example used in chargers, adapters, lighting applications, etc.
