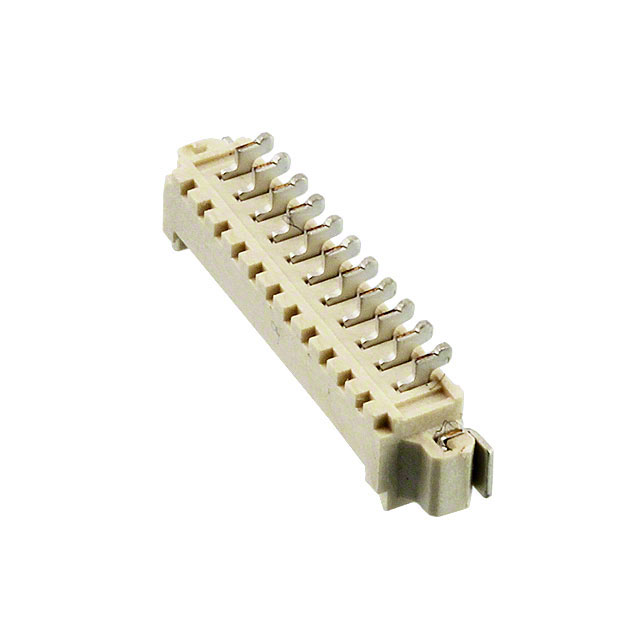

10114830-11111LF
ActiveAmphenol ICC (FCI)
CONN HEADER SMD R/A 11POS 1.25MM
Deep-Dive with AI
Search across all available documentation for this part.
10114830-11111LF
ActiveAmphenol ICC (FCI)
CONN HEADER SMD R/A 11POS 1.25MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10114830-11111LF |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Phosphor Bronze |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 0.134 in |
| Insulation Height | 3.4 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 11 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.33 | |
| 10 | $ 1.01 | |||
| 100 | $ 0.78 | |||
| 500 | $ 0.65 | |||
| Digi-Reel® | 1 | $ 1.33 | ||
| 10 | $ 1.01 | |||
| 100 | $ 0.78 | |||
| 500 | $ 0.65 | |||
| Tape & Reel (TR) | 1300 | $ 0.52 | ||
Description
General part information
10114830 Series
Connector Header Surface Mount, Right Angle 11 position 0.049" (1.25mm)
