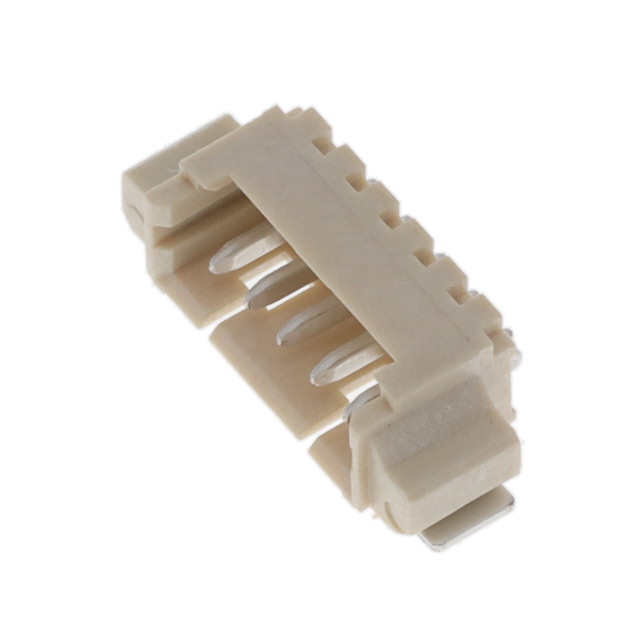

10114830-10105LF
ActiveAmphenol ICC (FCI)
CONN HEADER SMD R/A 5POS 1.25MM
Deep-Dive with AI
Search across all available documentation for this part.
10114830-10105LF
ActiveAmphenol ICC (FCI)
CONN HEADER SMD R/A 5POS 1.25MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10114830-10105LF |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 0.134 in |
| Insulation Height | 3.4 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.61 | |
| 10 | $ 0.46 | |||
| 100 | $ 0.36 | |||
| 500 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 0.61 | ||
| 10 | $ 0.46 | |||
| 100 | $ 0.36 | |||
| 500 | $ 0.30 | |||
| Tape & Reel (TR) | 1300 | $ 0.27 | ||
| 2600 | $ 0.25 | |||
| 3900 | $ 0.24 | |||
| 6500 | $ 0.23 | |||
| 9100 | $ 0.22 | |||
| 13000 | $ 0.21 | |||
| 32500 | $ 0.20 | |||
Description
General part information
10114830 Series
Connector Header Surface Mount, Right Angle 5 position 0.049" (1.25mm)
