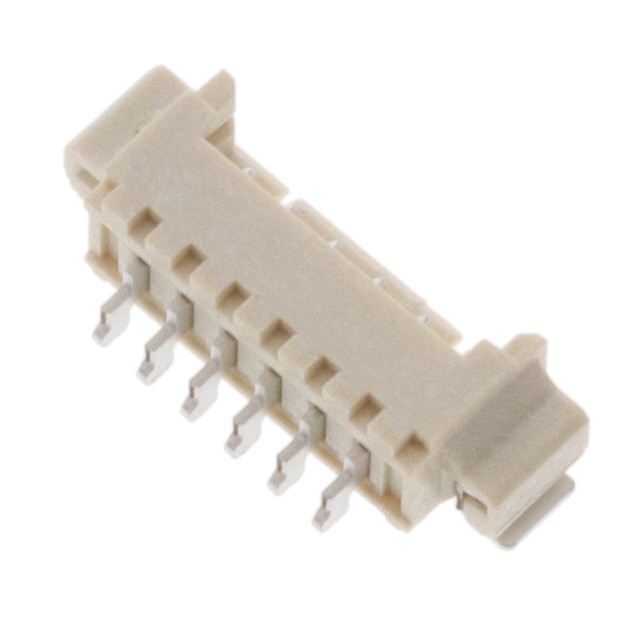

10114830-10106LF

Active

Amphenol ICC (FCI)

CONN HEADER SMD R/A 6POS 1.25MM

10114830-10106LF

Active

Amphenol ICC (FCI)

CONN HEADER SMD R/A 6POS 1.25MM

Description Specifications Series Pricing CAD Documents

Description

General part information

10114830 Series

Connector Header Surface Mount, Right Angle 6 position 0.049" (1.25mm)

Technical Specifications

Parameters and characteristics for this part

Specification	10114830-10106LF

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Male Pin
Current Rating	1 A
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.134 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	125 V

10114830 Series

Part	Features	Contact Finish Thickness - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions Loaded	Number of Positions	Termination	Material Flammability Rating	Contact Material	Current Rating	Mounting Type	Voltage Rating	Contact Type	Style	Shrouding	Connector Type	Number of Rows	Contact Finish - Mating	Pitch - Mating	Insulation Color	Fastening Type	Contact Shape	Insulation Height	Insulation Material	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Voltage Rating (Type)
Amphenol ICC (FCI) 10114830-11112LF	Solder Retention	Flash	-40 °C	105 °C	All	12	Solder	UL94 V-0	Phosphor Bronze	1 A	Right Angle Surface Mount	125 V	Male Pin	Board Cable/Wire	Shrouded - 4 Wall	Header	1	Gold	0.049 in	Natural	Detent Lock	Rectangular	0.134 in	Liquid Crystal Polymer (LCP)
Amphenol ICC (FCI) 10114830-10105LF	Solder Retention		-40 °C	105 °C	All	5	Solder	UL94 V-0	Phosphor Bronze	1 A	Right Angle Surface Mount	125 V	Male Pin	Board Cable/Wire	Shrouded - 4 Wall	Header	1	Tin	0.049 in	Natural	Detent Lock	Rectangular	0.134 in	Liquid Crystal Polymer (LCP)	Tin
Amphenol ICC (FCI) 10114830-11102LF	Solder Retention	Flash	-40 °C	105 °C	All	2	Solder	UL94 V-0	Phosphor Bronze	1 A	Right Angle Surface Mount	125 V	Male Pin	Board Cable/Wire	Shrouded - 4 Wall	Header	1	Gold	0.049 in	Natural	Detent Lock	Rectangular	0.134 in	Liquid Crystal Polymer (LCP)
Amphenol ICC (FCI) 10114830-13103LF	Solder Retention		-40 °C	105 °C	All	3	Solder	UL94 V-0	Phosphor Bronze	1 A	Right Angle Surface Mount	125 V	Male Pin	Board Cable/Wire	Shrouded - 4 Wall	Header	1	Gold	0.049 in	Natural	Detent Lock	Rectangular	0.134 in	Liquid Crystal Polymer (LCP)	Tin	30 µin	100 Ąin
Amphenol ICC (FCI) 10114830-20107LF	Solder Retention		-40 °C	105 °C	All	7	Solder	UL94 V-0	Phosphor Bronze	1 A	Right Angle Surface Mount	125 V	Male Pin	Board Cable/Wire	Shrouded - 4 Wall	Header	1	Tin	0.049 in	Natural	Detent Lock	Rectangular	0.134 in	Liquid Crystal Polymer (LCP)	Tin	100 µin	100 Ąin	DC
Amphenol ICC (FCI) 10114830-11108LF	Solder Retention	Flash	-40 °C	105 °C	All	8	Solder	UL94 V-0	Phosphor Bronze	1 A	Right Angle Surface Mount	125 V	Male Pin	Board Cable/Wire	Shrouded - 4 Wall	Header	1	Gold	0.049 in	Natural	Detent Lock	Rectangular	0.134 in	Liquid Crystal Polymer (LCP)
Amphenol ICC (FCI) 10114830-10103LF	Solder Retention		-40 °C	105 °C	All	3	Solder	UL94 V-0	Phosphor Bronze	1 A	Right Angle Surface Mount	125 V	Male Pin	Board Cable/Wire	Shrouded - 4 Wall	Header	1	Tin	0.049 in	Natural	Detent Lock	Rectangular	0.134 in	Liquid Crystal Polymer (LCP)	Tin
Amphenol ICC (FCI) 10114830-10106LF	Solder Retention		-40 °C	105 °C	All	6	Solder	UL94 V-0	Phosphor Bronze	1 A	Right Angle Surface Mount	125 V	Male Pin	Board Cable/Wire	Shrouded - 4 Wall	Header	1	Tin	0.049 in	Natural	Detent Lock	Rectangular	0.134 in	Liquid Crystal Polymer (LCP)	Tin
Amphenol ICC (FCI) 10114830-11110LF	Solder Retention	Flash	-40 °C	105 °C	All	10	Solder	UL94 V-0	Phosphor Bronze	1 A	Right Angle Surface Mount	125 V	Male Pin	Board Cable/Wire	Shrouded - 4 Wall	Header	1	Gold	0.049 in	Natural	Detent Lock	Rectangular	0.134 in	Liquid Crystal Polymer (LCP)
Amphenol ICC (FCI) 10114830-11111LF	Solder Retention	Flash	-40 °C	105 °C	All	11	Solder	UL94 V-0	Phosphor Bronze	1 A	Right Angle Surface Mount	125 V	Male Pin	Board Cable/Wire	Shrouded - 4 Wall	Header	1	Gold	0.049 in	Natural	Detent Lock	Rectangular	0.134 in	Liquid Crystal Polymer (LCP)
