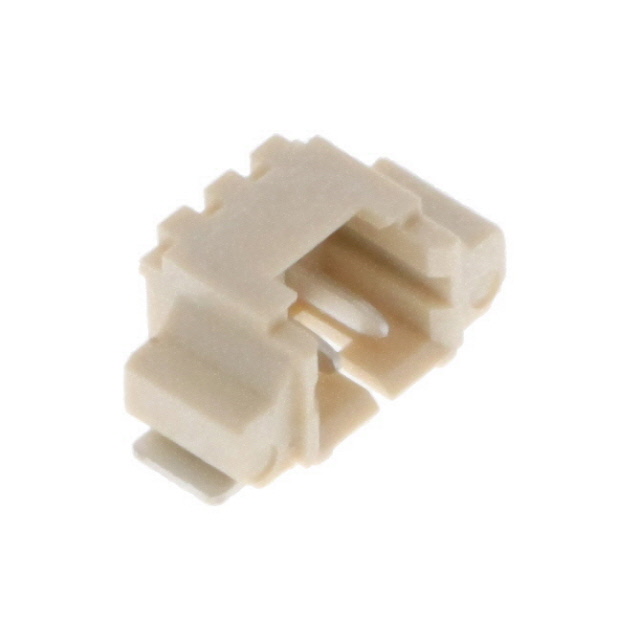

10114830-11102LF
ActiveAmphenol ICC (FCI)
CONN HEADER SMD R/A 2POS 1.25MM
Deep-Dive with AI
Search across all available documentation for this part.
10114830-11102LF
ActiveAmphenol ICC (FCI)
CONN HEADER SMD R/A 2POS 1.25MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10114830-11102LF |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Phosphor Bronze |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 0.134 in |
| Insulation Height | 3.4 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1300 | $ 0.19 | |
| 2600 | $ 0.18 | |||
| 3900 | $ 0.17 | |||
| 6500 | $ 0.16 | |||
| 9100 | $ 0.16 | |||
| 13000 | $ 0.15 | |||
| 32500 | $ 0.15 | |||
| 65000 | $ 0.14 | |||
Description
General part information
10114830 Series
Connector Header Surface Mount, Right Angle 2 position 0.049" (1.25mm)
