Mini Circular Plastic Connectors Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PLUG,11-6,LG INS,STD KEY

Part	Housing Color	Number of Positions	Contact Type	Material Flammability Rating	Orientation	Features	Shielding	Type	Shell Size - Insert Length	Shell Size - Insert Width	Shell Material	Connector Type	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Mounting Type	Note	Contact Shape	Insert Material	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Feature

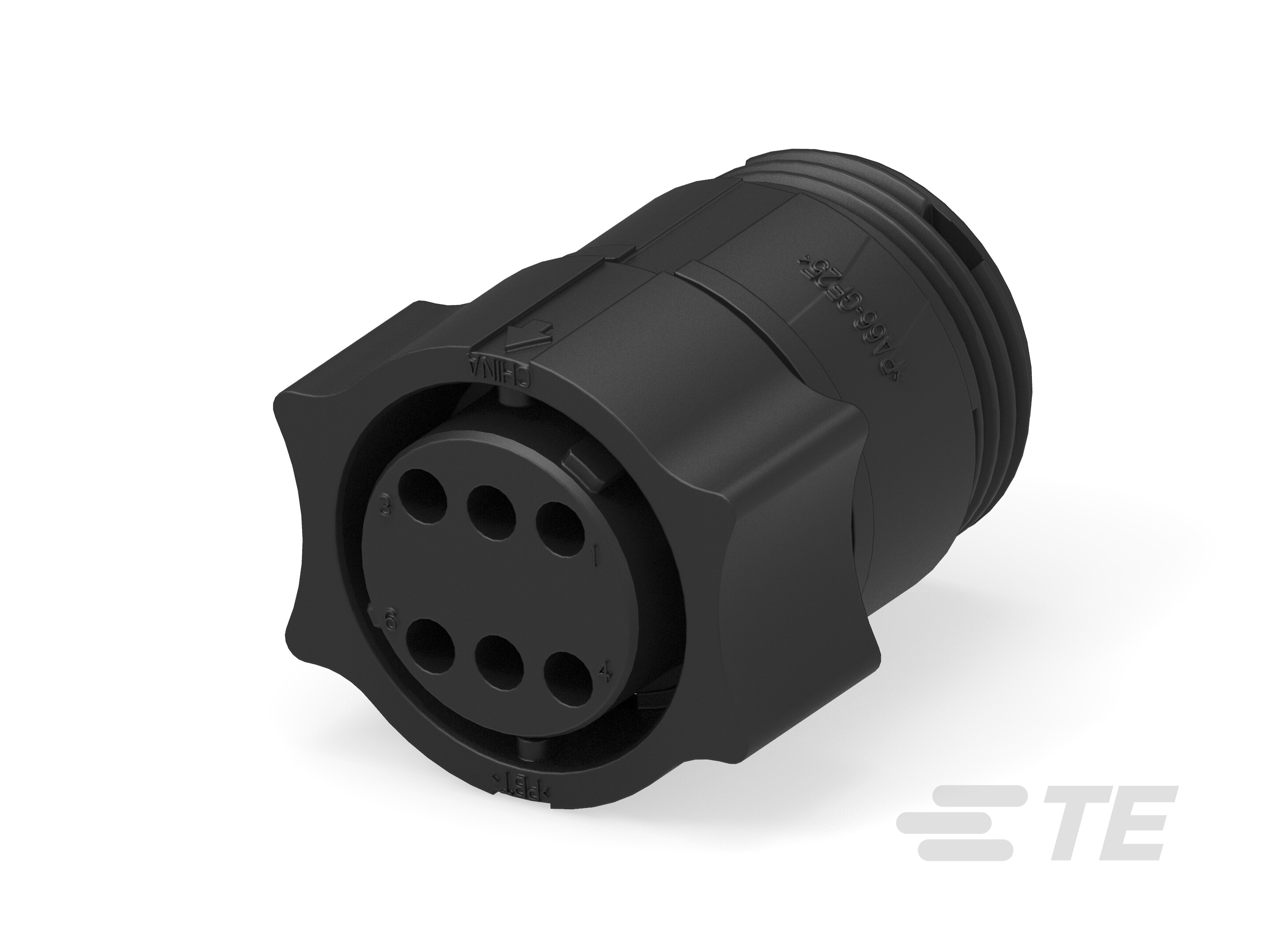

TE Connectivity AMP Connectors 1445819-3	Black	6	Crimp	UL94 V-0	A	Coupling Nut	Unshielded	For Female Sockets	11 mm	6 mm	Thermoplastic	Plug Housing	Dust Tight Waterproof	IP67	Bayonet Lock	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1445389-1	Black	4	Crimp	UL94 V-0	A		Unshielded	For Male Pins	8 mm	4 mm	Thermoplastic	Receptacle Housing	Dust Tight Waterproof	IP67	Bayonet Lock	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1445389-3	Black	4	Crimp	UL94 V-0	A		Unshielded	For Male Pins	8 mm	4 mm	Thermoplastic	Receptacle Housing	Dust Tight Waterproof	IP67	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Circular	Thermoplastic	-55 °C	105 °C
TE Connectivity AMP Connectors 1445828-3	Black	6	Crimp	UL94 V-0	A		Unshielded	For Male Pins	11 mm	6 mm	Thermoplastic	Receptacle Housing	Dust Tight Waterproof	IP67	Bayonet Lock	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1445421-1	Black	4	Crimp	UL94 V-0	A		Unshielded	For Male Pins	8 mm	4 mm	Thermoplastic	Receptacle Housing	Dust Tight Waterproof	IP67	Bayonet Lock	Panel Mount	Contacts Not Included Jam Nut Not Included	Circular	Thermoplastic	-55 °C	105 °C	Bulkhead Front or Rear Side Nut
TE Connectivity AMP Connectors 1445820-3	Black	5	Crimp	UL94 V-0	A	Coupling Nut	Unshielded	For Female Sockets	11 mm	5 mm	Thermoplastic	Plug Housing	Dust Tight Waterproof	IP67	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Circular	Thermoplastic	-55 °C	105 °C
TE Connectivity AMP Connectors 1445819-1	Black	6	Crimp	UL94 V-0	A	Coupling Nut	Unshielded	For Female Sockets	11 mm	6 mm	Thermoplastic	Plug Housing	Dust Tight Waterproof	IP67	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Circular	Thermoplastic	-55 °C	105 °C
TE Connectivity AMP Connectors 1445820-1	Black	5	Crimp	UL94 V-0	A	Coupling Nut	Unshielded	For Female Sockets	11 mm	5 mm	Thermoplastic	Plug Housing	Dust Tight Waterproof	IP67	Bayonet Lock	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1445825-1	Black	9	Crimp	UL94 V-0	A		Unshielded	For Male Pins	11 mm	9 mm	Thermoplastic	Receptacle Housing	Dust Tight Waterproof	IP67	Bayonet Lock	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1445390-3	Black	4	Crimp	UL94 V-0	A	Coupling Nut	Unshielded	For Female Sockets	8 mm	4 mm	Thermoplastic	Plug Housing	Dust Tight Waterproof	IP67	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Circular	Thermoplastic	-55 °C	105 °C
