1445819-1

Active

TE Connectivity Raychem Cable Protection

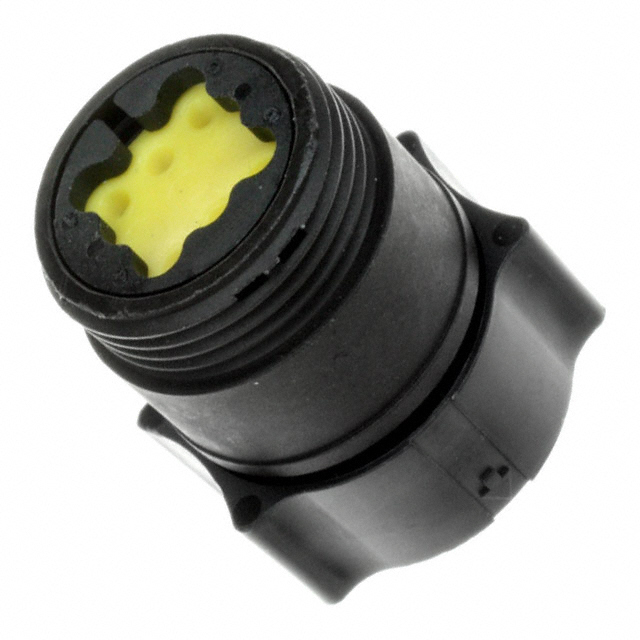

CIRCULAR CONNECTOR, MINI CPC SERIES, CABLE MOUNT PLUG, 6 CONTACTS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CIRCULAR CONNECTOR, MINI CPC SERIES, CABLE MOUNT PLUG, 6 CONTACTS

Technical Specifications

Parameters and characteristics for this part

Specification	1445819-1

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	A
Shell Size - Insert	11-6
Shielding	Unshielded
Type	For Female Sockets

Part	Insert Material	Mounting Type	Number of Positions	Shell Size - Insert	Connector Type	Shielding	Features	Orientation	Fastening Type	Contact Shape	Ingress Protection	Housing Color	Type	Material Flammability Rating	Note	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Raychem Cable Protection 1445819-1	Thermoplastic	Free Hanging (In-Line)	6	11-6	Plug Housing	Unshielded	Coupling Nut	A	Bayonet Lock	Circular	IP67 - Dust Tight Waterproof	Black	For Female Sockets	UL94 V-0	Contacts Not Included	Crimp	105 ░C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
