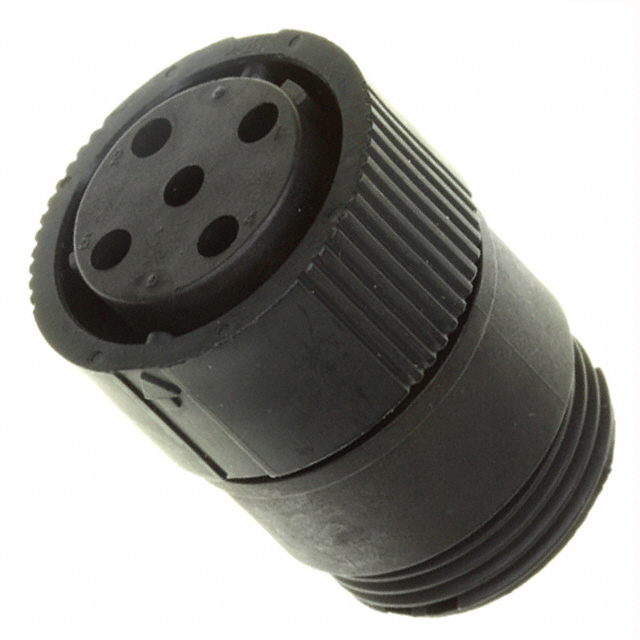

1445820-3

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG FMALE 5POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG FMALE 5POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	1445820-3

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	A
Shell Size - Insert	11-5
Shielding	Unshielded
Type	For Female Sockets

Part	Connector Type	Ingress Protection	Orientation	Housing Color	Contact Shape	Note	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Material Flammability Rating	Shielding	Features	Mounting Type	Fastening Type	Contact Type	Shell Size - Insert	Type
TE Connectivity Raychem Cable Protection 1445820-3	Plug Housing	IP67 - Dust Tight Waterproof	A	Black	Circular	Contacts Not Included	105 ░C	-55 °C	Thermoplastic	UL94 V-0	Unshielded	Coupling Nut	Free Hanging (In-Line)	Bayonet Lock	Crimp	11-5	For Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
