1445390-3

Active

TE Connectivity Raychem Cable Protection

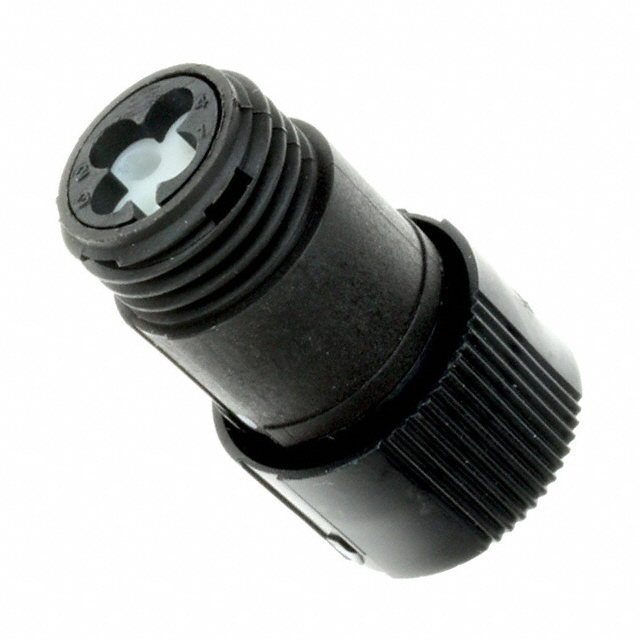

CONN PLUG HSG FMALE 4POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG FMALE 4POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	1445390-3

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	A
Shell Size - Insert	8-4
Shielding	Unshielded
Type	For Female Sockets

Part	Note	Features	Contact Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Ingress Protection	Housing Color	Type	Insert Material	Shell Size - Insert	Orientation	Contact Shape	Connector Type	Material Flammability Rating	Number of Positions	Fastening Type
TE Connectivity Raychem Cable Protection 1445390-3	Contacts Not Included	Coupling Nut	Crimp	Free Hanging (In-Line)	105 ░C	-55 °C	Unshielded	IP67 - Dust Tight Waterproof	Black	For Female Sockets	Thermoplastic	8-4	A	Circular	Plug Housing	UL94 V-0	4	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
