MAX211 Series

Catalog

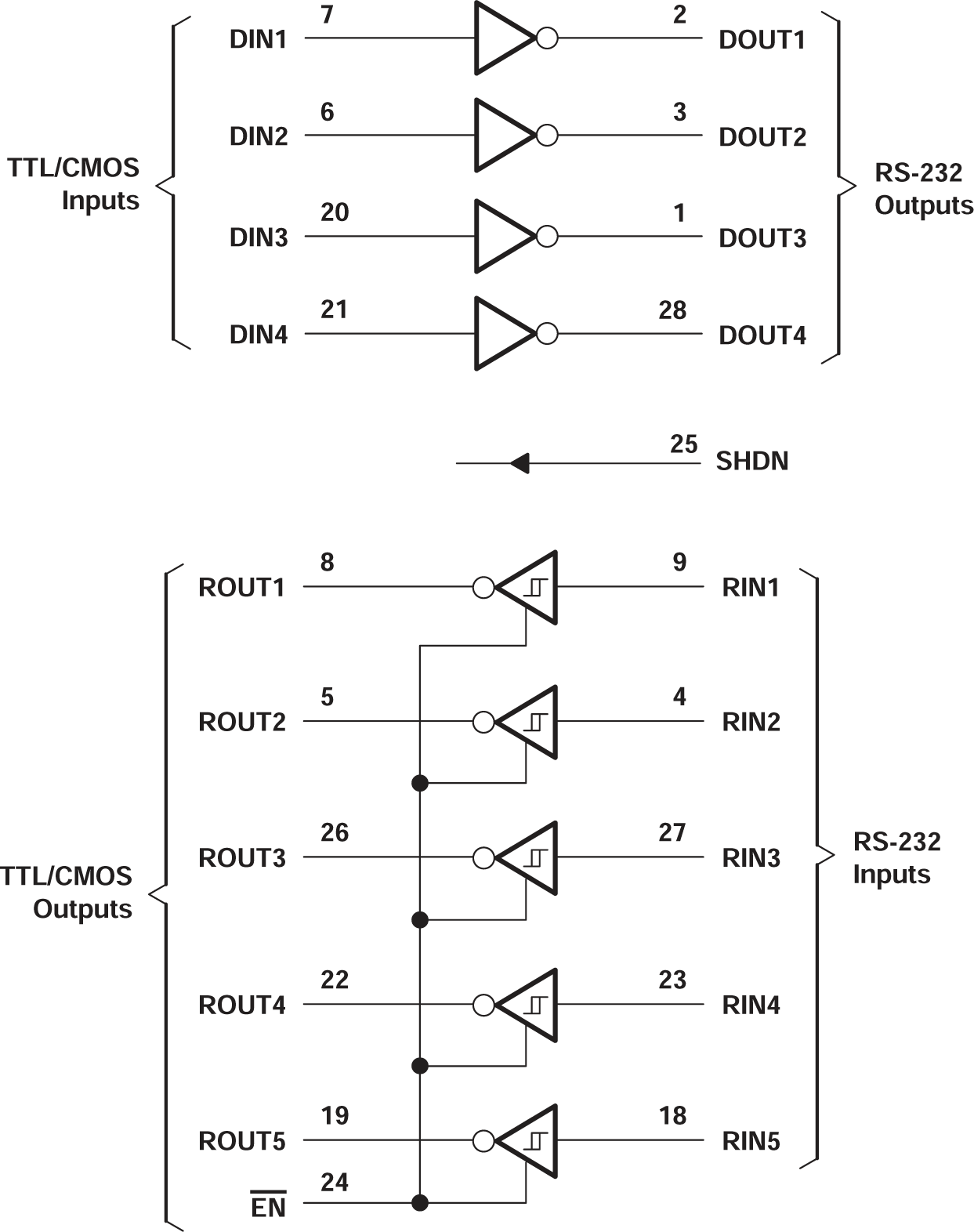

5-V MULTICHANNEL 120KBPS RS-232 LINE DRIVER/RECEIVER WITH +/-9V OUTPUT & +/-15-KV ESD PROTECTION

Part	Receiver Hysteresis	Protocol	Number of Receivers	Number of Drivers	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Mounting Type	Duplex	Data Rate	Operating Temperature (Max)	Operating Temperature (Min)	Package Width	Package Name	Package Length	Type
Texas Instruments MAX211CDBR	500 mV	RS232	5	4	5.5 V	4.5 V	Surface Mount	Full	120 Kbps	70 °C	0 °C	5.3 mm	28-SSOP	0.209 in	Transceiver
Texas Instruments MAX211IDBRG4	500 mV	RS232	5	4	5.5 V	4.5 V	Surface Mount	Full	120 Kbps	85 °C	-40 °C	5.3 mm	28-SSOP	0.209 in	Transceiver
Texas Instruments MAX211CDWR	500 mV	RS232	5	4	5.5 V	4.5 V	Surface Mount	Full	120 Kbps	70 °C	0 °C	7.5 mm	28-SOIC	0.295 in	Transceiver
Texas Instruments MAX211IDBRE4	500 mV	RS232	5	4	5.5 V	4.5 V	Surface Mount	Full	120 Kbps	85 °C	-40 °C	5.3 mm	28-SSOP	0.209 in	Transceiver
Texas Instruments MAX211IDWR	500 mV	RS232	5	4	5.5 V	4.5 V	Surface Mount	Full	120 Kbps	85 °C	-40 °C	7.5 mm	28-SOIC	0.295 in	Transceiver
Texas Instruments MAX211CDW	500 mV	RS232	5	4	5.5 V	4.5 V	Surface Mount	Full	120 Kbps	70 °C	0 °C	7.5 mm	28-SOIC	0.295 in	Transceiver
Texas Instruments MAX211IDBR	500 mV	RS232	5	4	5.5 V	4.5 V	Surface Mount	Full	120 Kbps	85 °C	-40 °C	5.3 mm	28-SSOP	0.209 in	Transceiver
Texas Instruments MAX211IDW	500 mV	RS232	5	4	5.5 V	4.5 V	Surface Mount	Full	120 Kbps	85 °C	-40 °C	7.5 mm	28-SOIC	0.295 in	Transceiver
Texas Instruments MAX211CDWG4	500 mV	RS232	5	4	5.5 V	4.5 V	Surface Mount	Full	120 Kbps	70 °C	0 °C	7.5 mm	28-SOIC	0.295 in	Transceiver
Texas Instruments MAX211IDB	500 mV	RS232	5	4	5.5 V	4.5 V	Surface Mount	Full	120 Kbps	85 °C	-40 °C	5.3 mm	28-SSOP	0.209 in	Transceiver
