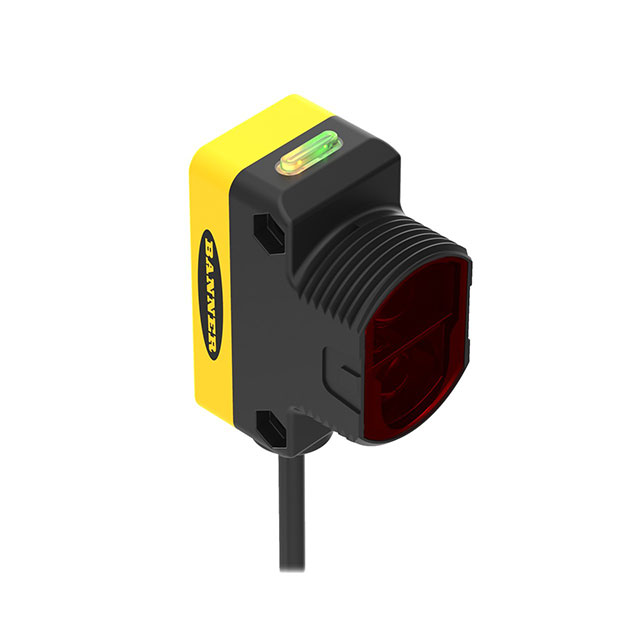

QS30FF400 - QS30FF400

QS30FF400

Active
BANNER ENGINEERING

PHOTOELECTRIC SENSOR, QS30 SERIES, WORLD-BEAM, FIXED-FIELD, 400MM, NPN / PNP, 10-30V, PRE-WIRED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN
QS30FF400 - QS30FF400

QS30FF400

Active
BANNER ENGINEERING

PHOTOELECTRIC SENSOR, QS30 SERIES, WORLD-BEAM, FIXED-FIELD, 400MM, NPN / PNP, 10-30V, PRE-WIRED

Deep-Dive with AI

DocumentsDrawing EN

Technical Specifications

Parameters and characteristics for this part

SpecificationQS30FF400
Cable Length78.74 in
Cable Length2 m
Connection MethodCable
Ingress ProtectionNEMA 6P, IP67
Light SourceRed
Operating Temperature [Max]70 °C
Operating Temperature [Min]-20 C
Output ConfigurationNPN/PNP - Dark-ON/Light-ON
Response Time2 ms
Sensing Distance400 mm
Sensing Distance15.748 in
Sensing MethodBackground Suppression
Voltage - Supply [Max]30 VDC
Voltage - Supply [Min]10 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 119.00
NewarkEach 1$ 118.58

Description

General part information

QS30F Series

The QS30 series self-contained fixed-field powerful visible red diffuse mode Sensor with far-limit cut-off (a type of background suppression). Their high excess gain and fixed-field technology allow them to detect objects of low reflectivity that are directly in front of another surface, while ignoring the surface in the background. The cut-off distance is fixed. Backgrounds and background objects must always be placed beyond the cut-off distance. Retroreflective, polarized retroreflective and diffuse models have potentiometer on back of housing for easy sensor range adjustment.
