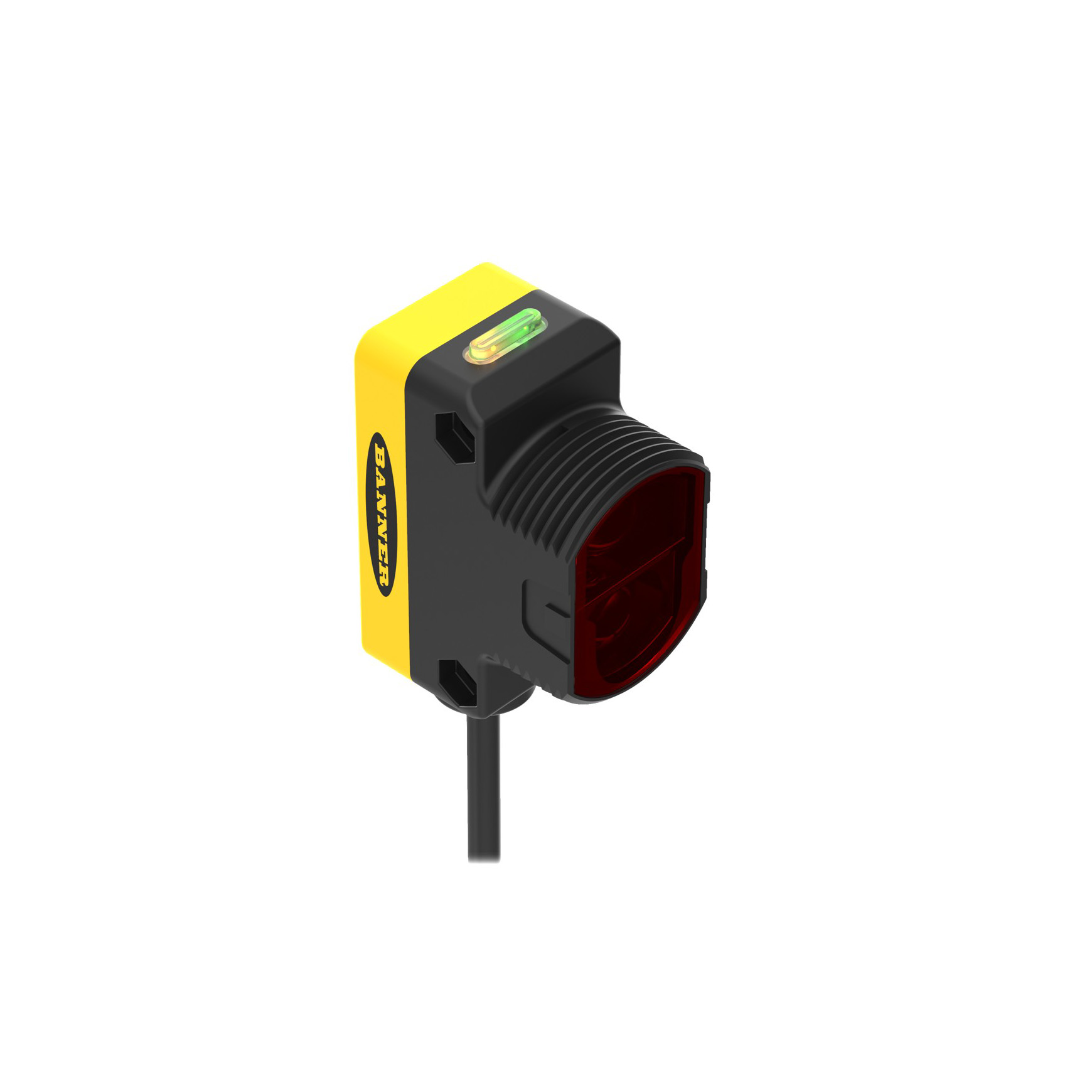

QS30FF400QPMA

Active

BANNER ENGINEERING

WORLD-BEAM QS30: FIXED-FIELD

Search across all available documentation for this part.

Active

BANNER ENGINEERING

WORLD-BEAM QS30: FIXED-FIELD

Technical Specifications

Parameters and characteristics for this part

Specification	QS30FF400QPMA

Connection Method	Connector
Ingress Protection	NEMA 6P, IEC IP67
Light Source	Red
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output Configuration	NPN/PNP, Dark-ON/Light-ON, Selectable
Response Time	2 ms
Sensing Distance	400 mm
Sensing Distance	15.748 in
Sensing Method	Background Suppression
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Method	Sensing Distance	Sensing Distance	Light Source	Output Configuration	Connection Method	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Cable Length	Cable Length
BANNER ENGINEERING QS30FF400Q	2 ms	-20 C	70 °C	Background Suppression	400 mm	15.748 in	Red	NPN/PNP - Dark-ON/Light-ON	Connector	IP67 NEMA 6P	30 VDC	10 VDC
BANNER ENGINEERING QS30FF200	2 ms	-20 C	70 °C	Background Suppression	200 mm	7.874 "	Red	NPN/PNP - Dark-ON/Light-ON	Cable	IP67 NEMA 6P	30 VDC	10 VDC	78.74 in	2 m
BANNER ENGINEERING QS30FF600Q	2 ms	-20 C	70 °C	Background Suppression	60 cm	23.622 in	Red	NPN/PNP - Dark-ON/Light-ON	Connector	IP67 NEMA 6P	30 VDC	10 VDC
BANNER ENGINEERING QS30FF400QPMA	2 ms	-20 C	70 °C	Background Suppression	400 mm	15.748 in	Red	Dark-ON/Light-ON NPN/PNP Selectable	Connector	NEMA 6P IEC IP67	30 VDC	10 VDC
BANNER ENGINEERING QS30FF200Q	2 ms	-20 C	70 °C	Background Suppression	200 mm	7.874 "	Red	NPN/PNP - Dark-ON/Light-ON	Connector	IP67 NEMA 6P	30 VDC	10 VDC
BANNER ENGINEERING QS30FF400	2 ms	-20 C	70 °C	Background Suppression	400 mm	15.748 in	Red	NPN/PNP - Dark-ON/Light-ON	Cable	IP67 NEMA 6P	30 VDC	10 VDC	78.74 in	2 m
BANNER ENGINEERING QS30FF600	2 ms	-20 C	70 °C	Background Suppression	60 cm	23.622 in	Red	NPN/PNP - Dark-ON/Light-ON	Cable	IP67 NEMA 6P	30 VDC	10 VDC	78.74 in	2 m
BANNER ENGINEERING QS30FF200Q-25339	2 ms	-20 C	70 °C	Background Suppression	200 mm	7.874 "	Red	NPN/PNP - Dark-ON/Light-ON	Connector	IP67 NEMA 6P	30 VDC	10 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 146.00
Newark	Each	1	$ 148.00

General part information

Background Suppression Optical Sensor 15.748" (400mm) NPN/PNP - Dark-ON/Light-ON - Selectable
