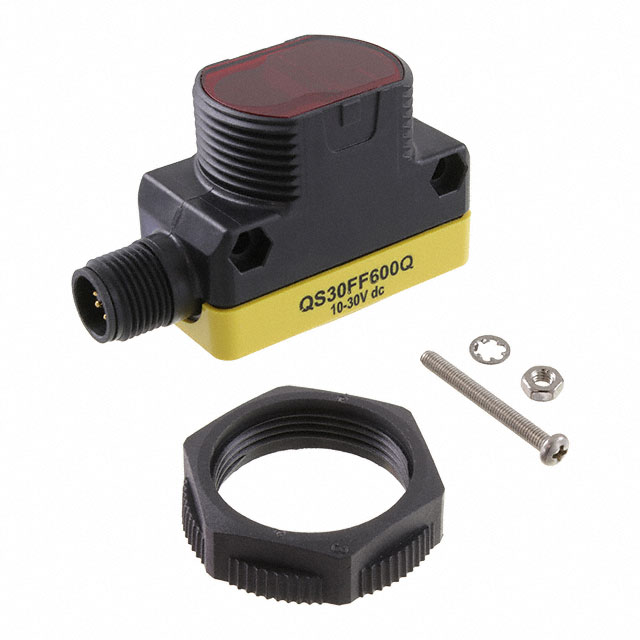

QS30FF600Q

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, QS30 SERIES, WORLD-BEAM, FIXED, 600MM, NPN / PNP, 10-30V, QUICK DISCONNECT

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, QS30 SERIES, WORLD-BEAM, FIXED, 600MM, NPN / PNP, 10-30V, QUICK DISCONNECT

Technical Specifications

Parameters and characteristics for this part

Part	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Method	Sensing Distance	Sensing Distance	Light Source	Output Configuration	Connection Method	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Cable Length	Cable Length
BANNER ENGINEERING QS30FF400Q	2 ms	-20 C	70 °C	Background Suppression	400 mm	15.748 in	Red	NPN/PNP - Dark-ON/Light-ON	Connector	IP67 NEMA 6P	30 VDC	10 VDC
BANNER ENGINEERING QS30FF200	2 ms	-20 C	70 °C	Background Suppression	200 mm	7.874 "	Red	NPN/PNP - Dark-ON/Light-ON	Cable	IP67 NEMA 6P	30 VDC	10 VDC	78.74 in	2 m
BANNER ENGINEERING QS30FF600Q	2 ms	-20 C	70 °C	Background Suppression	60 cm	23.622 in	Red	NPN/PNP - Dark-ON/Light-ON	Connector	IP67 NEMA 6P	30 VDC	10 VDC
BANNER ENGINEERING QS30FF400QPMA	2 ms	-20 C	70 °C	Background Suppression	400 mm	15.748 in	Red	Dark-ON/Light-ON NPN/PNP Selectable	Connector	NEMA 6P IEC IP67	30 VDC	10 VDC
BANNER ENGINEERING QS30FF200Q	2 ms	-20 C	70 °C	Background Suppression	200 mm	7.874 "	Red	NPN/PNP - Dark-ON/Light-ON	Connector	IP67 NEMA 6P	30 VDC	10 VDC
BANNER ENGINEERING QS30FF400	2 ms	-20 C	70 °C	Background Suppression	400 mm	15.748 in	Red	NPN/PNP - Dark-ON/Light-ON	Cable	IP67 NEMA 6P	30 VDC	10 VDC	78.74 in	2 m
BANNER ENGINEERING QS30FF600	2 ms	-20 C	70 °C	Background Suppression	60 cm	23.622 in	Red	NPN/PNP - Dark-ON/Light-ON	Cable	IP67 NEMA 6P	30 VDC	10 VDC	78.74 in	2 m
BANNER ENGINEERING QS30FF200Q-25339	2 ms	-20 C	70 °C	Background Suppression	200 mm	7.874 "	Red	NPN/PNP - Dark-ON/Light-ON	Connector	IP67 NEMA 6P	30 VDC	10 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Background Suppression Optical Sensor 23.622" (600mm) NPN/PNP - Dark-ON/Light-ON
