082-6157

Active

Amphenol RF

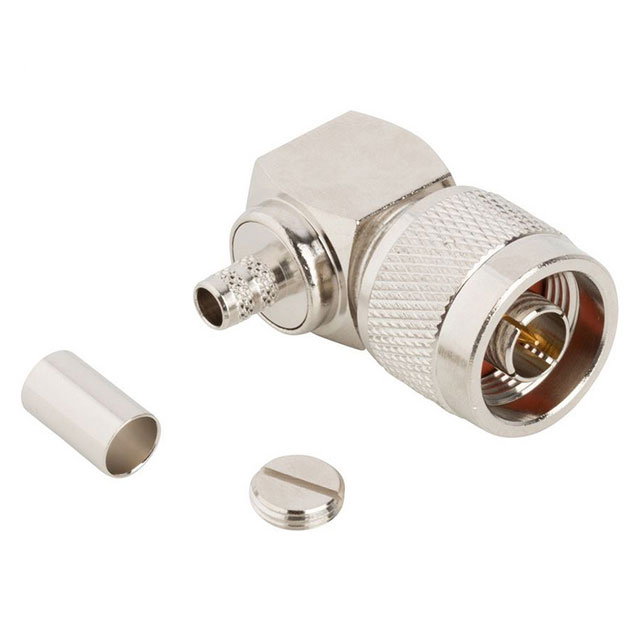

CONN N PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN N PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	082-6157

Body Finish	Nickel
Body Material	Brass
Cable Group	LMR-240, Belden 9258, RG-8X
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	1500 V

Part	Body Material	Housing Color	Contact Termination	Connector Type	Connector Style	Voltage Rating	Impedance	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Mating Cycles	Mounting Type	Number of Ports	Body Finish	Center Contact Material	Shield Termination	Insertion Loss	Center Contact Plating	Frequency - Max [Max]	Includes	Mounting Feature
Amphenol RF 082-6152	Brass	Silver	Crimp Solder	Male Pin Plug	N Type	1500 V	50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Belden 9258 LMR-240 RG-8X	500	Free Hanging (In-Line)	1	White Bronze	Brass	Crimp	0.15 dB	Gold	11 GHz	1 Connector 1 Contact 1 Ferrule
Amphenol RF 082-6151-RFX	Brass	Silver	Crimp	Female Socket Jack	N Type		50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Belden 9258 LMR-240 RG-8X	500		1	Nickel	Phosphor Bronze	Crimp		Gold	11 GHz	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Insulator 1 Lockwasher 1 Nut	Bulkhead - Front Side Nut
Amphenol RF 082-6157	Brass	Silver	Solder	Male Pin Plug	N Type	1500 V	50 Ohms	Polytetrafluoroethylene (PTFE)			Belden 9258 LMR-240 RG-8X	500	Free Hanging (In-Line) Right Angle	1	Nickel	Brass	Crimp	0.15 dB	Gold	11 GHz	1 Connector 1 End Cap 1 Ferrule

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 15.62

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
