082-6151-RFX

Active

Amphenol RF

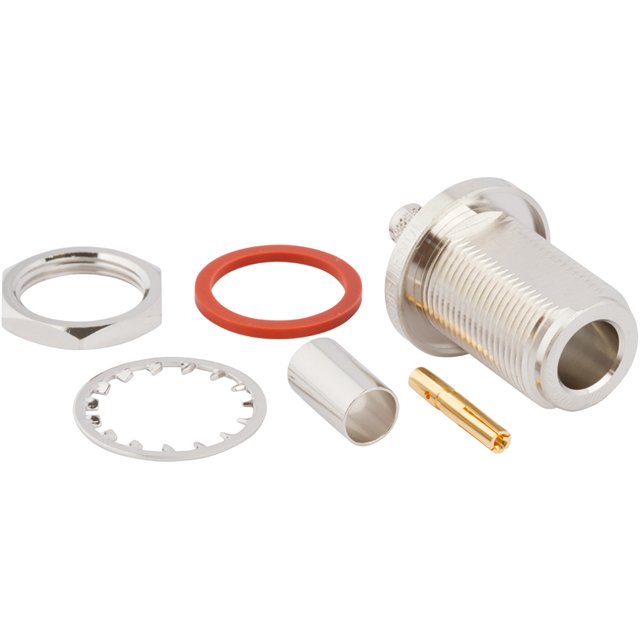

N-TYPE STRAIGHT CRIMP JACK RG-8X TIMES LMR-240 OPTIMIZED BULKHEAD 50 OHM

Search across all available documentation for this part.

Active

Amphenol RF

N-TYPE STRAIGHT CRIMP JACK RG-8X TIMES LMR-240 OPTIMIZED BULKHEAD 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	082-6151-RFX

Body Finish	Nickel
Body Material	Brass
Cable Group	LMR-240, Belden 9258, RG-8X
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Gasket, 1 Connector, 1 Nut, 1 Contact, 1 Lockwasher, 1 Insulator, 1 Ferrule
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Body Material	Housing Color	Contact Termination	Connector Type	Connector Style	Voltage Rating	Impedance	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Mating Cycles	Mounting Type	Number of Ports	Body Finish	Center Contact Material	Shield Termination	Insertion Loss	Center Contact Plating	Frequency - Max [Max]	Includes	Mounting Feature
Amphenol RF 082-6152	Brass	Silver	Crimp Solder	Male Pin Plug	N Type	1500 V	50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Belden 9258 LMR-240 RG-8X	500	Free Hanging (In-Line)	1	White Bronze	Brass	Crimp	0.15 dB	Gold	11 GHz	1 Connector 1 Contact 1 Ferrule
Amphenol RF 082-6151-RFX	Brass	Silver	Crimp	Female Socket Jack	N Type		50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Belden 9258 LMR-240 RG-8X	500		1	Nickel	Phosphor Bronze	Crimp		Gold	11 GHz	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Insulator 1 Lockwasher 1 Nut	Bulkhead - Front Side Nut
Amphenol RF 082-6157	Brass	Silver	Solder	Male Pin Plug	N Type	1500 V	50 Ohms	Polytetrafluoroethylene (PTFE)			Belden 9258 LMR-240 RG-8X	500	Free Hanging (In-Line) Right Angle	1	Nickel	Brass	Crimp	0.15 dB	Gold	11 GHz	1 Connector 1 End Cap 1 Ferrule

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.81
Newark	Each	100	$ 8.90
		250	$ 8.63

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
