082-6152

Active

Amphenol RF

RF / COAXIAL CONNECTOR, N TYPE, STRAIGHT PLUG, CRIMP, 50 OHM, RG8X, BELDEN 7808A, LMR-240, BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Drawing EN

082-6152

Active

Amphenol RF

RF / COAXIAL CONNECTOR, N TYPE, STRAIGHT PLUG, CRIMP, 50 OHM, RG8X, BELDEN 7808A, LMR-240, BRASS

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	082-6152

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-240, Belden 9258, RG-8X
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1500 V

082-615 Series

Part	Body Material	Housing Color	Contact Termination	Connector Type	Connector Style	Voltage Rating	Impedance	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Mating Cycles	Mounting Type	Number of Ports	Body Finish	Center Contact Material	Shield Termination	Insertion Loss	Center Contact Plating	Frequency - Max [Max]	Includes	Mounting Feature
Amphenol RF 082-6152	Brass	Silver	Crimp Solder	Male Pin Plug	N Type	1500 V	50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Belden 9258 LMR-240 RG-8X	500	Free Hanging (In-Line)	1	White Bronze	Brass	Crimp	0.15 dB	Gold	11 GHz	1 Connector 1 Contact 1 Ferrule
Amphenol RF 082-6151-RFX	Brass	Silver	Crimp	Female Socket Jack	N Type		50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Belden 9258 LMR-240 RG-8X	500		1	Nickel	Phosphor Bronze	Crimp		Gold	11 GHz	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Insulator 1 Lockwasher 1 Nut	Bulkhead - Front Side Nut
Amphenol RF 082-6157	Brass	Silver	Solder	Male Pin Plug	N Type	1500 V	50 Ohms	Polytetrafluoroethylene (PTFE)			Belden 9258 LMR-240 RG-8X	500	Free Hanging (In-Line) Right Angle	1	Nickel	Brass	Crimp	0.15 dB	Gold	11 GHz	1 Connector 1 End Cap 1 Ferrule

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.17
		10	$ 9.15
		25	$ 8.62
		50	$ 8.40
		100	$ 8.18
		300	$ 7.29
		500	$ 6.85
		1000	$ 6.06
Newark	Each	1	$ 10.74
		5	$ 10.00
		10	$ 9.26
		25	$ 8.19
		50	$ 7.99
		100	$ 7.78
		250	$ 6.76

Description

General part information

082-615 Series

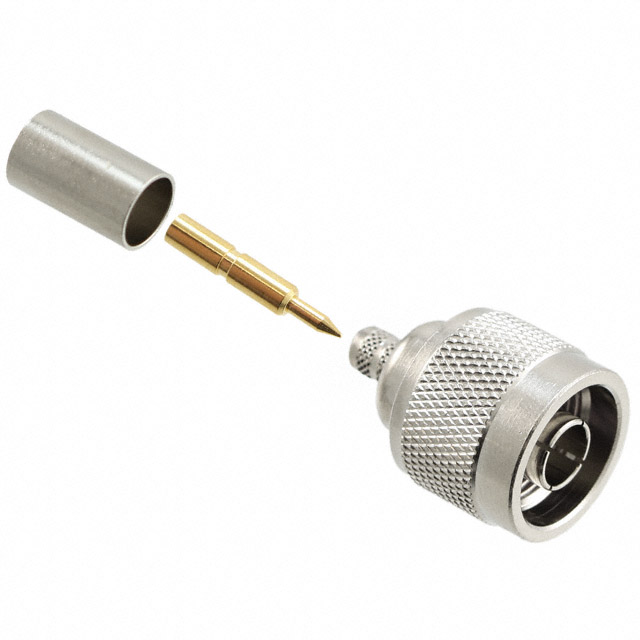

The 82-6152 is a crimp N-type Straight Plug for use with Belden 9258 and LMR-240 RF coaxial cables. It has tin-plated brass body with gold-plated brass contacts and a PTFE insulator.
