DRV8802EVM
ActiveTexas Instruments

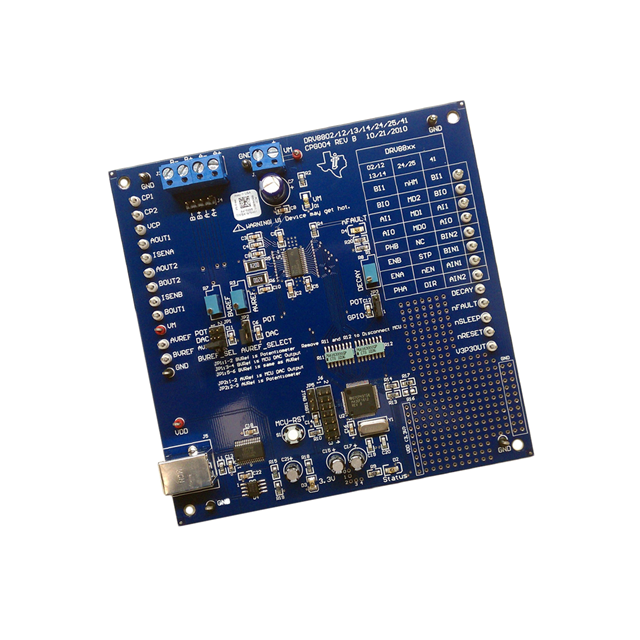

EVAL MODULE FOR DRV8802
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DRV8802EVM
ActiveTexas Instruments
EVAL MODULE FOR DRV8802
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DRV8802EVM | DRV8802 Series |
|---|---|---|
| Applications | - | General Purpose |
| Current - Output | - | 1.1 A |
| Embedded | Yes, MCU, 16-Bit | Yes, MCU, 16-Bit |
| Function | Motor Controller/Driver | Driver - Fully Integrated, Control and Power Stage, Motor Controller/Driver |
| Grade | - | Automotive |
| Interface | - | Parallel |
| Motor Type - AC, DC | - | Brushed DC |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 150 C |
| Operating Temperature | - | -40 °C |
| Output Configuration | - | Half Bridge (4) |
| Package / Case | - | 28-PowerTSSOP |
| Primary Attributes | 1.1 A | 1.1 A |
| Primary Attributes | Dual Full-Bridge (H-Bridge) | Dual Full-Bridge (H-Bridge) |
| Primary Attributes [Max] | 45 V | 45 V |
| Primary Attributes [Min] | 8.2 V | 8.2 V |
| Qualification | - | AEC-Q100 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 28-HTSSOP |
| Technology | - | Power MOSFET |
| Type | Power Management | Power Management |
| Utilized IC / Part | DRV8802 | DRV8802 |
| Voltage - Load | - | 8.2 V |
| Voltage - Load | - | 45 V |
| Voltage - Supply | - | 45 V |
| Voltage - Supply | - | 8.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
DRV8802 Series
Automotive, 47-V, 1.6-A, dual H-bridge motor driver with current regulation
| Part | Current - Output | Applications | Function | Supplier Device Package | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Technology | Motor Type - AC, DC | Grade | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Interface | Output Configuration | Qualification | Voltage - Load [Min] | Voltage - Load [Max] | Utilized IC / Part | Supplied Contents | Type | Embedded | Primary Attributes [Min] | Primary Attributes | Primary Attributes | Primary Attributes [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments DRV8802QPWPRQ1The DRV8802-Q1 device provides an integrated motor driver solution for automotive applications. The device has two H-bridge drivers, and is intended to drive DC motors. The output driver block for each consists of N-channel power MOSFET’s configured as H-bridges to drive the motor windings. The DRV8802-Q1 device can supply up to 1.6-A peak or 1.1-A RMS output current (with proper heatsinking at 24 V and 25°C) per H-bridge.
A simple parallel digital control interface is compatible with industry-standard devices. Decay mode is programmable to allow braking or coasting of the motor when disabled.
Internal shutdown functions are provided for over current protection, short circuit protection, under voltage lockout and overtemperature.
The DRV8802-Q1 device is available in a 28-pin HTSSOP package with PowerPAD (Eco-friendly: RoHS & no Sb/Br).
The DRV8802-Q1 device provides an integrated motor driver solution for automotive applications. The device has two H-bridge drivers, and is intended to drive DC motors. The output driver block for each consists of N-channel power MOSFET’s configured as H-bridges to drive the motor windings. The DRV8802-Q1 device can supply up to 1.6-A peak or 1.1-A RMS output current (with proper heatsinking at 24 V and 25°C) per H-bridge.
A simple parallel digital control interface is compatible with industry-standard devices. Decay mode is programmable to allow braking or coasting of the motor when disabled.
Internal shutdown functions are provided for over current protection, short circuit protection, under voltage lockout and overtemperature.
The DRV8802-Q1 device is available in a 28-pin HTSSOP package with PowerPAD (Eco-friendly: RoHS & no Sb/Br). | 1.1 A | General Purpose | Driver - Fully Integrated, Control and Power Stage | 28-HTSSOP | 45 V | 8.2 V | Surface Mount | Power MOSFET | Brushed DC | Automotive | 28-PowerTSSOP | 150 C | -40 °C | Parallel | Half Bridge (4) | AEC-Q100 | 8.2 V | 45 V | ||||||||
Texas Instruments DRV8802PWPThe DRV8802 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers, and is intended to drive DC motors. The output driver block for each consists of N-channel power MOSFET’s configured as H-bridges to drive the motor windings. The DRV8802 can supply up to 1.6-A peak or 1.1-A RMS output current (with proper heatsinking at 24 V and 25°C) per H-bridge.
A simple parallel digital control interface is compatible with industry-standard devices. Decay mode is programmable to allow braking or coasting of the motor when disabled.
Internal shutdown functions are provided for over current protection, short circuit protection, under voltage lockout and overtemperature.
The DRV8802 is available in a 28-pin HTSSOP package with PowerPAD™ (Eco-friendly: RoHS & no Sb/Br).
The DRV8802 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers, and is intended to drive DC motors. The output driver block for each consists of N-channel power MOSFET’s configured as H-bridges to drive the motor windings. The DRV8802 can supply up to 1.6-A peak or 1.1-A RMS output current (with proper heatsinking at 24 V and 25°C) per H-bridge.
A simple parallel digital control interface is compatible with industry-standard devices. Decay mode is programmable to allow braking or coasting of the motor when disabled.
Internal shutdown functions are provided for over current protection, short circuit protection, under voltage lockout and overtemperature.
The DRV8802 is available in a 28-pin HTSSOP package with PowerPAD™ (Eco-friendly: RoHS & no Sb/Br). | 1.1 A | General Purpose | Driver - Fully Integrated, Control and Power Stage | 28-HTSSOP | 45 V | 8.2 V | Surface Mount | Power MOSFET | Brushed DC | 28-PowerTSSOP | 150 C | -40 °C | Parallel | Half Bridge (4) | 8.2 V | 45 V | ||||||||||
Motor Controller/Driver | DRV8802 | Board(s) | Power Management | Yes, MCU, 16-Bit | 8.2 V | 1.1 A | Dual Full-Bridge (H-Bridge) | 45 V | ||||||||||||||||||
Texas Instruments DRV8802PWPRThe DRV8802 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers, and is intended to drive DC motors. The output driver block for each consists of N-channel power MOSFET’s configured as H-bridges to drive the motor windings. The DRV8802 can supply up to 1.6-A peak or 1.1-A RMS output current (with proper heatsinking at 24 V and 25°C) per H-bridge.
A simple parallel digital control interface is compatible with industry-standard devices. Decay mode is programmable to allow braking or coasting of the motor when disabled.
Internal shutdown functions are provided for over current protection, short circuit protection, under voltage lockout and overtemperature.
The DRV8802 is available in a 28-pin HTSSOP package with PowerPAD™ (Eco-friendly: RoHS & no Sb/Br).
The DRV8802 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers, and is intended to drive DC motors. The output driver block for each consists of N-channel power MOSFET’s configured as H-bridges to drive the motor windings. The DRV8802 can supply up to 1.6-A peak or 1.1-A RMS output current (with proper heatsinking at 24 V and 25°C) per H-bridge.
A simple parallel digital control interface is compatible with industry-standard devices. Decay mode is programmable to allow braking or coasting of the motor when disabled.
Internal shutdown functions are provided for over current protection, short circuit protection, under voltage lockout and overtemperature.
The DRV8802 is available in a 28-pin HTSSOP package with PowerPAD™ (Eco-friendly: RoHS & no Sb/Br). | 1.1 A | General Purpose | Driver - Fully Integrated, Control and Power Stage | 28-HTSSOP | 45 V | 8.2 V | Surface Mount | Power MOSFET | Brushed DC | 28-PowerTSSOP | 150 C | -40 °C | Parallel | Half Bridge (4) | 8.2 V | 45 V |
