D89116-0101HK-3365/16-D-6
Active3M (TC)

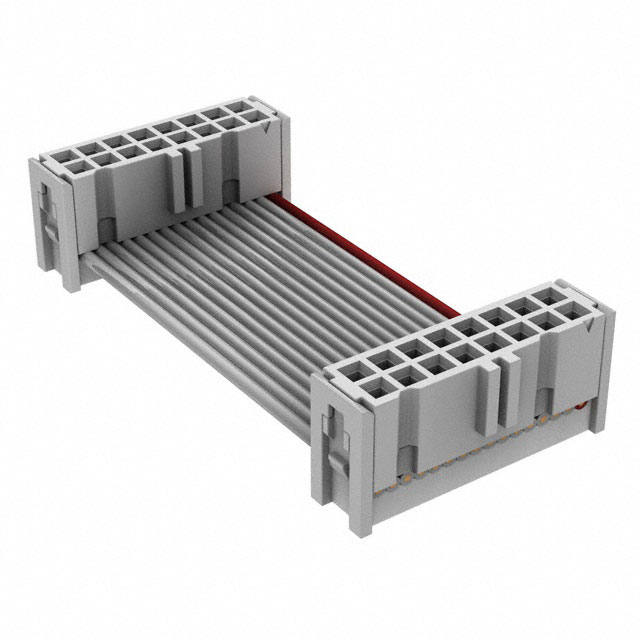

CABLE 16POS SOCKET TO SOCKET 6"
Deep-Dive with AI
Search across all available documentation for this part.
D89116-0101HK-3365/16-D-6
Active3M (TC)
CABLE 16POS SOCKET TO SOCKET 6"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D89116-0101HK-3365/16-D-6 |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Length | 152.4 mm |
| Length | 6 " |
| Length | 0.5 ' |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
D89116 Series
| Part | Number of Rows | Row Spacing [x] | Row Spacing | Cable Termination | Contact Finish | Connector Type | Color | Wire Type | Number of Positions | Mounting Type | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Features | Pitch [x] | Pitch [x] | Pitch - Connector | Pitch - Connector | Length | Length | Length | Pitch - Cable | Pitch - Cable | Shielding | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 2 | 0.1 in | 2.54 mm | IDC | Gold | Receptacle | Gray | Ribbon Cable | 16 | Free Hanging (In-Line) | Female Socket | 15 µin | 0.38 µm | Feed Through | 2.54 mm | 0.1 in | |||||||||
3M (TC) | 2 | IDC | Gold | Socket to Socket | 16 | 15 µin | 0.38 µm | 0.1 in | 2.54 mm | 152.4 mm | 6 " | 0.5 ' | 0.05 " | 1.27 mm | Unshielded | ||||||||||
3M (TC) | 2 | 0.1 in | 2.54 mm | IDC | Gold | Receptacle | Gray | Ribbon Cable | 16 | Free Hanging (In-Line) | Female Socket | 15 µin | 0.38 µm | Feed Through | 2.54 mm | 0.1 in | |||||||||
3M (TC) | 2 | 0.1 in | 2.54 mm | IDC | Gold | Receptacle | Gray | Ribbon Cable | 16 | Free Hanging (In-Line) | Female Socket | 15 µin | 0.38 µm | Feed Through Polarizing Key | 2.54 mm | 0.1 in | |||||||||
3M (TC) | 2 | IDC | Gold | Socket to Cable | 16 | 15 µin | 0.38 µm | 0.1 in | 2.54 mm | 152.4 mm | 6 " | 0.5 ' | 0.05 " | 1.27 mm | Unshielded | ||||||||||
3M (TC) | 2 | IDC | Gold | Socket to Cable | 16 | 15 µin | 0.38 µm | 0.1 in | 2.54 mm | 152.4 mm | 6 " | 0.5 ' | 0.05 " | 1.27 mm | Unshielded | ||||||||||
3M (TC) | 2 | 0.1 in | 2.54 mm | IDC | Gold | Receptacle | Gray | Ribbon Cable | 16 | Free Hanging (In-Line) | Female Socket | 15 µin | 0.38 µm | Feed Through Polarizing Key | 2.54 mm | 0.1 in | |||||||||
3M (TC) | 2 | IDC | Gold | Socket to Socket | 16 | 15 µin | 0.38 µm | 0.1 in | 2.54 mm | 152.4 mm | 6 " | 0.5 ' | 0.05 " | 1.27 mm | Unshielded | ||||||||||
3M (TC) | 2 | IDC | Gold | Socket to Socket | 16 | 15 µin | 0.38 µm | 0.1 in | 2.54 mm | 76.2 mm | 3 " | 0.05 " | 1.27 mm | Unshielded | 0.25 ft | ||||||||||
3M (TC) | 2 | IDC | Gold | Socket to Socket | 16 | 15 µin | 0.38 µm | 0.1 in | 2.54 mm | 152.4 mm | 6 " | 0.5 ' | 0.05 " | 1.27 mm | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.23 | |
| 10 | $ 5.54 | |||
| 25 | $ 5.00 | |||
| 50 | $ 4.63 | |||
| 100 | $ 4.30 | |||
| 250 | $ 3.91 | |||
| 500 | $ 3.64 | |||
| 1000 | $ 3.40 | |||
| 2500 | $ 3.12 | |||
Description
General part information
D89116 Series
16 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
