D89116-0031HK-3365/16-D-6

Active

3M (TC)

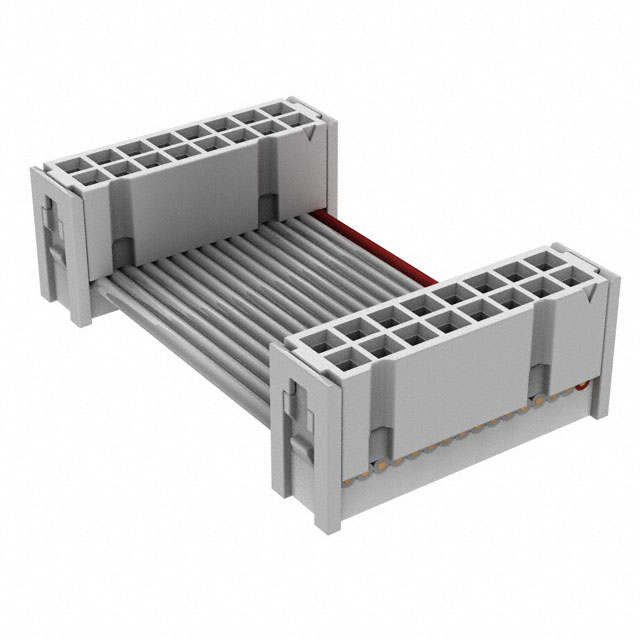

CABLE 16POS SOCKET TO SOCKET 6"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsD89 Series Datasheet Datasheet +1

D89116-0031HK-3365/16-D-6

Active

3M (TC)

CABLE 16POS SOCKET TO SOCKET 6"

Deep-Dive with AI

DocumentsD89 Series Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D89116-0031HK-3365/16-D-6

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	16
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

D89116 Series

Part	Number of Rows	Row Spacing [x]	Row Spacing	Cable Termination	Contact Finish	Connector Type	Color	Wire Type	Number of Positions	Mounting Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Features	Pitch [x]	Pitch [x]	Pitch - Connector	Pitch - Connector	Length	Length	Length	Pitch - Cable	Pitch - Cable	Shielding	Length
3M (TC) D89116-0031HK	2	0.1 in	2.54 mm	IDC	Gold	Receptacle	Gray	Ribbon Cable	16	Free Hanging (In-Line)	Female Socket	15 µin	0.38 µm	Feed Through	2.54 mm	0.1 in
3M (TC) D89116-0131HK-3365/16-D-6	2			IDC	Gold	Socket to Socket			16			15 µin	0.38 µm				0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	Unshielded
3M (TC) D89116-0001HK	2	0.1 in	2.54 mm	IDC	Gold	Receptacle	Gray	Ribbon Cable	16	Free Hanging (In-Line)	Female Socket	15 µin	0.38 µm	Feed Through	2.54 mm	0.1 in
3M (TC) D89116-0131HK	2	0.1 in	2.54 mm	IDC	Gold	Receptacle	Gray	Ribbon Cable	16	Free Hanging (In-Line)	Female Socket	15 µin	0.38 µm	Feed Through Polarizing Key	2.54 mm	0.1 in
3M (TC) D89116-0101HK-3365/16-S-6	2			IDC	Gold	Socket to Cable			16			15 µin	0.38 µm				0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	Unshielded
3M (TC) D89116-0131HK-3365/16-S-6	2			IDC	Gold	Socket to Cable			16			15 µin	0.38 µm				0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	Unshielded
3M (TC) D89116-0101HK	2	0.1 in	2.54 mm	IDC	Gold	Receptacle	Gray	Ribbon Cable	16	Free Hanging (In-Line)	Female Socket	15 µin	0.38 µm	Feed Through Polarizing Key	2.54 mm	0.1 in
3M (TC) D89116-0031HK-3365/16-D-6	2			IDC	Gold	Socket to Socket			16			15 µin	0.38 µm				0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	Unshielded
3M (TC) D89116-0031HK-3365/16-D-3	2			IDC	Gold	Socket to Socket			16			15 µin	0.38 µm				0.1 in	2.54 mm	76.2 mm	3 "		0.05 "	1.27 mm	Unshielded	0.25 ft
3M (TC) D89116-0101HK-3365/16-D-6	2			IDC	Gold	Socket to Socket			16			15 µin	0.38 µm				0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.56
		10	$ 5.79
		25	$ 5.23
		50	$ 4.84
		100	$ 4.50
		250	$ 4.09
		500	$ 3.81
		1000	$ 3.56
		2500	$ 3.27

Description

General part information

D89116 Series

16 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

D89 Series Datasheet

Datasheet

3365 Series Datasheet

Datasheet
