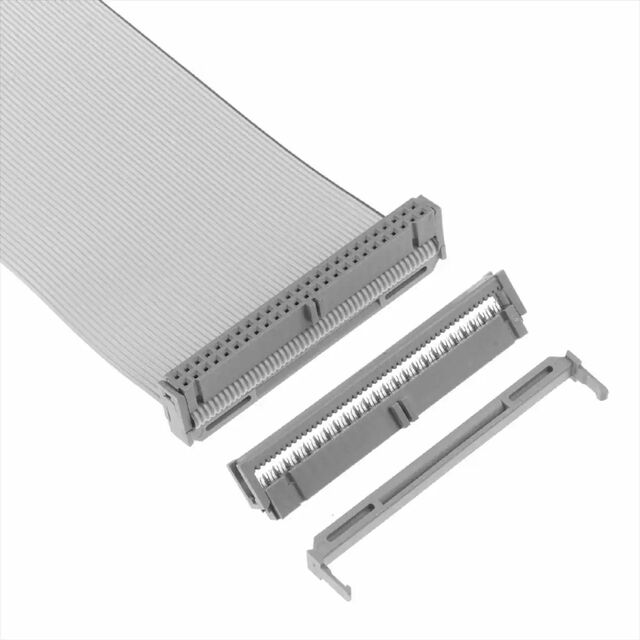

D89116-0001HK

Active

3M (TC)

CONN RCPT 16P IDC 26-28AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

D89116-0001HK

Active

3M (TC)

CONN RCPT 16P IDC 26-28AWG GOLD

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D89116-0001HK

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Type	Female Socket
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

D89116 Series

Part	Number of Rows	Row Spacing [x]	Row Spacing	Cable Termination	Contact Finish	Connector Type	Color	Wire Type	Number of Positions	Mounting Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Features	Pitch [x]	Pitch [x]	Pitch - Connector	Pitch - Connector	Length	Length	Length	Pitch - Cable	Pitch - Cable	Shielding	Length
3M (TC) D89116-0031HK	2	0.1 in	2.54 mm	IDC	Gold	Receptacle	Gray	Ribbon Cable	16	Free Hanging (In-Line)	Female Socket	15 µin	0.38 µm	Feed Through	2.54 mm	0.1 in
3M (TC) D89116-0131HK-3365/16-D-6	2			IDC	Gold	Socket to Socket			16			15 µin	0.38 µm				0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	Unshielded
3M (TC) D89116-0001HK	2	0.1 in	2.54 mm	IDC	Gold	Receptacle	Gray	Ribbon Cable	16	Free Hanging (In-Line)	Female Socket	15 µin	0.38 µm	Feed Through	2.54 mm	0.1 in
3M (TC) D89116-0131HK	2	0.1 in	2.54 mm	IDC	Gold	Receptacle	Gray	Ribbon Cable	16	Free Hanging (In-Line)	Female Socket	15 µin	0.38 µm	Feed Through Polarizing Key	2.54 mm	0.1 in
3M (TC) D89116-0101HK-3365/16-S-6	2			IDC	Gold	Socket to Cable			16			15 µin	0.38 µm				0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	Unshielded
3M (TC) D89116-0131HK-3365/16-S-6	2			IDC	Gold	Socket to Cable			16			15 µin	0.38 µm				0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	Unshielded
3M (TC) D89116-0101HK	2	0.1 in	2.54 mm	IDC	Gold	Receptacle	Gray	Ribbon Cable	16	Free Hanging (In-Line)	Female Socket	15 µin	0.38 µm	Feed Through Polarizing Key	2.54 mm	0.1 in
3M (TC) D89116-0031HK-3365/16-D-6	2			IDC	Gold	Socket to Socket			16			15 µin	0.38 µm				0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	Unshielded
3M (TC) D89116-0031HK-3365/16-D-3	2			IDC	Gold	Socket to Socket			16			15 µin	0.38 µm				0.1 in	2.54 mm	76.2 mm	3 "		0.05 "	1.27 mm	Unshielded	0.25 ft
3M (TC) D89116-0101HK-3365/16-D-6	2			IDC	Gold	Socket to Socket			16			15 µin	0.38 µm				0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.35
		10	$ 1.15
		25	$ 1.08
		50	$ 1.03
		100	$ 0.98
		300	$ 0.90
		500	$ 0.87
		1000	$ 0.84

Description

General part information

D89116 Series

16 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
