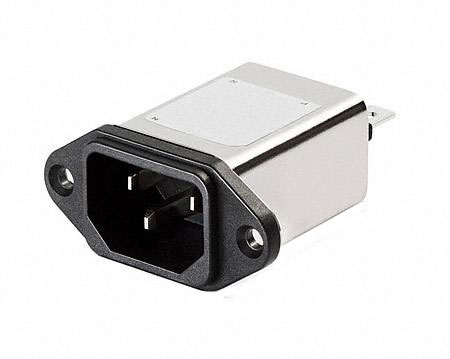

FN9222S1B-10-06
ActiveTE Connectivity Raychem Cable Protection
PWR ENT RCPT IEC320-C14 PANEL QC
Deep-Dive with AI
Search across all available documentation for this part.
FN9222S1B-10-06
ActiveTE Connectivity Raychem Cable Protection
PWR ENT RCPT IEC320-C14 PANEL QC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FN9222S1B-10-06 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | UL, CQC, CSA, ENEC |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Filter | 10 A |
| Features | Bleed Resistor |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 28.5 mm |
| Panel Cutout Dimensions [y] | 21.9 mm |
| Panel Thickness [Max] | 0.059 in |
| Panel Thickness [Max] | 1.5 mm |
| Panel Thickness [Min] | 0.028 in |
| Panel Thickness [Min] | 0.7 mm |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 120 | $ 6.97 | |
Description
General part information
Schaffner FN9222 Series
10 A, Unfiltered, 0 µA Leakage Current @ 250VAC, 50Hz, FASTON, 0 µA Leakage Current @ 120VAC, 60Hz, Schaffner FN9222, Inlet Filters
