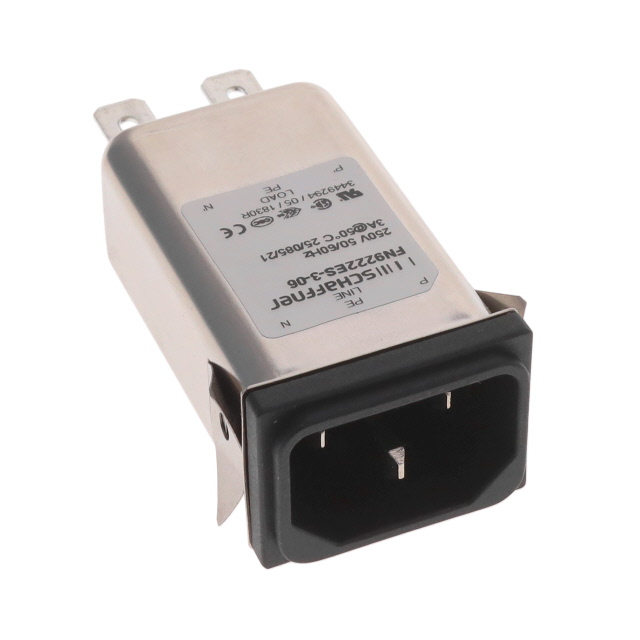

FN9222ES-3-06

Active

TE Connectivity Raychem Cable Protection

PWR ENT RCPT IEC320-C14 PANEL QC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN9222ES-3-06

Active

TE Connectivity Raychem Cable Protection

PWR ENT RCPT IEC320-C14 PANEL QC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN9222ES-3-06

Accomodates a Fuse	False
Approval Agency	UL, CQC, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Filter	3 A
Features	Earth Line Choke
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	29.4 mm
Panel Cutout Dimensions [y]	20.8 mm
Panel Thickness [Max]	0.059 in
Panel Thickness [Max]	1.5 mm
Panel Thickness [Min]	0.028 in
Panel Thickness [Min]	0.7 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

Schaffner FN9222 Series

...

Part	Current Rating - Filter	Mounting Type	Connector Type	Filter Type	Termination	Connector Style	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Material Flammability Rating	Features	Approval Agency	Ingress Protection	Termination	Termination
TE Connectivity Raychem Cable Protection FN9222S1B-12-07	12 A	Panel Mount Snap-In	Male Blades Receptacle	Filtered (EMI RFI) - Commercial Medical	Wire Leads	IEC 320-C14	0.028 in	0.059 in	0.7 mm	1.5 mm	21.9 mm	28.5 mm	UL94 V-2	Bleed Resistor	CQC CSA ENEC UL	IP40
TE Connectivity Raychem Cable Protection FN9222R-3-07	3 A	Flange Panel Mount	Male Blades Receptacle	Filtered (EMI RFI) - Commercial	Wire Leads	IEC 320-C14							UL94 V-2	Bleed Resistor Front or Rear Side Mount	CQC CSA ENEC UL	IP40
TE Connectivity Raychem Cable Protection FN9222S1B-10-06	10 A	Panel Mount Snap-In	Male Blades Receptacle	Filtered (EMI RFI) - Commercial Medical	Quick Connect	IEC 320-C14	0.028 in	0.059 in	0.7 mm	1.5 mm	21.9 mm	28.5 mm	UL94 V-2	Bleed Resistor	CQC CSA ENEC UL	IP40	0.25 in	6.3 mm
TE Connectivity Raychem Cable Protection FN9222-15-06HI	15 A	Flange Panel Mount	Male Blades Receptacle	Filtered (EMI RFI) - Commercial	Quick Connect	IEC 320-C16							UL94 V-2	Front or Rear Side Mount	CE CQC CSA ENEC UL	IP40	0.25 in	6.3 mm
TE Connectivity Raychem Cable Protection FN9222S1R-12-07	12 A	Panel Mount Snap-In	Male Blades Receptacle	Filtered (EMI RFI) - Commercial	Wire Leads	IEC 320-C14	0.028 in	0.059 in	0.7 mm	1.5 mm	21.9 mm	28.5 mm	UL94 V-2	Bleed Resistor	CQC CSA ENEC UL	IP40
TE Connectivity Raychem Cable Protection FN9222EU-1-06	1 A	Flange Panel Mount	Male Blades Receptacle	Filtered (EMI RFI) - Commercial	Quick Connect	IEC 320-C14							UL94 V-2	Earth Line Choke Front or Rear Side Mount	CQC CSA ENEC UL	IP40	0.25 in	6.3 mm
TE Connectivity Raychem Cable Protection FN9222ES-3-06	3 A	Panel Mount Snap-In	Male Blades Receptacle	Filtered (EMI RFI) - Commercial	Quick Connect	IEC 320-C14	0.028 in	0.059 in	0.7 mm	1.5 mm	20.8 mm	29.4 mm	UL94 V-2	Earth Line Choke	CQC CSA ENEC UL	IP40	0.25 in	6.3 mm
TE Connectivity Raychem Cable Protection FN9222-10-06	10 A	Flange Panel Mount	Male Blades Receptacle	Filtered (EMI RFI) - Commercial	Quick Connect	IEC 320-C14							UL94 V-2	Front or Rear Side Mount	CQC CSA ENEC UL	IP40	0.25 in	6.3 mm
TE Connectivity Raychem Cable Protection FN9222ES1R-3-06	3 A	Panel Mount Snap-In	Male Blades Receptacle	Filtered (EMI RFI) - Commercial	Quick Connect	IEC 320-C14	0.028 in	0.059 in	0.7 mm	1.5 mm	21.9 mm	28.5 mm	UL94 V-2	Bleed Resistor Earth Line Choke	CQC CSA ENEC UL	IP40	0.25 in	6.3 mm
TE Connectivity Raychem Cable Protection FN9222ES1-12-06	12 A	Panel Mount Snap-In	Male Blades Receptacle	Filtered (EMI RFI) - Commercial	Quick Connect	IEC 320-C14	0.028 in	0.059 in	0.7 mm	1.5 mm	21.9 mm	28.5 mm	UL94 V-2	Earth Line Choke	CQC CSA ENEC UL	IP40	0.25 in	6.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.67
		10	$ 5.12
		25	$ 4.62
		40	$ 4.39
		80	$ 4.21

Description

General part information

Schaffner FN9222 Series

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
