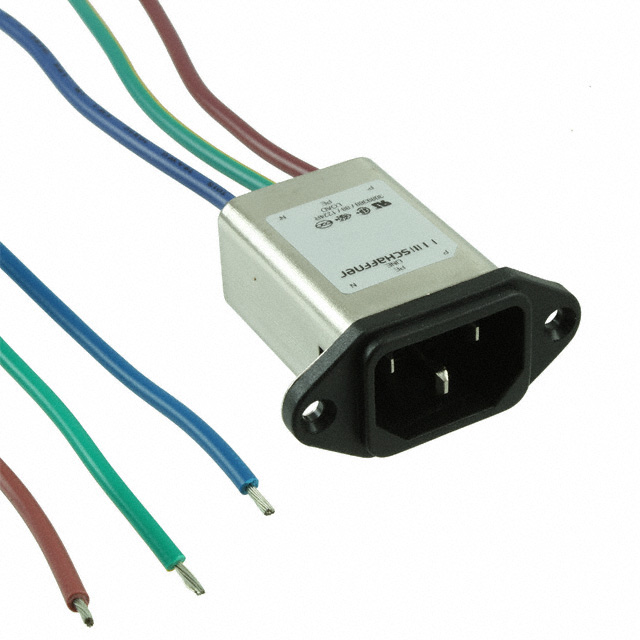

FN9222R-3-07
ActiveTE Connectivity Raychem Cable Protection
PWR ENT RCPT IEC320-C14 PNL WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FN9222R-3-07
ActiveTE Connectivity Raychem Cable Protection
PWR ENT RCPT IEC320-C14 PNL WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FN9222R-3-07 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | UL, CQC, CSA, ENEC |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Filter | 3 A |
| Features | Front or Rear Side Mount, Bleed Resistor |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
Schaffner FN9222 Series
...
| Part | Accomodates a Fuse | Current Rating - Filter | Mounting Type | Connector Type | Filter Type | Termination | Connector Style | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Material Flammability Rating | Features | Approval Agency | Ingress Protection | Termination | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 12 A | Panel Mount Snap-In | Male Blades Receptacle | Filtered (EMI RFI) - Commercial Medical | Wire Leads | IEC 320-C14 | 0.028 in | 0.059 in | 0.7 mm | 1.5 mm | 21.9 mm | 28.5 mm | UL94 V-2 | Bleed Resistor | CQC CSA ENEC UL | IP40 | |||
TE Connectivity Raychem Cable Protection | 3 A | Flange Panel Mount | Male Blades Receptacle | Filtered (EMI RFI) - Commercial | Wire Leads | IEC 320-C14 | UL94 V-2 | Bleed Resistor Front or Rear Side Mount | CQC CSA ENEC UL | IP40 | |||||||||
TE Connectivity Raychem Cable Protection | 10 A | Panel Mount Snap-In | Male Blades Receptacle | Filtered (EMI RFI) - Commercial Medical | Quick Connect | IEC 320-C14 | 0.028 in | 0.059 in | 0.7 mm | 1.5 mm | 21.9 mm | 28.5 mm | UL94 V-2 | Bleed Resistor | CQC CSA ENEC UL | IP40 | 0.25 in | 6.3 mm | |
TE Connectivity Raychem Cable Protection | 15 A | Flange Panel Mount | Male Blades Receptacle | Filtered (EMI RFI) - Commercial | Quick Connect | IEC 320-C16 | UL94 V-2 | Front or Rear Side Mount | CE CQC CSA ENEC UL | IP40 | 0.25 in | 6.3 mm | |||||||
TE Connectivity Raychem Cable Protection | 12 A | Panel Mount Snap-In | Male Blades Receptacle | Filtered (EMI RFI) - Commercial | Wire Leads | IEC 320-C14 | 0.028 in | 0.059 in | 0.7 mm | 1.5 mm | 21.9 mm | 28.5 mm | UL94 V-2 | Bleed Resistor | CQC CSA ENEC UL | IP40 | |||
TE Connectivity Raychem Cable Protection | 1 A | Flange Panel Mount | Male Blades Receptacle | Filtered (EMI RFI) - Commercial | Quick Connect | IEC 320-C14 | UL94 V-2 | Earth Line Choke Front or Rear Side Mount | CQC CSA ENEC UL | IP40 | 0.25 in | 6.3 mm | |||||||
TE Connectivity Raychem Cable Protection | 3 A | Panel Mount Snap-In | Male Blades Receptacle | Filtered (EMI RFI) - Commercial | Quick Connect | IEC 320-C14 | 0.028 in | 0.059 in | 0.7 mm | 1.5 mm | 20.8 mm | 29.4 mm | UL94 V-2 | Earth Line Choke | CQC CSA ENEC UL | IP40 | 0.25 in | 6.3 mm | |
TE Connectivity Raychem Cable Protection | 10 A | Flange Panel Mount | Male Blades Receptacle | Filtered (EMI RFI) - Commercial | Quick Connect | IEC 320-C14 | UL94 V-2 | Front or Rear Side Mount | CQC CSA ENEC UL | IP40 | 0.25 in | 6.3 mm | |||||||
TE Connectivity Raychem Cable Protection | 3 A | Panel Mount Snap-In | Male Blades Receptacle | Filtered (EMI RFI) - Commercial | Quick Connect | IEC 320-C14 | 0.028 in | 0.059 in | 0.7 mm | 1.5 mm | 21.9 mm | 28.5 mm | UL94 V-2 | Bleed Resistor Earth Line Choke | CQC CSA ENEC UL | IP40 | 0.25 in | 6.3 mm | |
TE Connectivity Raychem Cable Protection | 12 A | Panel Mount Snap-In | Male Blades Receptacle | Filtered (EMI RFI) - Commercial | Quick Connect | IEC 320-C14 | 0.028 in | 0.059 in | 0.7 mm | 1.5 mm | 21.9 mm | 28.5 mm | UL94 V-2 | Earth Line Choke | CQC CSA ENEC UL | IP40 | 0.25 in | 6.3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.07 | |
| 10 | $ 8.56 | |||
| 25 | $ 8.02 | |||
| 50 | $ 7.64 | |||
| 120 | $ 7.18 | |||
| 360 | $ 6.65 | |||
| 600 | $ 6.41 | |||
| 1080 | $ 6.15 | |||
Description
General part information
Schaffner FN9222 Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
