109E1724K501

Active

Sanyo Denki America Inc.

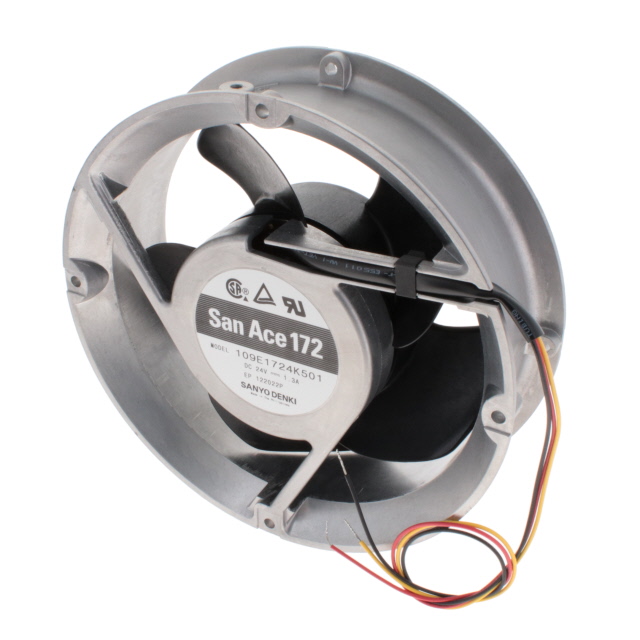

FAN AXIAL 172X51MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Numbering System DC Fan +1

109E1724K501

Active

Sanyo Denki America Inc.

FAN AXIAL 172X51MM 24VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Numbering System DC Fan +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 119.36
		10	$ 106.42
		25	$ 101.66
		50	$ 98.20
		100	$ 94.85

Description

General part information

109E1724 Series

Fan Tubeaxial 24VDC Round - 172mm Dia Ball 300.0 CFM (8.40m³/min) 3 Wire Leads

Documents

Technical documentation and resources

Rotor Balancing

Numbering System DC Fan

Handling Instructions for Fan Motors

Related Document

Specification	109E1724K501	109E1724 Series

Air Flow	8.4 mł/min	4.14 - 9.8 mł/min
Air Flow	300 CFM	148 - 350 CFM
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	1.3 A	0.2 - 580 A
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection	Locked Rotor Sensor, Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Aluminum	Aluminum
Noise	55 dB	36 - 60 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	31.2 W	4.8 - 55.2 W
RPM	4100 RPM	2000 - 4800 RPM
Size / Dimension	Round	Round
Size / Dimension [diameter]	172 mm	172 mm
Static Pressure	0.976 in H2O	0.271 - 1.237 in H2O
Static Pressure	243 Pa	67.6 - 308 Pa
Termination	3 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Weight	1.7 lbs	1.7 lbs
Weight	780 g	780 g
Width [y]	51 mm	51 mm

Part

Power (Watts)

Voltage - Rated

Bearing Type

Air Flow

Width [y]

Current Rating (Amps)

Size / Dimension

Size / Dimension [diameter]

Material - Frame

RPM

Weight

Termination

Operating Temperature [Min]

Operating Temperature [Max]

Operating Temperature [Min]

Operating Temperature [Max]

Fan Type

Static Pressure

Material - Blade

Features

Noise

Lifetime @ Temp.

Approval Agency

Sanyo Denki America Inc.

109E1724M5D01

4.8 W

24 VDC

Ball

4.14 mł/min

148 CFM

51 mm

0.2 A

Round

172 mm

Aluminum

2000 RPM

1.7 lbs

780 g

3 Wire Leads

-20 °C

70 °C

-20 C

70 °C

Tubeaxial

0.271 in H2O

67.6 Pa

Plastic

Locked Rotor Sensor

36 dB

40000 Hrs

CSA, TUV, UL

Sanyo Denki America Inc.

109E1724K501

31.2 W

24 VDC

Ball

8.4 mł/min

300 CFM

51 mm

1.3 A

Round

172 mm

Aluminum

4100 RPM

1.7 lbs

780 g

3 Wire Leads

-20 °C

70 °C

-20 C

70 °C

Tubeaxial

0.976 in H2O

243 Pa

Plastic

Locked Rotor Protection, Speed Sensor (Tach)

55 dB

40000 Hrs

CSA, TUV, UL

Sanyo Denki America Inc.

109E1724H5D01

13.92 W

24 VDC

Ball

6.33 m³/min

226 CFM

51 mm

580 mA

Round

172 mm

Aluminum

1.7 lbs

780 g

3 Wire Leads

-20 °C

70 °C

-20 C

70 °C

Tubeaxial

0.551 in H2O

137.2 Pa

Plastic

Locked Rotor Sensor

47 dB

40000 Hrs

CSA, TUV, UL

Sanyo Denki America Inc.

109E1724K502

31.2 W

24 VDC

Ball

8.4 mł/min

300 CFM

51 mm

1.3 A

Round

172 mm

Aluminum

4100 RPM

1.7 lbs

780 g

2 Wire Leads

-20 °C

70 °C

-20 C

70 °C

Tubeaxial

0.976 in H2O

243 Pa

Plastic

55 dB

40000 Hrs

CSA, TUV, UL

Sanyo Denki America Inc.

109E1724F502

8.4 W

24 VDC

Ball

5.04 mł/min

180 CFM

51 mm

0.35 A

Round

172 mm

Aluminum

2500 RPM

1.7 lbs

780 g

2 Wire Leads

-20 °C

70 °C

-20 C

70 °C

Tubeaxial

0.382 in H2O

95.1 Pa

Plastic

42 dB

40000 Hrs

CSA, TUV, UL

Sanyo Denki America Inc.

109E1724C5D01

55.2 W

24 VDC

Ball

9.8 m³/min

350 CFM

51 mm

2.3 A

Round

172 mm

Aluminum

4800 RPM

1.7 lbs

780 g

3 Wire Leads

-20 °C

70 °C

-20 C

70 °C

Tubeaxial

1.237 in H2O

308 Pa

Plastic

Locked Rotor Sensor

60 dB(A)

40000 Hrs

CSA, TUV, UL

Sanyo Denki America Inc.

109E1724H501

13.92 W

24 VDC

Ball

6.33 m³/min

226 CFM

51 mm

580 mA

Round

172 mm

Aluminum

1.7 lbs

780 g

3 Wire Leads

-20 °C

70 °C

-20 C

70 °C

Tubeaxial

0.551 in H2O

137.2 Pa

Plastic

Locked Rotor Protection, Speed Sensor (Tach)

47 dB

40000 Hrs

CSA, TUV, UL

Part	Power (Watts)	Voltage - Rated	Bearing Type	Air Flow	Air Flow	Width [y]	Current Rating (Amps)	Size / Dimension	Size / Dimension [diameter]	Material - Frame	RPM	Weight	Weight	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Static Pressure	Static Pressure	Material - Blade	Features	Noise	Lifetime @ Temp.	Approval Agency
Sanyo Denki America Inc. 109E1724M5D01	4.8 W	24 VDC	Ball	4.14 mł/min	148 CFM	51 mm	0.2 A	Round	172 mm	Aluminum	2000 RPM	1.7 lbs	780 g	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.271 in H2O	67.6 Pa	Plastic	Locked Rotor Sensor	36 dB	40000 Hrs	CSA, TUV, UL
Sanyo Denki America Inc. 109E1724K501	31.2 W	24 VDC	Ball	8.4 mł/min	300 CFM	51 mm	1.3 A	Round	172 mm	Aluminum	4100 RPM	1.7 lbs	780 g	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.976 in H2O	243 Pa	Plastic	Locked Rotor Protection, Speed Sensor (Tach)	55 dB	40000 Hrs	CSA, TUV, UL
Sanyo Denki America Inc. 109E1724H5D01	13.92 W	24 VDC	Ball	6.33 m³/min	226 CFM	51 mm	580 mA	Round	172 mm	Aluminum		1.7 lbs	780 g	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.551 in H2O	137.2 Pa	Plastic	Locked Rotor Sensor	47 dB	40000 Hrs	CSA, TUV, UL
Sanyo Denki America Inc. 109E1724K502	31.2 W	24 VDC	Ball	8.4 mł/min	300 CFM	51 mm	1.3 A	Round	172 mm	Aluminum	4100 RPM	1.7 lbs	780 g	2 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.976 in H2O	243 Pa	Plastic		55 dB	40000 Hrs	CSA, TUV, UL
Sanyo Denki America Inc. 109E1724F502	8.4 W	24 VDC	Ball	5.04 mł/min	180 CFM	51 mm	0.35 A	Round	172 mm	Aluminum	2500 RPM	1.7 lbs	780 g	2 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.382 in H2O	95.1 Pa	Plastic		42 dB	40000 Hrs	CSA, TUV, UL
Sanyo Denki America Inc. 109E1724C5D01	55.2 W	24 VDC	Ball	9.8 m³/min	350 CFM	51 mm	2.3 A	Round	172 mm	Aluminum	4800 RPM	1.7 lbs	780 g	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	1.237 in H2O	308 Pa	Plastic	Locked Rotor Sensor	60 dB(A)	40000 Hrs	CSA, TUV, UL
Sanyo Denki America Inc. 109E1724H501	13.92 W	24 VDC	Ball	6.33 m³/min	226 CFM	51 mm	580 mA	Round	172 mm	Aluminum		1.7 lbs	780 g	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.551 in H2O	137.2 Pa	Plastic	Locked Rotor Protection, Speed Sensor (Tach)	47 dB	40000 Hrs	CSA, TUV, UL
