109E1724F502

Active

Sanyo Denki America Inc.

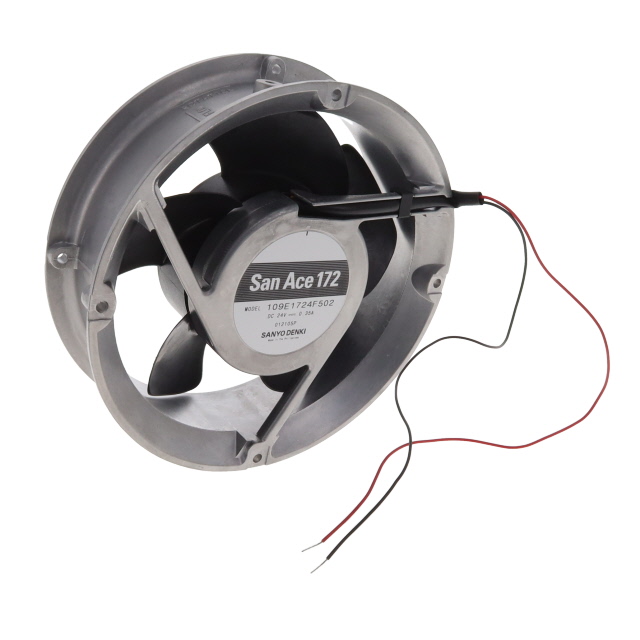

FAN AXIAL 172X51MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Handling Instructions for Fan Motors +1

109E1724F502

Active

Sanyo Denki America Inc.

FAN AXIAL 172X51MM 24VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Handling Instructions for Fan Motors +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	109E1724F502	109E1724 Series

Air Flow	5.04 mł/min	4.14 - 9.8 mł/min
Air Flow	180 CFM	148 - 350 CFM
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.35 A	0.2 - 580 A
Fan Type	Tubeaxial	Tubeaxial
Features	-	Locked Rotor Sensor, Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Aluminum	Aluminum
Noise	42 dB	36 - 60 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	8.4 W	4.8 - 55.2 W
RPM	2500 RPM	2000 - 4800 RPM
Size / Dimension	Round	Round
Size / Dimension [diameter]	172 mm	172 mm
Static Pressure	95.1 Pa	67.6 - 308 Pa
Static Pressure	0.382 in H2O	0.271 - 1.237 in H2O
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Weight	1.7 lbs	1.7 lbs
Weight	780 g	780 g
Width [y]	51 mm	51 mm

109E1724 Series

FAN AXIAL 172X51MM 24VDC WIRE

Part	Power (Watts)	Voltage - Rated	Bearing Type	Air Flow	Air Flow	Width [y]	Current Rating (Amps)	Size / Dimension	Size / Dimension [diameter]	Material - Frame	RPM	Weight	Weight	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Static Pressure	Static Pressure	Material - Blade	Features	Noise	Lifetime @ Temp.	Approval Agency
Sanyo Denki America Inc. 109E1724M5D01	4.8 W	24 VDC	Ball	4.14 mł/min	148 CFM	51 mm	0.2 A	Round	172 mm	Aluminum	2000 RPM	1.7 lbs	780 g	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.271 in H2O	67.6 Pa	Plastic	Locked Rotor Sensor	36 dB	40000 Hrs	CSA, TUV, UL
Sanyo Denki America Inc. 109E1724K501	31.2 W	24 VDC	Ball	8.4 mł/min	300 CFM	51 mm	1.3 A	Round	172 mm	Aluminum	4100 RPM	1.7 lbs	780 g	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.976 in H2O	243 Pa	Plastic	Locked Rotor Protection, Speed Sensor (Tach)	55 dB	40000 Hrs	CSA, TUV, UL
Sanyo Denki America Inc. 109E1724H5D01	13.92 W	24 VDC	Ball	6.33 m³/min	226 CFM	51 mm	580 mA	Round	172 mm	Aluminum		1.7 lbs	780 g	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.551 in H2O	137.2 Pa	Plastic	Locked Rotor Sensor	47 dB	40000 Hrs	CSA, TUV, UL
Sanyo Denki America Inc. 109E1724K502	31.2 W	24 VDC	Ball	8.4 mł/min	300 CFM	51 mm	1.3 A	Round	172 mm	Aluminum	4100 RPM	1.7 lbs	780 g	2 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.976 in H2O	243 Pa	Plastic		55 dB	40000 Hrs	CSA, TUV, UL
Sanyo Denki America Inc. 109E1724F502	8.4 W	24 VDC	Ball	5.04 mł/min	180 CFM	51 mm	0.35 A	Round	172 mm	Aluminum	2500 RPM	1.7 lbs	780 g	2 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.382 in H2O	95.1 Pa	Plastic		42 dB	40000 Hrs	CSA, TUV, UL
Sanyo Denki America Inc. 109E1724C5D01	55.2 W	24 VDC	Ball	9.8 m³/min	350 CFM	51 mm	2.3 A	Round	172 mm	Aluminum	4800 RPM	1.7 lbs	780 g	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	1.237 in H2O	308 Pa	Plastic	Locked Rotor Sensor	60 dB(A)	40000 Hrs	CSA, TUV, UL
Sanyo Denki America Inc. 109E1724H501	13.92 W	24 VDC	Ball	6.33 m³/min	226 CFM	51 mm	580 mA	Round	172 mm	Aluminum		1.7 lbs	780 g	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.551 in H2O	137.2 Pa	Plastic	Locked Rotor Protection, Speed Sensor (Tach)	47 dB	40000 Hrs	CSA, TUV, UL
