109E1724H501

Active

Sanyo Denki America Inc.

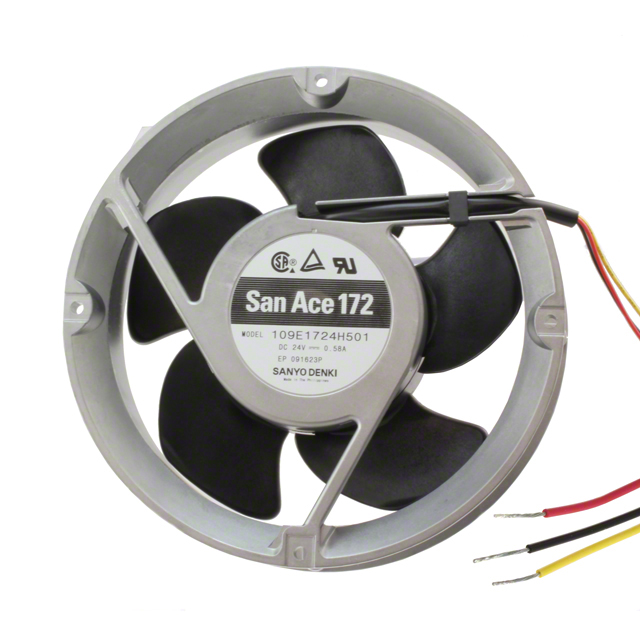

FAN AXIAL 172X51MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Numbering System DC Fan +1

109E1724H501

Active

Sanyo Denki America Inc.

FAN AXIAL 172X51MM 24VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Numbering System DC Fan +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 109.29
		10	$ 100.24

Description

General part information

109E1724 Series

Fan Tubeaxial 24VDC Round - 172mm Dia Ball 226.0 CFM (6.33mł/min) 3 Wire Leads

Documents

Technical documentation and resources

Rotor Balancing

Numbering System DC Fan

Handling Instructions for Fan Motors

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	109E1724H501	109E1724 Series

Air Flow	6.33 m³/min	4.14 - 9.8 mł/min
Air Flow	226 CFM	148 - 350 CFM
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	580 mA	0.2 - 580 A
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection	Locked Rotor Sensor, Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Aluminum	Aluminum
Noise	47 dB	36 - 60 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	13.92 W	4.8 - 55.2 W
RPM	-	2000 - 4800 RPM
Size / Dimension	Round	Round
Size / Dimension [diameter]	172 mm	172 mm
Static Pressure	137.2 Pa	67.6 - 308 Pa
Static Pressure	0.551 in H2O	0.271 - 1.237 in H2O
Termination	3 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Weight	1.7 lbs	1.7 lbs
Weight	780 g	780 g
Width [y]	51 mm	51 mm

109E1724 Series

FAN AXIAL 172X51MM 24VDC WIRE

Part	Power (Watts)	Voltage - Rated	Bearing Type	Air Flow	Air Flow	Width [y]	Current Rating (Amps)	Size / Dimension	Size / Dimension [diameter]	Material - Frame	RPM	Weight	Weight	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Static Pressure	Static Pressure	Material - Blade	Features	Noise	Lifetime @ Temp.	Approval Agency
Sanyo Denki America Inc. 109E1724M5D01	4.8 W	24 VDC	Ball	4.14 mł/min	148 CFM	51 mm	0.2 A	Round	172 mm	Aluminum	2000 RPM	1.7 lbs	780 g	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.271 in H2O	67.6 Pa	Plastic	Locked Rotor Sensor	36 dB	40000 Hrs	CSA, TUV, UL
Sanyo Denki America Inc. 109E1724K501	31.2 W	24 VDC	Ball	8.4 mł/min	300 CFM	51 mm	1.3 A	Round	172 mm	Aluminum	4100 RPM	1.7 lbs	780 g	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.976 in H2O	243 Pa	Plastic	Locked Rotor Protection, Speed Sensor (Tach)	55 dB	40000 Hrs	CSA, TUV, UL
Sanyo Denki America Inc. 109E1724H5D01	13.92 W	24 VDC	Ball	6.33 m³/min	226 CFM	51 mm	580 mA	Round	172 mm	Aluminum		1.7 lbs	780 g	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.551 in H2O	137.2 Pa	Plastic	Locked Rotor Sensor	47 dB	40000 Hrs	CSA, TUV, UL
Sanyo Denki America Inc. 109E1724K502	31.2 W	24 VDC	Ball	8.4 mł/min	300 CFM	51 mm	1.3 A	Round	172 mm	Aluminum	4100 RPM	1.7 lbs	780 g	2 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.976 in H2O	243 Pa	Plastic		55 dB	40000 Hrs	CSA, TUV, UL
Sanyo Denki America Inc. 109E1724F502	8.4 W	24 VDC	Ball	5.04 mł/min	180 CFM	51 mm	0.35 A	Round	172 mm	Aluminum	2500 RPM	1.7 lbs	780 g	2 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.382 in H2O	95.1 Pa	Plastic		42 dB	40000 Hrs	CSA, TUV, UL
Sanyo Denki America Inc. 109E1724C5D01	55.2 W	24 VDC	Ball	9.8 m³/min	350 CFM	51 mm	2.3 A	Round	172 mm	Aluminum	4800 RPM	1.7 lbs	780 g	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	1.237 in H2O	308 Pa	Plastic	Locked Rotor Sensor	60 dB(A)	40000 Hrs	CSA, TUV, UL
Sanyo Denki America Inc. 109E1724H501	13.92 W	24 VDC	Ball	6.33 m³/min	226 CFM	51 mm	580 mA	Round	172 mm	Aluminum		1.7 lbs	780 g	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	0.551 in H2O	137.2 Pa	Plastic	Locked Rotor Protection, Speed Sensor (Tach)	47 dB	40000 Hrs	CSA, TUV, UL
