031-6577

Active

AMPHENOL RF

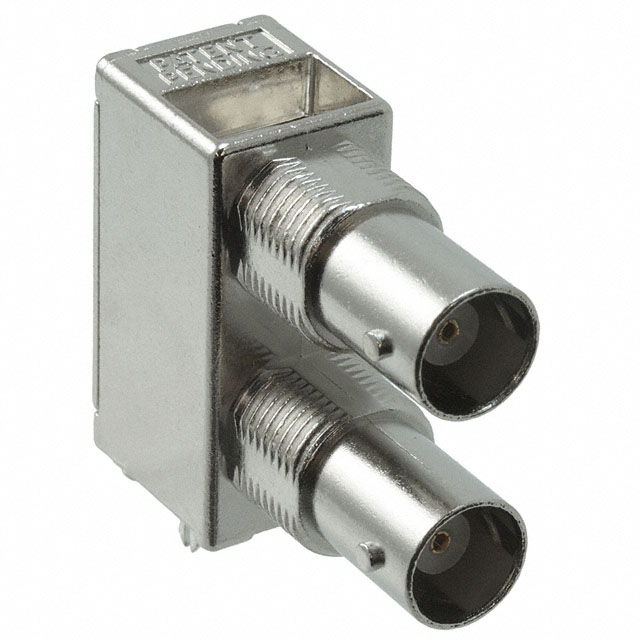

CONN BNC JACK R/A 50 OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

031-6577

Active

AMPHENOL RF

CONN BNC JACK R/A 50 OHM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 20.27
		10	$ 15.61
		25	$ 14.12
		40	$ 13.43
		80	$ 12.49
		230	$ 11.22
		440	$ 10.54
		945	$ 9.81

Description

General part information

031-65 Series

BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-6577	031-65 Series

Body Finish	Nickel	Nickel, Gold
Body Material	Zinc Die Cast	Brass, Polybutylene Terephthalate (PBT), Glass Filled, Zinc Die Cast
Cable Group	-	Belden 7807A, LMR-200
Center Contact Material	Phosphor Bronze	Brass, Beryllium Copper, Phosphor Bronze
Center Contact Plating	Gold	Gold
Connector Style	BNC	RP-TNC, TNC, BNC
Connector Type	Female Socket, Jack	Male Pin, Jack, Plug, Female Socket
Contact Termination	Solder	Solder, Crimp
Dielectric Material	Polypropylene (PP)	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE), Polypropylene (PP)
Fastening Type	Bayonet Lock	Bayonet Lock
Features	-	Board Lock, Isolated
Frequency - Max [Max]	1 GHz	1 - 6000 MHz
Housing Color	Silver	Silver, Gold, White, Natural
Impedance	50 Ohms	50 Ohms
Includes	-	1 Heat Shrink, 1 Insulator, 1 Contact, 1 Connector, 1 Ferrule, 1 Nut, 1 Lockwasher, 1 Gasket, 1 End Cap, 2 Lockwashers, 2 Nuts
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Right Angle, Panel Mount, Free Hanging (In-Line), Through Hole, End Launch, Board Edge
Number of Ports	2	1 - 2
Operating Temperature [Max]	85 °C	85 - 165 °C
Operating Temperature [Min]	-55 °C	-65 - -40 °C
Shield Termination	Solder	Crimp, Solder
Voltage Rating	500 V	500 V

031-65 Series

CONN RPTNC JACK R/A 50OHM SOLDER

Part	Mating Cycles	Body Material	Frequency - Max [Max]	Impedance	Mounting Type	Contact Termination	Ingress Protection	Mounting Feature	Housing Color	Body Finish	Dielectric Material	Number of Ports	Center Contact Plating	Shield Termination	Cable Group	Center Contact Material	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Connector Type	Voltage Rating	Features	Insertion Loss	Fastening Type
AMPHENOL RF 031-6510	500	Brass	6000 MHz	50 Ohms	Panel Mount, Right Angle	Solder	IP67 - Dust Tight, Waterproof	Bulkhead - Front Side Nut	Silver	Nickel	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)	1	Gold	Crimp	Belden 7807A, LMR-200	Brass	RP-TNC	85 °C	-40 °C	1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator, 1 Lockwasher, 1 Nut	Jack, Male Pin	500 V
AMPHENOL RF 031-6502	500	Brass	6000 MHz	50 Ohms	Free Hanging (In-Line)	Solder	IP67 - Dust Tight, Waterproof		Silver	Nickel	Polytetrafluoroethylene (PTFE)	1	Gold	Crimp	Belden 7807A, LMR-200	Beryllium Copper, Brass	RP-TNC	85 °C	-40 °C	1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator	Female Socket, Plug	500 V
AMPHENOL RF 031-6505	500	Brass	6000 MHz	50 Ohms	Free Hanging (In-Line)	Solder	IP67 - Dust Tight, Waterproof		Silver	Nickel	Polytetrafluoroethylene (PTFE)	1	Gold	Crimp	Belden 7807A, LMR-200	Beryllium Copper, Brass	TNC	85 °C	-40 °C	1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator	Female Socket, Jack	500 V
AMPHENOL RF 031-6528	500	Brass	3 GHz	50 Ohms	Panel Mount, Right Angle, Through Hole	Solder	IP67 - Dust Tight, Waterproof	Bulkhead - Front Side Nut	Gold	Gold	Polytetrafluoroethylene (PTFE)	1	Gold	Solder		Beryllium Copper	RP-TNC	165 °C	-65 ░C	1 Connector, 1 Lockwasher, 1 Nut	Jack, Male Pin	500 V
AMPHENOL RF 031-6504	500	Brass	6000 MHz	50 Ohms	Free Hanging (In-Line), Right Angle	Solder	IP67 - Dust Tight, Waterproof		Silver	Nickel	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)	1	Gold	Crimp	Belden 7807A, LMR-200	Beryllium Copper	RP-TNC	85 °C	-40 °C	1 Connector, 1 End Cap, 1 Ferrule, 1 Gasket, 1 Heat Shrink	Female Socket, Plug	500 V
AMPHENOL RF 031-6576	500	Polybutylene Terephthalate (PBT), Glass Filled	1 GHz	50 Ohms	Panel Mount, Right Angle, Through Hole	Solder		Bulkhead - Front Side Nut	Silver, White		Polypropylene (PP)	2	Gold	Solder		Phosphor Bronze	BNC	85 °C	-55 °C		Female Socket, Jack	500 V	Board Lock, Isolated	0.2 dB	Bayonet Lock
AMPHENOL RF 031-6578	500	Zinc Die Cast	1 GHz	50 Ohms	Panel Mount, Right Angle, Through Hole	Solder		Bulkhead - Front Side Nut	Silver	Nickel	Polypropylene (PP)	2	Gold	Solder		Phosphor Bronze	BNC	85 °C	-55 °C		Female Socket, Jack	500 V		0.2 dB	Bayonet Lock
AMPHENOL RF 031-6507	500	Brass	6000 MHz	50 Ohms		Solder	IP67 - Dust Tight, Waterproof	Bulkhead - Front Side Nut	Silver	Nickel	Polytetrafluoroethylene (PTFE)	1	Gold	Crimp	Belden 7807A, LMR-200	Beryllium Copper	TNC	85 °C	-40 °C	1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator, 1 Lockwasher, 1 Nut	Female Socket, Jack	500 V
AMPHENOL RF 031-6577	500	Zinc Die Cast	1 GHz	50 Ohms	Panel Mount, Right Angle, Through Hole	Solder		Bulkhead - Front Side Nut	Silver	Nickel	Polypropylene (PP)	2	Gold	Solder		Phosphor Bronze	BNC	85 °C	-55 °C		Female Socket, Jack	500 V		0.2 dB	Bayonet Lock
AMPHENOL RF 031-6530	500	Brass	3 GHz	50 Ohms	Board Edge, End Launch, Panel Mount	Solder	IP67 - Dust Tight, Waterproof	Bulkhead - Front Side Nut	Gold	Gold	Polytetrafluoroethylene (PTFE)	1	Gold	Solder		Beryllium Copper	TNC	165 °C	-65 ░C	1 Connector, 1 Lockwasher, 1 Nut	Female Socket, Jack	500 V
