031-6502

Active

Amphenol RF

CONN RPTNC PLUG STR 50OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

031-6502

Active

Amphenol RF

CONN RPTNC PLUG STR 50OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-6502

Body Finish	Nickel
Body Material	Brass
Cable Group	Belden 7807A, LMR-200
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-TNC
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms

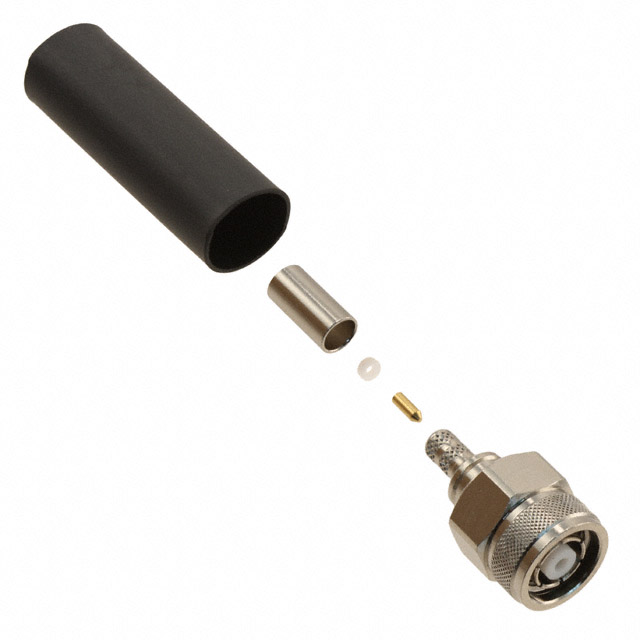

Includes	1 Ferrule, 1 Connector, 1 Contact, 1 Heat Shrink, 1 Insulator
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	500 V

031-65 Series

Part	Dielectric Material	Housing Color	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Ingress Protection	Mating Cycles	Cable Group	Contact Termination	Connector Type	Body Finish	Center Contact Material	Impedance	Includes	Voltage Rating	Body Material	Shield Termination	Mounting Type	Frequency - Max [Max]	Connector Style	Mounting Feature	Insertion Loss	Fastening Type	Features
Amphenol RF 031-6504	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Silver	Gold	85 °C	-40 °C	1	IP67 - Dust Tight Waterproof	500	Belden 7807A LMR-200	Solder	Female Socket Plug	Nickel	Beryllium Copper	50 Ohms	1 Connector 1 End Cap 1 Ferrule 1 Gasket 1 Heat Shrink	500 V	Brass	Crimp	Free Hanging (In-Line) Right Angle	6000 MHz	RP-TNC
Amphenol RF 031-6528	Polytetrafluoroethylene (PTFE)	Gold	Gold	165 °C	-65 ░C	1	IP67 - Dust Tight Waterproof	500		Solder	Jack Male Pin	Gold	Beryllium Copper	50 Ohms	1 Connector 1 Lockwasher 1 Nut	500 V	Brass	Solder	Panel Mount Right Angle Through Hole	3 GHz	RP-TNC	Bulkhead - Front Side Nut
Amphenol RF 031-6502	Polytetrafluoroethylene (PTFE)	Silver	Gold	85 °C	-40 °C	1	IP67 - Dust Tight Waterproof	500	Belden 7807A LMR-200	Solder	Female Socket Plug	Nickel	Beryllium Copper Brass	50 Ohms	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator	500 V	Brass	Crimp	Free Hanging (In-Line)	6000 MHz	RP-TNC
Amphenol RF 031-6578	Polypropylene (PP)	Silver	Gold	85 °C	-55 °C	2		500		Solder	Female Socket Jack	Nickel	Phosphor Bronze	50 Ohms		500 V	Zinc Die Cast	Solder	Panel Mount Right Angle Through Hole	1 GHz	BNC	Bulkhead - Front Side Nut	0.2 dB	Bayonet Lock
Amphenol RF 031-6506	Polytetrafluoroethylene (PTFE)	Silver	Gold	85 °C	-40 °C	1	IP67 - Dust Tight Waterproof	500	Belden 7807A LMR-200	Solder	Jack Male Pin	Nickel	Beryllium Copper Brass	50 Ohms	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator	500 V	Brass	Crimp	Free Hanging (In-Line)	6000 MHz	RP-TNC
Amphenol RF 031-6530	Polytetrafluoroethylene (PTFE)	Gold	Gold	165 °C	-65 ░C	1	IP67 - Dust Tight Waterproof	500		Solder	Female Socket Jack	Gold	Beryllium Copper	50 Ohms	1 Connector 1 Lockwasher 1 Nut	500 V	Brass	Solder	Board Edge End Launch Panel Mount	3 GHz	TNC	Bulkhead - Front Side Nut
Amphenol RF 031-6590	Polypropylene (PP)	Silver	Gold	85 °C	-55 °C	2		500		Solder	Female Socket Jack	Nickel	Phosphor Bronze	50 Ohms	1 Connector 2 Lockwashers 2 Nuts	500 V	Zinc Die Cast	Solder	Panel Mount Right Angle Through Hole	1 GHz	BNC	Bulkhead - Front Side Nut	0.2 dB	Bayonet Lock
Amphenol RF 031-6501-EE	Polytetrafluoroethylene (PTFE)	Natural	Gold	85 °C	-40 °C	1	IP67 - Dust Tight Waterproof	500	LMR-200	Crimp	Male Pin Plug	Nickel	Brass	50 Ohms			Brass	Crimp	Free Hanging (In-Line) Right Angle	6000 MHz	TNC
Amphenol RF 031-6576	Polypropylene (PP)	Silver White	Gold	85 °C	-55 °C	2		500		Solder	Female Socket Jack		Phosphor Bronze	50 Ohms		500 V	Polybutylene Terephthalate (PBT) Glass Filled	Solder	Panel Mount Right Angle Through Hole	1 GHz	BNC	Bulkhead - Front Side Nut	0.2 dB	Bayonet Lock	Board Lock Isolated
Amphenol RF 031-6577	Polypropylene (PP)	Silver	Gold	85 °C	-55 °C	2		500		Solder	Female Socket Jack	Nickel	Phosphor Bronze	50 Ohms		500 V	Zinc Die Cast	Solder	Panel Mount Right Angle Through Hole	1 GHz	BNC	Bulkhead - Front Side Nut	0.2 dB	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 23.33

Description

General part information

031-65 Series

RP-TNC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

No documents available
