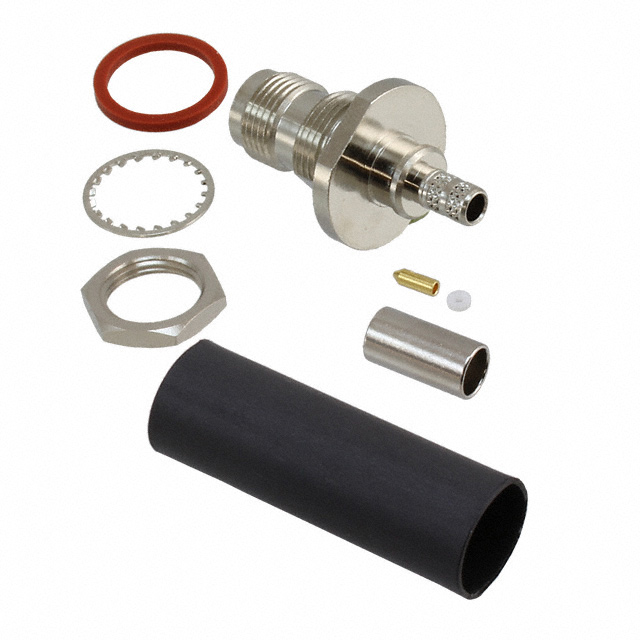

031-6507 - 031-6507

031-6507

Active
Amphenol RF

CONNECTOR: TNC; SOCKET; FEMALE; STRAIGHT; 50Ω; IP67; GOLD-PLATED

Deep-Dive with AI

Search across all available documentation for this part.

031-6507 - 031-6507

031-6507

Active
Amphenol RF

CONNECTOR: TNC; SOCKET; FEMALE; STRAIGHT; 50Ω; IP67; GOLD-PLATED

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification031-6507
Body FinishNickel
Body MaterialBrass
Cable GroupBelden 7807A, LMR-200
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleTNC
Connector TypeFemale Socket, Jack
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Frequency - Max [Max]6000 MHz
Housing ColorSilver
Impedance50 Ohms
Includes1 Heat Shrink, 1 Insulator, 1 Contact, 1 Connector, 1 Ferrule, 1 Nut, 1 Lockwasher
Ingress ProtectionIP67 - Dust Tight, Waterproof
Mating Cycles500
Mounting FeatureBulkhead - Front Side Nut
Number of Ports1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Shield TerminationCrimp
Voltage Rating500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 29.75
10$ 26.05
25$ 24.92
50$ 24.12
100$ 23.32
300$ 22.03
TMEN/A 100$ 34.42

Description

General part information

031-6507

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Documents

Technical documentation and resources

No documents available
