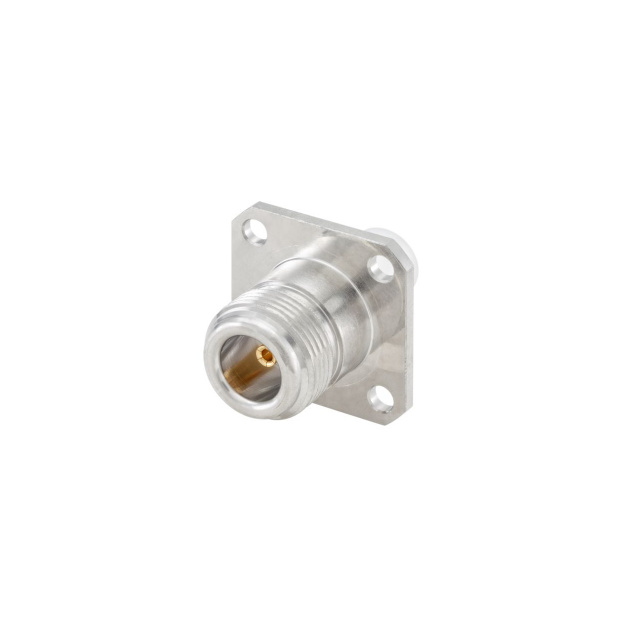

Specification	53K409-500N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	11 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

Type N Series

Part	Impedance	Mounting Type	Contact Termination	Number of Ports	Connector Style	Cable Group	Housing Color	Center Contact Material	Shield Termination	Connector Type	Frequency - Max	Fastening Type	Body Finish	Voltage Rating	Includes Total Count	Includes	Operating Temperature (Max)	Operating Temperature (Min)	Body Material	Dielectric Material	Mating Cycles	Center Contact Plating	Insertion Loss	Convert To (Adapter End)	Convert To (Adapter End) Count	Center Gender	Adapter Type	Convert From (Adapter End)	Conversion Type	Style	Adapter Series	Cable Group Diameter (Semi Rigid)	Ingress Protection Description	Ingress Protection IP Rating	Mounting Feature
Rosenberger 53S205-317N5	50 Ohm	Free Hanging (In-Line) Right Angle	Solder	1	N Type	393 RG-214	Silver	Brass	Crimp	Male Pin Plug	11 GHz	Threaded
Rosenberger 53K101-115N5	50 Ohm	Free Hanging (In-Line)	Crimp	1	N Type	RG-213	Silver	Beryllium Copper	Crimp	Female Socket Jack	11 GHz	Threaded	White Bronze	500 V	3 pcs	Connector Contact Ferrule	155 °C	-55 °C	Brass	Polytetrafluoroethylene (PTFE)	500 cycles	Gold
Rosenberger 53S205-306N5	50 Ohm	Free Hanging (In-Line) Right Angle	Solder	1	N Type	141 RG-58C	Silver	Brass	Crimp	Male Pin Plug	11 GHz	Threaded	White Bronze	500 V	3 pcs	Connector End Cap Ferrule	155 °C	-55 °C	Brass	Polytetrafluoroethylene (PTFE)	500 cycles	Gold	0.05 dB
Rosenberger 53S301-K00N5	50 Ohm	Free Hanging (In-Line)									11 GHz	Threaded										Gold		Female Socket N Jack	2 count	Female Male	Plug to Jack	Male Pin N Plug	Same Series	T-Shape	Dual N to N
Rosenberger 53S101-272N5	50 Ohm	Free Hanging (In-Line)	Solder	1	N Type	RG-402	Silver	Brass	Solder	Male Pin Plug	11 GHz	Threaded																				0.141 in
Rosenberger 53K507-106N5	50 Ohm	Panel Mount	Crimp	1	N Type	141 RG-58C	Silver	Beryllium Copper	Crimp	Female Socket Jack	11 GHz	Threaded	White Bronze	500 V	5 pcs	Connector Contact Ferrule Lockwasher Nut	110 °C	-25 °C	Brass	Polytetrafluoroethylene (PTFE)	500 cycles	Gold	0.05 dB										Dust Tight Waterproof	IP67	Bulkhead Front Side Nut
Rosenberger 53K409-500N5	50 Ohm	Panel Mount	Solder	1	N Type		Silver	Beryllium Copper	Solder	Female Socket Jack	11 GHz	Threaded	White Bronze	500 V			155 °C	-55 °C	Brass	Polytetrafluoroethylene (PTFE)	500 cycles	Gold													Flange
Rosenberger 53S205-308N5	50 Ohm	Free Hanging (In-Line) Right Angle	Solder	1	N Type	223 400 RG-142B	Silver	Brass	Crimp	Male Pin Plug	11 GHz	Threaded	White Bronze	500 V	3 pcs	Connector End Cap Ferrule	155 °C	-55 °C	Brass	Polytetrafluoroethylene (PTFE)	500 cycles	Gold	0.05 dB
Rosenberger 53K504-272N5	50 Ohm	Panel Mount	Solder	1	N Type	RG-402	Silver	Beryllium Copper	Solder	Female Socket Jack	11 GHz	Threaded	White Bronze	500 V	3 pcs	Connector Lockwasher Nut	110 °C	-25 °C	Brass	Polytetrafluoroethylene (PTFE)	500 cycles	Gold	0.05 dB									0.141 in	Dust Tight Waterproof	IP67	Bulkhead Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

53K409-500N5 | Datasheet
