53K101-115N5

Active

Rosenberger

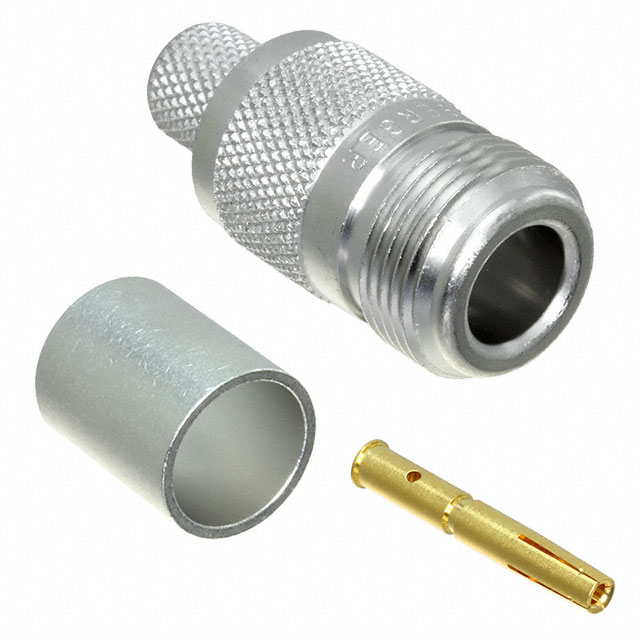

CONN N TYPE JACK STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Rosenberger

CONN N TYPE JACK STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	53K101-115N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-213
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Frequency - Max [Max]	Dielectric Material	Center Contact Material	Body Material	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Connector Style	Cable Group	Mounting Type	Connector Type	Impedance	Housing Color	Shield Termination	Center Contact Plating	Mating Cycles	Includes	Voltage Rating	Number of Ports
Rosenberger 53K101-115N5	11 GHz	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Brass	White Bronze	155 °C	-55 °C	Crimp	N Type	RG-213	Free Hanging (In-Line)	Female Socket Jack	50 Ohms	Silver	Crimp	Gold	500	1 Connector 1 Contact 1 Ferrule	500 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
