53K507-106N5

Active

Rosenberger

CONN N TYPE JACK STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Rosenberger

CONN N TYPE JACK STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	53K507-106N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	141
Cable Group	RG-58C
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms

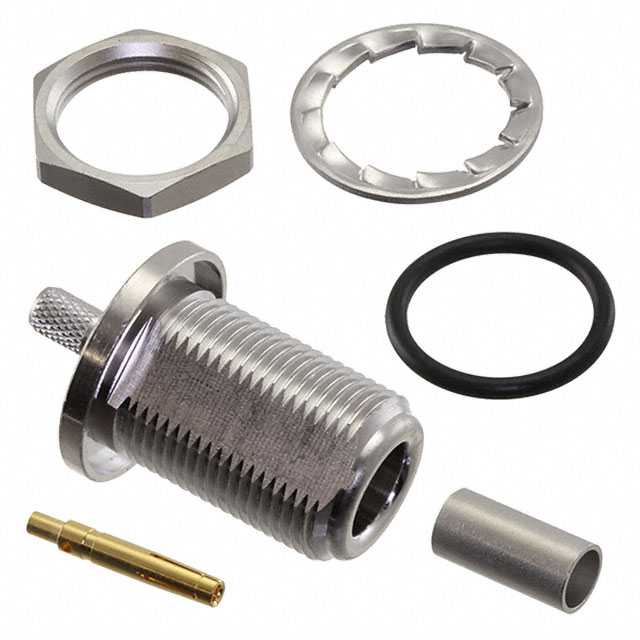

Includes	1 Connector, 1 Lockwasher, 1 Ferrule, 1 Contact, 1 Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Insertion Loss	0.05 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-25 °C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Housing Color	Center Contact Material	Insertion Loss	Mounting Feature	Includes	Body Finish	Connector Style	Body Material	Cable Group	Cable Group	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Voltage Rating	Ingress Protection	Shield Termination	Dielectric Material	Frequency - Max [Max]	Connector Type	Number of Ports	Impedance	Mating Cycles
Rosenberger 53K507-106N5	Silver	Beryllium Copper	0.05 dB	Bulkhead - Front Side Nut	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut	White Bronze	N Type	Brass	141	RG-58C	Gold	-25 °C	110 °C	Crimp	500 V	IP67 - Dust Tight Waterproof	Crimp	Polytetrafluoroethylene (PTFE)	11 GHz	Female Socket Jack	1	50 Ohms	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
