JWL11RBA

Active

NKK Switches

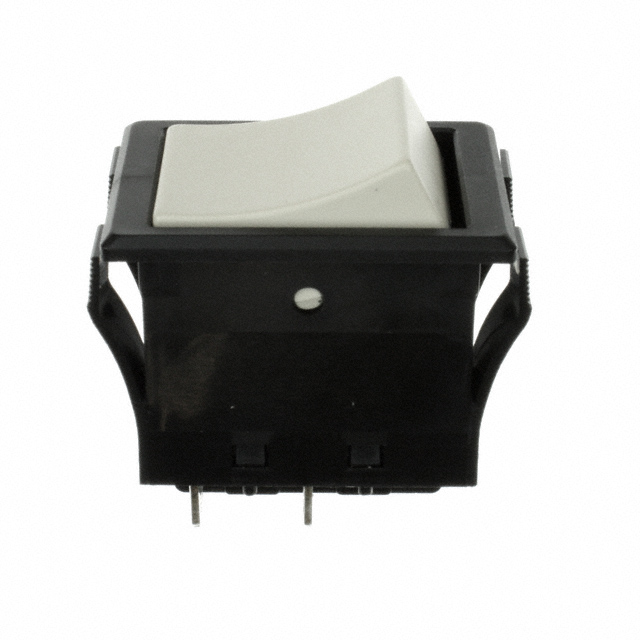

SWITCH ROCKER SPST 16A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JWL11RBA

Active

NKK Switches

SWITCH ROCKER SPST 16A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JWL11RBA

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	UL, VDE, CSA
Circuit	SPST
Color - Actuator/Cap	Ivory
Current Rating (Amps)	16 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Ingress Protection	Dust Proof
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	29.5 mm
Panel Cutout Dimensions [y]	20.5 mm
Switch Function	On-Off
Termination Style	Solder, Quick Connect
Termination Style	4.7 mm, 0.187 in
Voltage Rating - AC	125 V

JWL11R Series

Part	Electrical Life	Termination Style	Termination Style	Voltage Rating - AC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Circuit	Mechanical Life	Approval Agency	Switch Function	Color - Actuator/Cap	Actuator Type	Ingress Protection	Actuator Marking	Features	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mounting Type
NKK Switches JWL11RA1A	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Black	Concave (Curved)	Dust Proof	O I	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RHA/UCV	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off		Concave (Curved)	Dust Proof	No Marking	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RC2A	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Red	Concave (Curved)	Dust Proof	O -	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RAA/UCV	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Black	Concave (Curved)	Dust Proof	No Marking	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RAA/U	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Black	Concave (Curved)	Dust Proof	No Marking	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RCA/UCV-WL	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Red	Concave (Curved)	Dust Proof	No Marking		70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RA1A/UCV	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Black	Concave (Curved)	Dust Proof	O I	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RBA	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Ivory	Concave (Curved)	Dust Proof	No Marking	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RBB	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Ivory	Concave (Curved)	Dust Proof	No Marking	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RC1A	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Red	Concave (Curved)	Dust Proof	O I	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.10
		10	$ 8.17
		25	$ 7.80
		40	$ 7.46
		80	$ 7.17
		230	$ 6.79
		440	$ 6.29
		945	$ 5.99
Newark	Each	1	$ 16.66
		5	$ 15.54
		10	$ 14.29
		25	$ 13.05
		50	$ 11.80
		100	$ 10.42
		250	$ 9.36

Description

General part information

JWL11R Series

Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources
