JWL11RHA/UCV

Active

NKK Switches

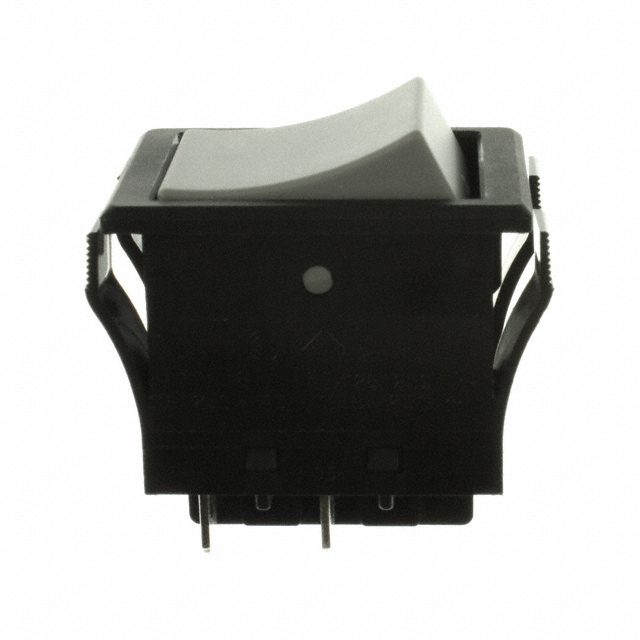

SWITCH ROCKER SPST 16A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JWL11RHA/UCV

Active

NKK Switches

SWITCH ROCKER SPST 16A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JWL11RHA/UCV

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	UL, VDE, CSA
Circuit	SPST
Current Rating (Amps)	16 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Ingress Protection	Dust Proof
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	29.5 mm
Panel Cutout Dimensions [y]	20.5 mm
Switch Function	On-Off
Termination Style	Solder, Quick Connect
Termination Style	4.7 mm, 0.187 in
Voltage Rating - AC	125 V

JWL11R Series

Part	Electrical Life	Termination Style	Termination Style	Voltage Rating - AC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Circuit	Mechanical Life	Approval Agency	Switch Function	Color - Actuator/Cap	Actuator Type	Ingress Protection	Actuator Marking	Features	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mounting Type
NKK Switches JWL11RA1A	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Black	Concave (Curved)	Dust Proof	O I	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RHA/UCV	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off		Concave (Curved)	Dust Proof	No Marking	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RC2A	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Red	Concave (Curved)	Dust Proof	O -	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RAA/UCV	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Black	Concave (Curved)	Dust Proof	No Marking	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RAA/U	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Black	Concave (Curved)	Dust Proof	No Marking	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RCA/UCV-WL	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Red	Concave (Curved)	Dust Proof	No Marking		70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RA1A/UCV	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Black	Concave (Curved)	Dust Proof	O I	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RBA	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Ivory	Concave (Curved)	Dust Proof	No Marking	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RBB	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Ivory	Concave (Curved)	Dust Proof	No Marking	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RC1A	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Red	Concave (Curved)	Dust Proof	O I	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.42
		10	$ 8.49
		25	$ 8.13
		40	$ 7.73
		80	$ 7.42
		230	$ 6.98
		440	$ 6.44
		945	$ 6.22
Newark	Each	1	$ 17.63
		5	$ 16.44
		10	$ 15.12
		25	$ 13.80
		50	$ 12.48
		100	$ 11.03
		250	$ 9.90

Description

General part information

JWL11R Series

Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources
