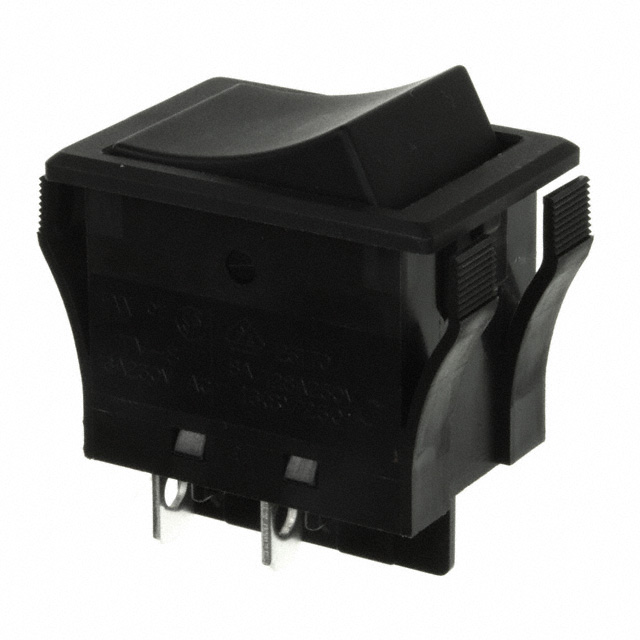

JWL11RAA/UCV

Active

NKK Switches

SWITCH ROCKER ON NONE OFF SPST QUICK CONNECT/SOLDER LUG CURVED ROCKER 16A 250VAC 72VDC 25000CYCLES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

JWL11RAA/UCV

Active

NKK Switches

SWITCH ROCKER ON NONE OFF SPST QUICK CONNECT/SOLDER LUG CURVED ROCKER 16A 250VAC 72VDC 25000CYCLES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JWL11RAA/UCV

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	UL, VDE, CSA
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Ingress Protection	Dust Proof
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	29.5 mm
Panel Cutout Dimensions [y]	20.5 mm
Switch Function	On-Off
Termination Style	Solder, Quick Connect
Termination Style	4.7 mm, 0.187 in
Voltage Rating - AC	125 V

JWL11R Series

Part	Electrical Life	Termination Style	Termination Style	Voltage Rating - AC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Circuit	Mechanical Life	Approval Agency	Switch Function	Color - Actuator/Cap	Actuator Type	Ingress Protection	Actuator Marking	Features	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mounting Type
NKK Switches JWL11RA1A	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Black	Concave (Curved)	Dust Proof	O I	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RHA/UCV	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off		Concave (Curved)	Dust Proof	No Marking	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RC2A	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Red	Concave (Curved)	Dust Proof	O -	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RAA/UCV	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Black	Concave (Curved)	Dust Proof	No Marking	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RAA/U	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Black	Concave (Curved)	Dust Proof	No Marking	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RCA/UCV-WL	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Red	Concave (Curved)	Dust Proof	No Marking		70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RA1A/UCV	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Black	Concave (Curved)	Dust Proof	O I	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RBA	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Ivory	Concave (Curved)	Dust Proof	No Marking	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RBB	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Ivory	Concave (Curved)	Dust Proof	No Marking	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In
NKK Switches JWL11RC1A	25000 Steps	Quick Connect Solder	0.187 in 4.7 mm	125 V	29.5 mm	20.5 mm	SPST	25000 Steps	CSA UL VDE	On-Off	Red	Concave (Curved)	Dust Proof	O I	Epoxy Sealed Terminals	70 °C	-25 °C	16 A	Panel Mount Snap-In

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 1.44
		10	$ 1.43
		25	$ 1.43
Digikey	Bulk	1	$ 9.10
		10	$ 8.17
		25	$ 7.80
		50	$ 7.46
		100	$ 7.17
		250	$ 6.79
		500	$ 6.29
		1000	$ 5.99
Newark	Each	1	$ 16.66
		5	$ 15.54
		10	$ 14.29
		25	$ 13.05
		50	$ 11.80
		100	$ 10.42
		250	$ 9.36

Description

General part information

JWL11R Series

Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Product Change Notice EN

Datasheet
