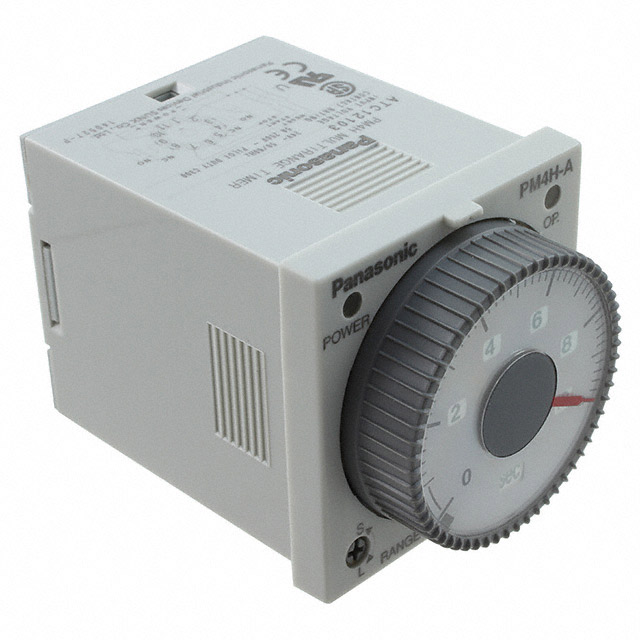

Specification	PM4HA-H-24V

Circuit	DPDT (2 Form C)
Contact Rating (Current)	5 A
Delay Time (Maximum)	500 Hrs
Delay Time (Minimum)	1 Sec
Function	Programmable (Multi-Function)
Mounting Type	Socketable
Pin Count	11 pins
Relay Type	Mechanical Relay
Termination Style	Plug In
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage, Trigger Signal
Voltage - Supply	24 VDC
Voltage - Supply (Option 1)	24 VAC
Voltage - Supply (Option 2)	24 DC

PM4HA Series

Part	Pin Count	Termination Style	Mounting Type	Circuit	Contact Rating (Current)	Voltage - Supply (Option 1)	Voltage - Supply	Voltage - Supply (Option 2)	Relay Type	Delay Time (Minimum)	Delay Time (Maximum)	Timing Adjustment Method	Timing Initiate Method	Function	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)
Panasonic Industrial Automation Sales PM4HA-H-24VW	11 pins	Plug In	Socketable	DPDT (2 Form C)	5 A	24 VAC	24 VDC	24 DC	Mechanical Relay	1 Sec	500 Hrs	Hand Dial	Input Voltage Trigger Signal	Programmable (Multi-Function)
Panasonic Industrial Automation Sales PM4HA-H-DC12V	11 pins	Plug In	Socketable	DPDT (2 Form C)	5 A		12 VDC		Mechanical Relay	1 Sec	500 Hrs	Hand Dial	Input Voltage Trigger Signal	Programmable (Multi-Function)
Panasonic Industrial Automation Sales PM4HA-H-24VS		Screw Terminal	Panel Mount	DPDT (2 Form C)	5 A	24 VAC	24 VDC	24 DC	Mechanical Relay	1 Sec	500 Hrs	Hand Dial	Input Voltage Trigger Signal	Programmable (Multi-Function)
Panasonic Industrial Automation Sales PM4HA-H-24VSW		Screw Terminal	Panel Mount	DPDT (2 Form C)	5 A	24 VAC	24 VDC	24 DC	Mechanical Relay	1 Sec	500 Hrs	Hand Dial	Input Voltage Trigger Signal	Programmable (Multi-Function)
Panasonic Industrial Automation Sales PM4HA-H-24V	11 pins	Plug In	Socketable	DPDT (2 Form C)	5 A	24 VAC	24 VDC	24 DC	Mechanical Relay	1 Sec	500 Hrs	Hand Dial	Input Voltage Trigger Signal	Programmable (Multi-Function)
Panasonic Industrial Automation Sales PM4HA-H-AC240V	11 pins	Plug In	Socketable	DPDT (2 Form C)	5 A				Mechanical Relay	1 Sec	500 Hrs	Hand Dial	Input Voltage Trigger Signal	Programmable (Multi-Function)	100 VAC	240 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PM4HA-H-24V | Datasheet
