PM4HA Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

RELAY TIME DELAY 500HR 5A 250V

Part	Pin Count	Termination Style	Mounting Type	Circuit	Contact Rating (Current)	Voltage - Supply (Option 1)	Voltage - Supply	Voltage - Supply (Option 2)	Relay Type	Delay Time (Minimum)	Delay Time (Maximum)	Timing Adjustment Method	Timing Initiate Method	Function	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)
Panasonic Industrial Automation Sales PM4HA-H-24VW	11 pins	Plug In	Socketable	DPDT (2 Form C)	5 A	24 VAC	24 VDC	24 DC	Mechanical Relay	1 Sec	500 Hrs	Hand Dial	Input Voltage Trigger Signal	Programmable (Multi-Function)

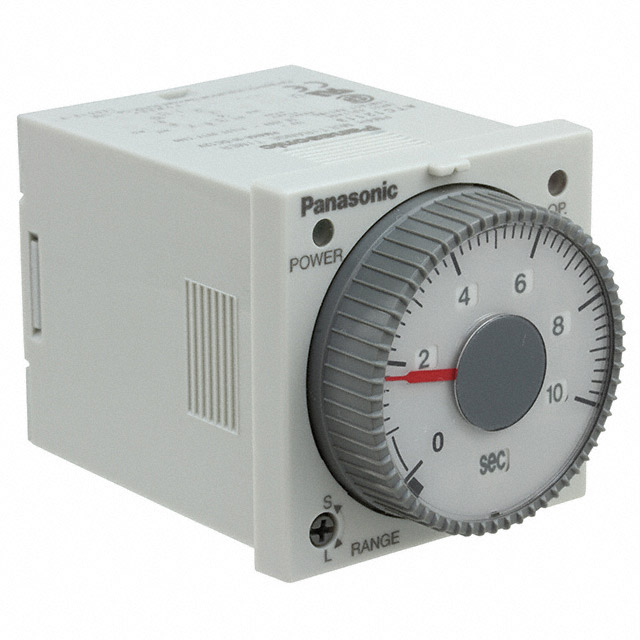

Panasonic Industrial Automation Sales PM4HA-H-DC12V	11 pins	Plug In	Socketable	DPDT (2 Form C)	5 A		12 VDC		Mechanical Relay	1 Sec	500 Hrs	Hand Dial	Input Voltage Trigger Signal	Programmable (Multi-Function)
Panasonic Industrial Automation Sales PM4HA-H-24VS		Screw Terminal	Panel Mount	DPDT (2 Form C)	5 A	24 VAC	24 VDC	24 DC	Mechanical Relay	1 Sec	500 Hrs	Hand Dial	Input Voltage Trigger Signal	Programmable (Multi-Function)
Panasonic Industrial Automation Sales PM4HA-H-24VSW		Screw Terminal	Panel Mount	DPDT (2 Form C)	5 A	24 VAC	24 VDC	24 DC	Mechanical Relay	1 Sec	500 Hrs	Hand Dial	Input Voltage Trigger Signal	Programmable (Multi-Function)
Panasonic Industrial Automation Sales PM4HA-H-24V	11 pins	Plug In	Socketable	DPDT (2 Form C)	5 A	24 VAC	24 VDC	24 DC	Mechanical Relay	1 Sec	500 Hrs	Hand Dial	Input Voltage Trigger Signal	Programmable (Multi-Function)
Panasonic Industrial Automation Sales PM4HA-H-AC240V	11 pins	Plug In	Socketable	DPDT (2 Form C)	5 A				Mechanical Relay	1 Sec	500 Hrs	Hand Dial	Input Voltage Trigger Signal	Programmable (Multi-Function)	100 VAC	240 VAC
