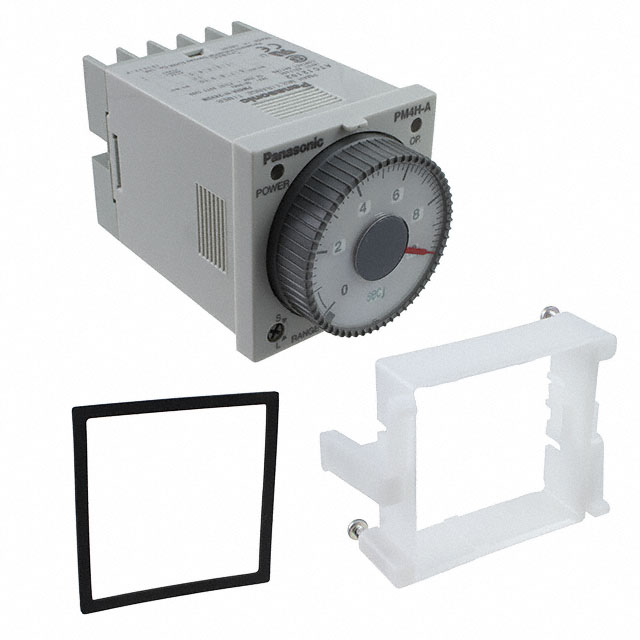

PM4HA-H-24VSW
ObsoletePanasonic Industrial Automation Sales
RELAY TIME DELAY 500HR 5A 250V
PM4HA-H-24VSW
ObsoletePanasonic Industrial Automation Sales
RELAY TIME DELAY 500HR 5A 250V
Description
General part information
PM4HA Series
Programmable (Multi-Function) Time Delay Relay DPDT (2 Form C) 1 Sec ~ 500 Hrs Delay 5A @ 250VAC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PM4HA-H-24VSW |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating (Current) | 5 A |
| Delay Time (Maximum) | 500 Hrs |
| Delay Time (Minimum) | 1 Sec |
| Function | Programmable (Multi-Function) |
| Mounting Type | Panel Mount |
| Relay Type | Mechanical Relay |
| Termination Style | Screw Terminal |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage, Trigger Signal |
| Voltage - Supply | 24 VDC |
| Voltage - Supply (Option 1) | 24 VAC |
| Voltage - Supply (Option 2) | 24 DC |
