222124

Active

Amphenol RF

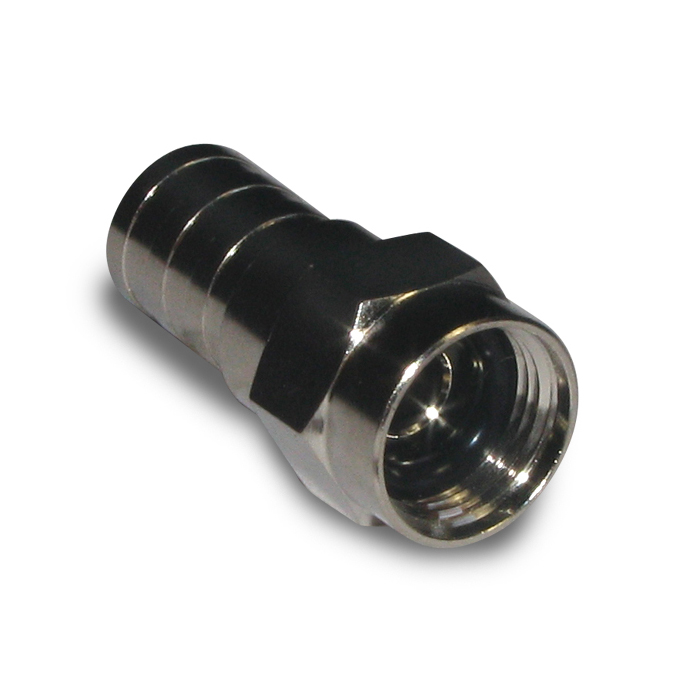

CONNECTOR: F; PLUG; MALE; CRIMPED; FOR CABLE; STRAIGHT; BRASS; 75Ω

Deep-Dive with AI

Search across all available documentation for this part.

222124

Active

Amphenol RF

CONNECTOR: F; PLUG; MALE; CRIMPED; FOR CABLE; STRAIGHT; BRASS; 75Ω

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	222124

Body Finish	Nickel
Body Material	Brass
Cable Group	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209
Connector Style	F Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp

2221 Series

Part	Housing Color	Center Contact Material	Frequency - Max [Max]	Body Finish	Number of Ports	Includes	Cable Group	Contact Termination	Shield Termination	Connector Style	Body Material	Dielectric Material	Connector Type	Impedance	Mating Cycles	Mounting Type	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Center Gender	Style	Convert From (Adapter End)	Mounting Feature	Adapter Series	Convert To (Adapter End)	Adapter Type	Conversion Type	Cable Group [Min]	Cable Group [Max]
Amphenol RF 222123	Silver	Brass	2 GHz	Nickel	1	1 Connector 1 Contact 1 Ferrule	143 212 54 6A 89248 9290 Belden 1152A RG-6	Solder	Crimp	F Type	Brass	Polyoxymethylene (POM) Acetal	Male Pin Plug	75 Ohms	500	Free Hanging (In-Line)	Gold
Amphenol RF 222183	Silver	Brass	2 GHz	Tin-Lead	1	1 Connector 1 Contact 1 Ferrule	RG-316 Double Braid	Solder	Crimp	F Type	Brass	Polytetrafluoroethylene (PTFE)	Male Pin Plug	75 Ohms	500	Free Hanging (In-Line)	Tin
Amphenol RF 222171	Silver	Brass	2 GHz	Nickel	1	1 Connector 1 Contact 1 Ferrule	Belden 1695A RG-6 Plenum	Crimp	Crimp	F Type	Brass	Polyoxymethylene (POM) Acetal	Male Pin Plug	75 Ohms	500	Free Hanging (In-Line)	Gold
Amphenol RF 222121		Brass	2 GHz	Nickel		1 Connector 1 Lockwasher 1 Nut					Zinc Die Cast	Polypropylene (PP)		75 Ohms			Tin	85 °C	-55 °C	Female to Female	Straight	F Jack Female Socket	Bulkhead	F to F	F Jack Female Socket	Jack to Jack	Same Series
Amphenol RF 222115	Silver	Brass	2 GHz	Tin-Lead	1	Connector Contact Insulator	RG-405 Semi Rigid	Solder	Solder	F Type	Brass	Polytetrafluoroethylene (PTFE)	Male Pin Plug	50 Ohms	500	Free Hanging (In-Line)	Tin											0.085 in	0.086 in
Amphenol RF 222119	Silver	Brass	2 GHz	Nickel	1	1 Connector 1 Contact 1 Ferrule	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Crimp	Crimp	F Type	Brass	Polyoxymethylene (POM) Acetal	Male Pin Plug	75 Ohms	500	Free Hanging (In-Line)	Gold
Amphenol RF 222124	Silver		2 GHz	Nickel	1		140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Crimp	Crimp	F Type	Brass		Male Pin Plug	75 Ohms	500	Free Hanging (In-Line)
Amphenol RF 222131	Silver	Brass	2 GHz	Nickel	1			Solder	Solder	F Type	Brass	Polyoxymethylene (POM) Acetal Polytetrafluoroethylene (PTFE)	Female Socket Receptacle	75 Ohms	500	Through Hole Right Angle	Tin
Amphenol RF 222196	Silver	Brass	2 GHz	Nickel	1	1 Connector 1 End Cap 1 Ferrule	Belden 9258 LMR-240	Solder	Crimp	F Type	Brass	Polytetrafluoroethylene (PTFE)	Male Pin Plug	75 Ohms	500	Free Hanging (In-Line) Right Angle	Gold
Amphenol RF 222114	Silver	Brass	1 GHz	Tin	1		179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	Solder	Crimp	F Type	Brass	Polypropylene (PP)	Female Socket Jack	75 Ohms	500		Tin						Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 7.88
Newark	Each	100	$ 8.52
		250	$ 8.26
TME	N/A	100	$ 11.93

Description

General part information

2221 Series

F Type Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
